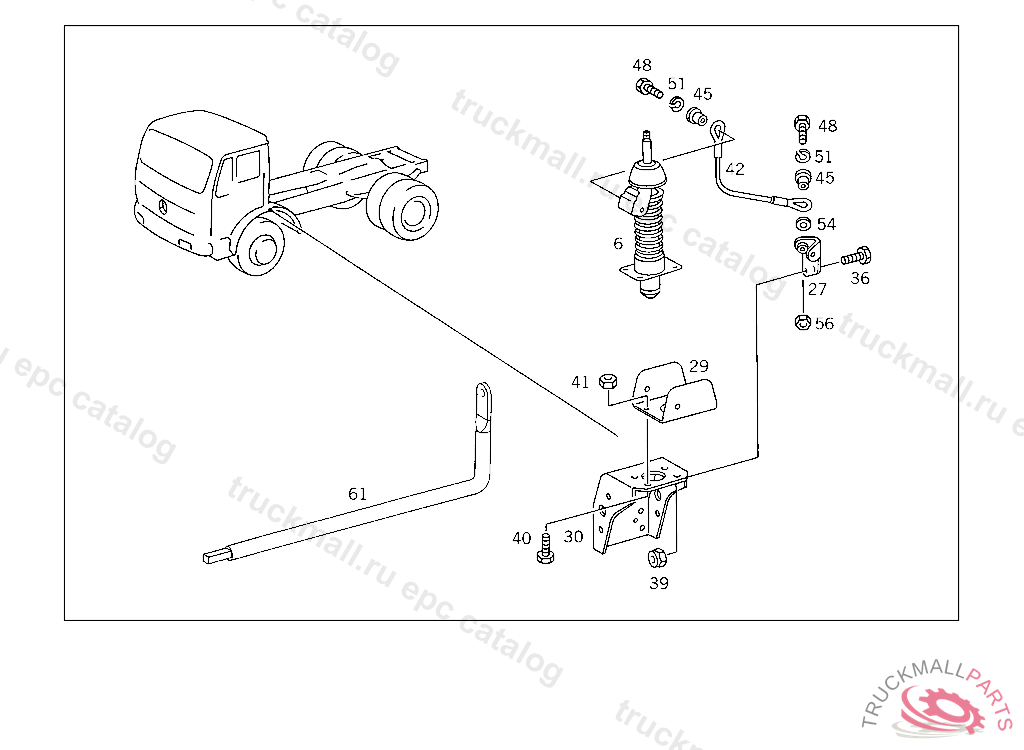

Поз.
Артикул
Описание
6
SHOCK ABSORBER CAB,REAR
6
SHOCK ABSORBER CAB,REAR
27
BRACKET RETAINING ROPE,RIGHT
27
BRACKET RETAINING ROPE,LEFT
29
BRACKET RETAINING ROPE
30
CONSOLE CAB SUSPENSION,REAR, TO BE ADAPTED DURING ASSEMBLY
30
CONSOLE , Replaced By: A3813171201
30
CONSOLE , Replaced By: A3813171201
36
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
36
SCREW , Replaced By: N308676012012
39
NUT SUPPORT TO SIDE MEMBER
40
SCREW BRACKET TO EXHAUST PIPE BRACKET
40
SCREW , Replaced By: N304017008024
41
NUT STRAP TO BRACKET
42
CABLE
45
BUSHING
48
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
48
SCREW REAR EXHAUST PIPE TO MUFFLER
51
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
54
WASHER BRACKET TO COVERING
54
WASHER , Replaced By: N009021010209
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
61
LEVER CAB LOCKING MECHANISM
999
FASTENER , Replaced By: A0008902389
