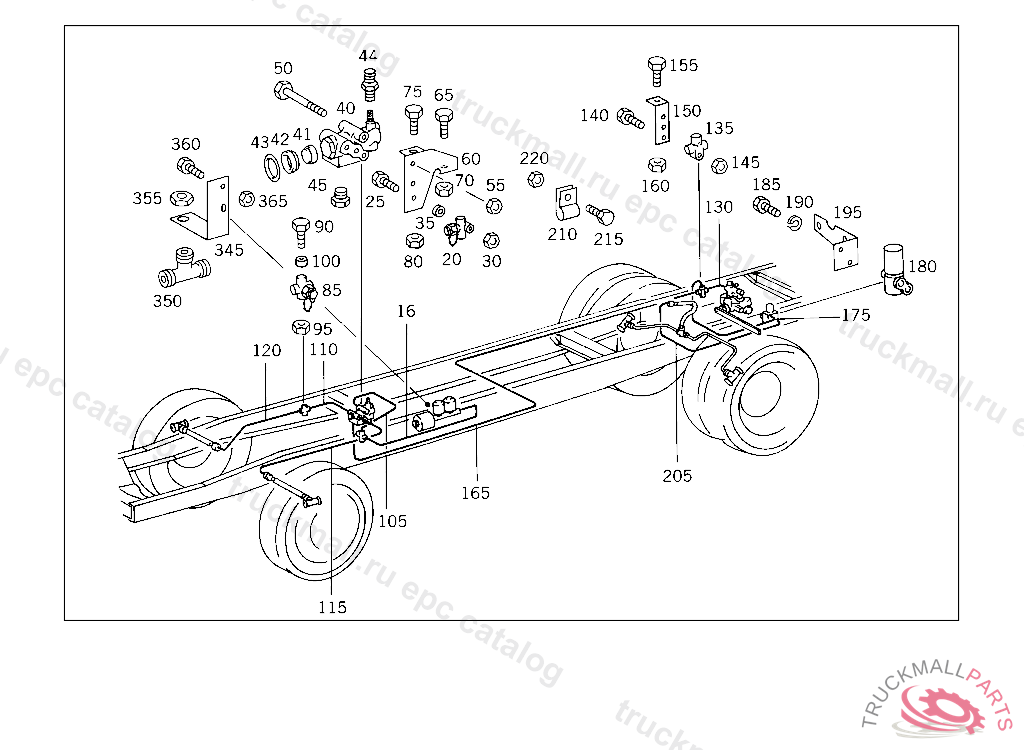

Поз.
Артикул
Описание
16
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 2600 MM
20
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
20
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
25
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
30
NUT , Replaced By: N913004008001
30
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
30
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
30
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
40
VALVE PRESSURE REGULATOR,4 478330
40
VALVE PRESSURE REGULATOR,4 478330
41
SEAL RINGTO 000 431 46 13,4 478330
42
SEAL RINGTO 000 431 46 13,4 478330
43
SEAL RING , Replaced By: A0019975945
43
SEAL RINGWABCO
44
VALVE , Replaced By: A3075530107
44
VALVE CLUTCH SLAVE CYLINDER
44
VALVE CLUTCH SLAVE CYLINDER
45
SCREW PLUG CONNECTION "1","2",4 478330
45
SCREW PLUG CONNECTION "1","2",4 478330
50
SCREW REAR AXLE REGULATING SOLENOID VALVE
55
NUT , Replaced By: N913004008001
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
55
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
BRACKET (REGULATING VALVE),4 478330
65
SCREW , Replaced By: N304017008034
70
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
70
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
NUT , Replaced By: N913004008001
75
SCREW END PIECE TO EXHAUST PIPE M 10X25
80
NUT STRAP TO BRACKET
80
NUT , Replaced By: N910113010000
85
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
85
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
90
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
NUT , Replaced By: N913004008001
100
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
105
LINE FROM TEST CONNECTION TO VALVE 400 MM,4 478330
110
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
115
LINE FROM VALVE TO BRAKE HOSE 1600 MM
120
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
130
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1" 750 MM,4 478330
130
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 600 MM
130
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 600 MM
135
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
135
DISTRIBUTOR REAR AXLE,4 478330
140
SCREW FITTING TO TRANSMISSION M8X32
145
NUT , Replaced By: N913004008001
145
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
145
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
145
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
150
BRACKET , Replaced By: A3604292940
150
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
155
SCREW , Replaced By: N304017008034
160
NUT , Replaced By: N913004008001
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
165
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
165
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
165
LINE , Replaced By: A0004296201, +001A0004280072
165
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
165
LINE FROM DISTRIBUTOR TO VALVE 4200 MM,4 478330
165
LINE FROM MASTER CYLINDER TO CONNECTOR 4400 MM
165
LINE FROM DISTRIBUTOR TO VALVE 5200 MM
165
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 4000 MM,4 478329
165
LINE FROM DISTRIBUTOR TO VALVE 4600 MM
165
LINE FROM DISTRIBUTOR TO CONTROL VALVE
175
LINE FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE 1100 MM
180
BRAKE PRESSURE REGULATOR REAR AXLE BRAKE CIRCUIT
180
BRAKE PRESSURE REGULATOR REAR AXLE BRAKE CIRCUIT
180
BRAKE PRESSURE REGULATOR REAR AXLE BRAKE CIRCUIT
185
SCREW , Replaced By: N304017008016
185
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
190
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
195
BRACKET BRAKE POWER REGULATOR
205
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1250 MM
210
CLAMP , Replaced By: N916016008200
210
CLAMP ,K 147121, Replaced By: N000000000319
210
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
215
SCREW COVER PLATE TO BRACKET
220
NUT , Replaced By: N913004006001
220
NUT PUMP TO BRACKET
345
BRACKET , Replaced By: A3934310840
345
BRACKET PRESSURE RELIEF VALVE
350
FITTING DISTRIBUTOR,4 709826
355
NUT BRACKET TO SIDE MEMBER
360
SCREW , Replaced By: N304017008040
360
SCREW BRACKET TO SIDE MEMBER
365
NUT , Replaced By: N913004008001
365
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
365
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
BLEEDER VALVE , 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
VALVE , Replaced By: A0004304881
999
METAL SPRING BELLOWS BEARING BRACKET TO REAR AXLE,K 006315
999
LEVER , Replaced By: A3854310239
999
TEST CONNECTION
999
LEVER TOOTHED
999
LEVER
999
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE
999
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BUSHING , Replaced By: N915062009000
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SPRING
999
VALVE (CHECK VALVE),4 281211
999
VALVE (CHECK VALVE),4 281211
999
FITTING LINE CONNECTION TO AIR RESERVOIR,4 314180
999
FITTING TWO-CIRCUIT BRAKE VALVE,CONNECTION: "21", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGTO 000 431 46 13,4 478330
999
SEAL RING BRAKE HOSE
999
LEVER , Replaced By: A3854310239
999
ELBOW FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
999
BRACKET , Replaced By: A3604292940
999
GROMMET ,5 585846
999
BRACKET METAL SPRING BELLOWS,4 235128
999
BRACKET OPERATING ROD,4 1880904 478329
999
LEVER , Replaced By: A6204310839
999
BRACKET LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET TEST CONNECTION,4 424733
999
BRACKET , Replaced By: A6514310240
999
BRACKET
999
LEVER , Replaced By: A3854310439
999
BRACKET
