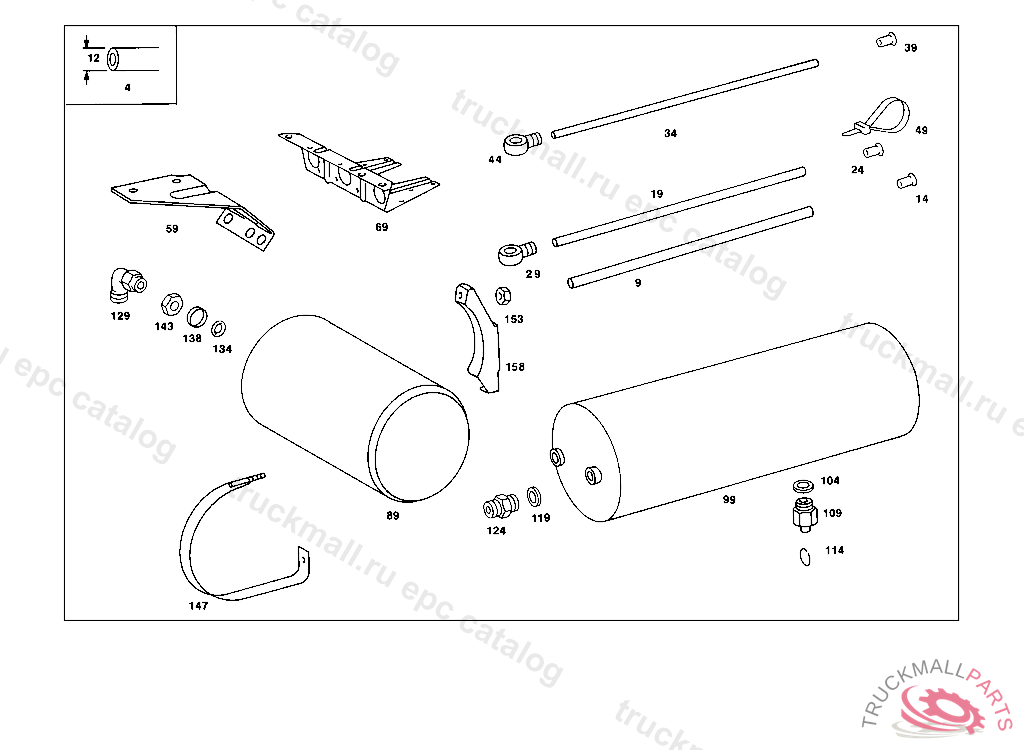

Поз.
Артикул
Описание
4
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
9
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
9
HOSE , Replaced By: A0009872827
14
BUSHING , Replaced By: N915062009000
14
SLEEVE LINE CONNECTION
19
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
SLEEVE , Replaced By: N915062006000
24
SLEEVE LINE CONNECTION
29
BANJO UNION , Replaced By: N915052006005
29
BANJO UNION HEATING CONNECTION,K 169122
29
BANJO UNION HEATING CONNECTION,K 169122
34
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
34
PLASTIC PIPE RISING PIPE 4X6 MM
39
SLEEVE LEAK LINE
39
BUSHING , Replaced By: N915062004000
44
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
49
LOOM TIE LINE MOUNTING
49
LOOM TIE LINE MOUNTING 280 MM
59
BRACKET AT FRAME
69
SUPPORT BRAKE LINE COUPLINGS
69
SUPPORT , Replaced By: A6214320116
69
SUPPORT , Replaced By: A3874321616
69
SUPPORT , Replaced By: A3874320916
89
RESERVOIR COMPRESSED AIR,5 295503
89
RESERVOIR , Replaced By: A0034321201
99
RESERVOIR40L,246 MM,8.5 BAR
99
RESERVOIR , Replaced By: A0034322301
99
RESERVOIR30L,246 MM,12.5 BAR
104
SEAL RING LINE CONNECTION
109
VALVE DRAIN, Replaced By: A0004322407
109
VALVE DRAIN, Replaced By: A0004322107
109
VALVE. DRAIN VALVE DRAIN
109
VALVE. DRAIN VALVE DRAIN
109
VALVE DRAIN, Replaced By: A0004322107
114
RING , Replaced By: A0005830296
114
RING DRAIN VALVE TO 000 432 08 07, NOT USED
119
SEAL RING LINE CONNECTION
119
SEAL RING LINE CONNECTION
124
FITTING , Replaced By: A0029971172
124
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
124
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
124
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
124
FITTING , Replaced By: A0009907771
129
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
129
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
129
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
134
O-RING CHECK VALVE TO AIR RESERVOIR
134
O-RING CHECK VALVE TO AIR RESERVOIR
134
O-RING CHECK VALVE TO AIR RESERVOIR
138
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
138
THRUST RING CHECK VALVE TO AIR RESERVOIR
138
THRUST RING CHECK VALVE TO AIR RESERVOIR
138
THRUST RING CHECK VALVE TO AIR RESERVOIR
143
NUT CHECK VALVE TO AIR RESERVOIR
143
NUT CHECK VALVE TO AIR RESERVOIR
143
NUT CHECK VALVE TO AIR RESERVOIR
147
STRAP AIR RESERVOIR TO BRACKET
153
NUT , Replaced By: N304032010002
153
NUT
158
BRACKET AIR RESERVOIR TO FRAME
999
REPAIR KIT
999
RESERVOIR , Replaced By: A0034322301
999
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
999
RESERVOIR , Replaced By: A0034321801
999
RESERVOIR , Replaced By: A0014327501
999
RESERVOIR , EXHAUST STOCK OF OLD PARTS WITH 10/20 UP TO CHASSIS 4 270413,WITH 50/60 UP TO CHASSIS 4 270289, Replaced By: A0004328001
999
RESERVOIR60 L
999
REPAIR KITTO 000 430 57 81,43 81,WABCO,0020,0120
999
T-FITTING CONNECTION: 12, 10/20 FROM CHASSIS 4 270414,50/60 FROM CHASSIS 4 270290
999
HANDLETO 000 430 85 81,WABCO,004 0
999
PLUG
999
GASKET KIT PARKING BRAKE VALVE GRAU
999
REPAIR KIT ,4 412020
999
REPAIR KIT , Replaced By: A0024301660
999
REPAIR KITTO 000 430 86 81,WABCO
999
FITTING AT FOUR-CIRCUIT PROTECTIVE VALVE,4 175812
999
BRACKET , Replaced By: A3874292140
999
BRACKET , Replaced By: A6454310740
999
BRACKET , Replaced By: A3894300110
999
BRACKET ,4 667210
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3894300010
999
BRACKET FUEL LINE TO BELL HOUSING
999
SCREW
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008021
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
999
NUT STRAP TO BRACKET
999
NUT END PIECE TO EXHAUST PIPE
999
NUT TWO-WAY VALVE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
