Поз.
Артикул
Описание

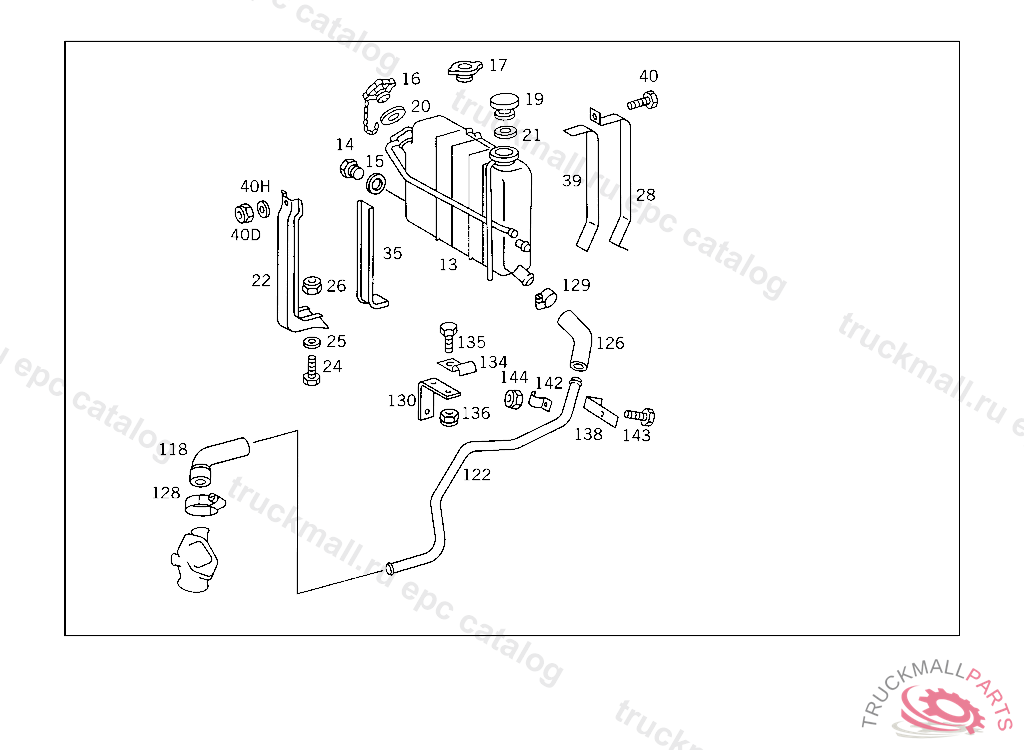

13
TANK BEHIND CAB, WITH 387.134 ON VEHICLES HAVING NO MERCEDES BENZ CAB UP TO CHASSIS 4 3673984 661211
13
TANK AT CAB REAR PANEL, 415 5 014668 416 5 000515 417 4 972023
14
SCREW PLUG , Replaced By: N007604014110
14
SCREW PLUG FUEL TANK
15
SEAL RING FROM FUEL TANK TO FUEL TANK
16
RADIATOR CAP FILLER NECK
17
RADIATOR CAP
20
GASKET O.D., 52 MM
21
GASKET O.D., 37 MM
22
BRACKET EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
22
BRACKET EXPANSION TANK
24
SCREW BRACKET TO SIDE MEMBER
25
WASHER BRACKET TO RIGHT FENDER, 415 5 014668 416 5 000515 417 4 972023
26
NUT STRAP TO BRACKET
26
NUT , Replaced By: N910113010000
28
BRACKET EXPANSION TANK
35
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
39
SHIM STRAP, 415 5 014668 416 5 000515 417 4 972023
40
SCREW END PIECE TO EXHAUST PIPE M 10X25
118
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
122
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK
126
HOSE FROM WATER PUMP TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023 FOR USE WITH SHORT MERCEDES-BENZ CAB
128
CLAMP , Replaced By: N000000000670
128
CLAMP
128
CLAMP
129
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
129
CLAMP25-40X13 MM
130
BRACKET COOLING WATER LINE TO FRAME
134
CLAMP COOLING WATER LINE TO BRACKET,5 022370
135
SCREW , Replaced By: N304017008016
135
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
136
NUT , Replaced By: N913004008001
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
138
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
142
CLAMP COOLING WATER LINE TO BRACKET,5 022370
143
SCREW , Replaced By: N304017008021
143
SCREW PIPE CLAMP
144
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
144
NUT , Replaced By: N913004008001
999
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
999
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
999
RADIATOR , Replaced By: A0005014601
999
RADIATOR CAP CENTRAL
999
RADIATOR , Replaced By: A0005014601
999
RADIATOR , Replaced By: A0005014601
999
CLAMP , Replaced By: N916017011000
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
SCREW PLUG , Replaced By: N007604014101
999
CLAMP , Replaced By: A3609951201
999
CLAMP , Replaced By: A3609950601
999
HOSE FROM HEATING LINE TO HEATING LINE
999
TANK , Replaced By: A3815001649
999
TANK , Replaced By: A3815000749
999
LINE , Replaced By: A3835000072
999
RADIATOR , Replaced By: A0005014601
999
RADIATOR , Replaced By: A0005014601
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 434577, Replaced By: A3875012982
999
HOSE , Replaced By: A3875012882
999
BRACKET , Replaced By: A6454310740
999
HOSE , Replaced By: A3635060135
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET , NOT USED
999
BRACKET FUEL LINE TO BELL HOUSING
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW PLUG WATER DRAIN
999
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
CLAMP , Replaced By: N916017011001
