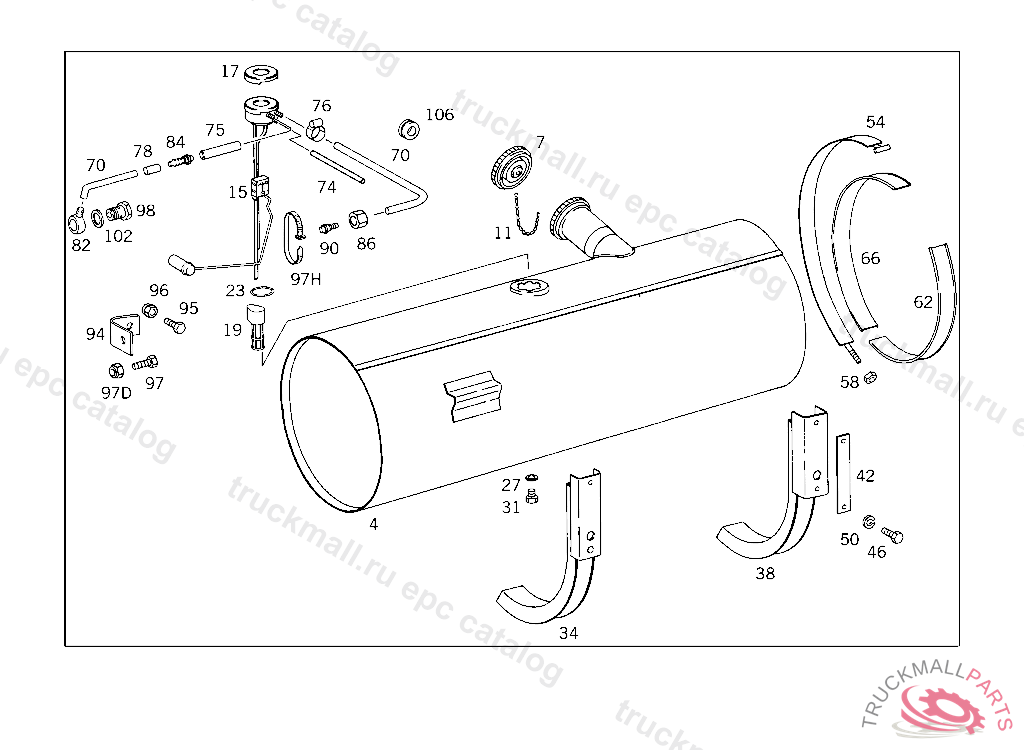

Поз.
Артикул
Описание
4
FUEL TANK200 L
4
FUEL TANK , Replaced By: A3554700101
4
FUEL TANK , Replaced By: A3874701301
4
FUEL TANK , Replaced By: A3874701501
7
FILLER CAP , Replaced By: A0004700305
7
FILLER CAP
7
FILLER CAP , Replaced By: A0004700305
7
FILLER CAP , Replaced By: A0004717930
7
FILLER CAP , Replaced By: A0004700305
11
CHAIN FILLER CAP
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT , Replaced By: A0085428017
15
SENDER UNIT , Replaced By: A0055423817
17
EXPANSION PLUG
19
FUEL STRAINER FUEL TANK,K 169122
23
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
27
SEAL RING FUEL LINE TO FEED PUMP
31
SCREW PLUG FUEL TANK
31
SCREW PLUG , Replaced By: N007604014110
34
SUPPORT FUEL TANK TO FRAME
42
SHIM SUPPORT TO SIDE MEMBER
46
SCREW BRACKET TO CAB CONSOLE,K 035197
46
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
50
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
54
STRAP FUEL TANK TO CONSOLE,5 149420
54
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
58
NUT STRAP TO SUPPORT
58
NUT STRAP TO SUPPORT,5 149419
62
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
66
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
70
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
74
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
75
HOSE LEAK LINE
76
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
76
CLAMP , Replaced By: N000000000665
78
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
82
BANJO UNION , Replaced By: N000000000363
84
SLEEVE FEED
84
CONNECTOR RIGHT,177-LITER
86
UNION NUT FUEL HOSE
90
FITTING RETURN
94
BRACKET FUEL LINE TO BELL HOUSING
94
BRACKET FUEL LINE TO BELL HOUSING
94
BRACKET , Replaced By: A6454310740
95
SCREW BRACKET TO CROSS CONNECTION STRUT
95
SCREW , Replaced By: N304017008034
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
NUT , Replaced By: N913004008001
97
SCREW END PIECE TO EXHAUST PIPE M 10X25
98
HOLLOW SCREW FUEL LINE TO FEED PUMP
98
HOLLOW SCREW , Replaced By: N915036010108
102
SEAL RING FUEL LINE TO FEED PUMP
106
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
106
GROMMET LINE PASSAGE AT SIDE MEMBER
999
FUEL STRAINER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 261141, Replaced By: A0004710235
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
SENDER UNIT , Replaced By: A0045423717, +001A0004710235, +001A3054760126, +002A3879900078
999
CLIP LEAK LINE
999
SENDER UNIT ,4 261141, Replaced By: A0045423717, +001A0004710235, +002A3054760126, +001A3879900078
999
SEAL RING
999
BRACKET , Replaced By: A6205240340
999
SUPPORT , Replaced By: A3874703342
999
SUPPORT , Replaced By: A3874703342
999
BRACKET FUEL LINES TO TRANSMISSION
999
NUT STRAP TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
