Mercedes A3639950065 - ХОМУТ

1926 A 389.115

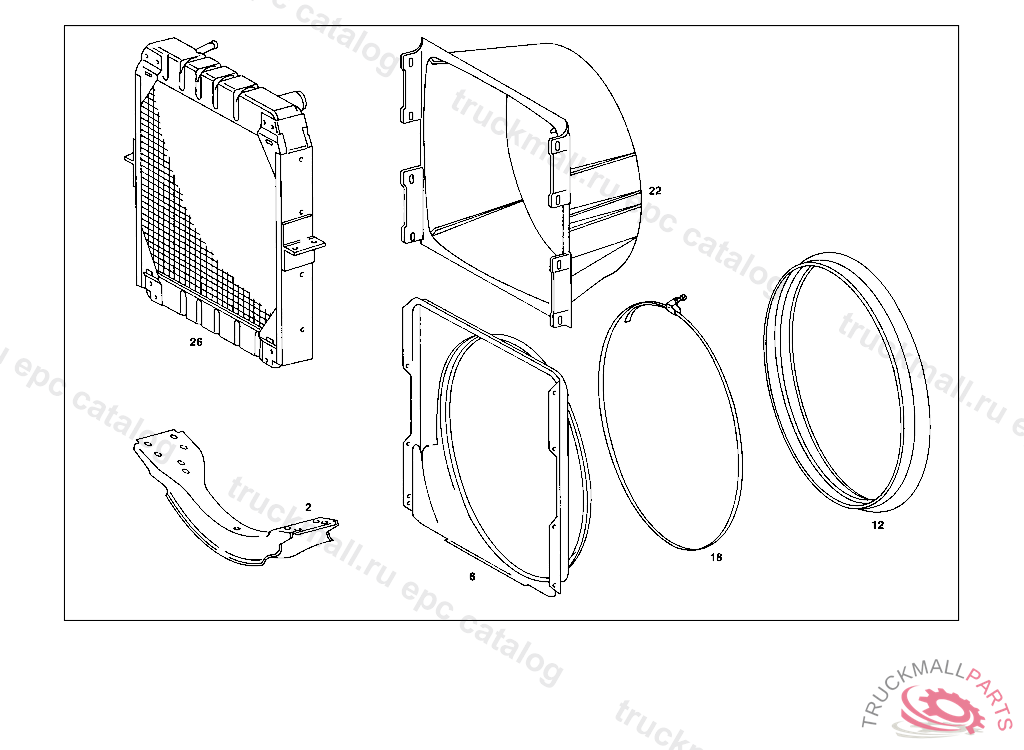

50 RADIATOR - 001 CHASSIS PARTS USED FOR ENGINE P.T.O. TOWARDS THE FRONT WITH V-BELT

Поз.
Артикул
Описание
2
A3833120105
ENGINE CROSS MEMBER
6
A3875052330
AIR BAFFLE
6
A3875052230
AIR BAFFLE RADIATOR, 415 5 014668 416 5 000515 417 4 972023
6
A3875001416
AIR BAFFLE
6
A3875051630
AIR BAFFLE FAN SHROUD
12
A3635050180
BOOT FAN SHROUD TO FAN RING
18
A3639950065
CLAMP FAN SHROUD TO FAN RING
22
A3835051055
FAN SHROUD
22
A3855050655
FAN SHROUD
22
A3835000455
FAN SHROUD
22
A3835050455
FAN SHROUD
26
A0005014101
RADIATOR ,4 706542
999
A3855040184
SHIM RUBBER MOUNTING TO BRACKET
999
A3875000216
AIR BAFFLE
999
A3875000516
AIR BAFFLE RADIATOR,4 367399
999
A3875051416
ROD
999
N000933010238
SCREW , Replaced By: N304017010028
999
N304017010028
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
