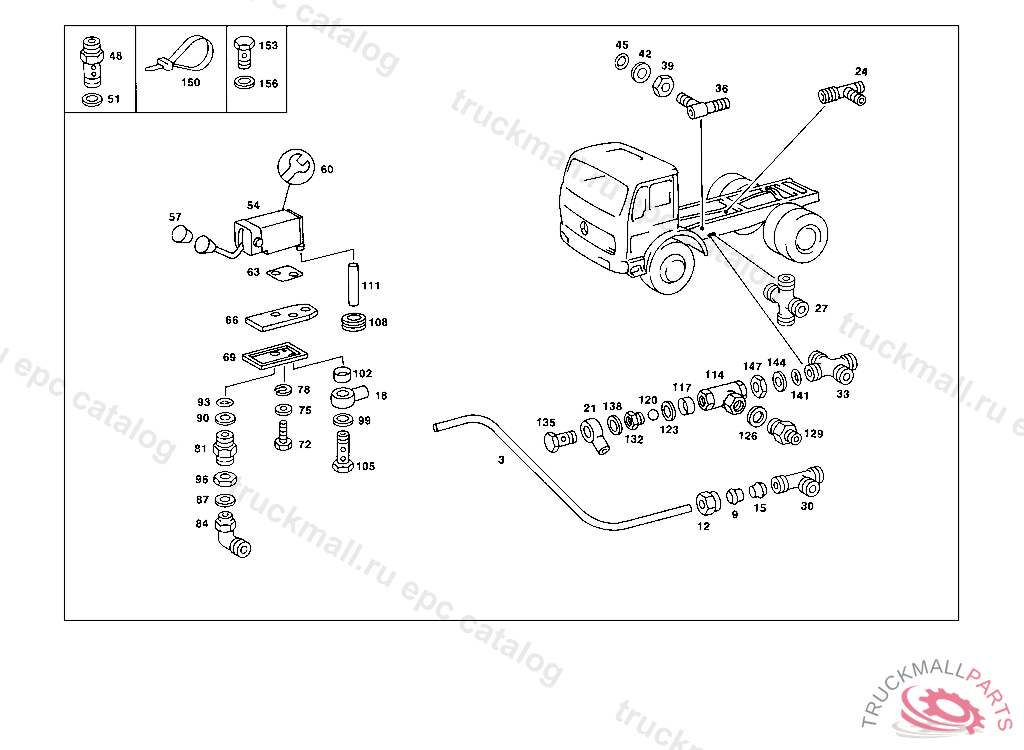

Поз.
Артикул
Описание
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
9
GLAND LINE CONNECTION
12
UNION NUT , Replaced By: N915017008100
12
UNION NUT LINE CONNECTION
15
SLEEVE LINE CONNECTION
15
SLEEVE LINE CONNECTION
15
SLEEVE LINE CONNECTION
18
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
18
BANJO UNION HEATING CONNECTION,K 169122
21
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
24
FITTING SPRING LOAD ACCUMULATOR CYLINDER,4 412126
27
CROSS FITTING ,4 314179
30
FITTING LINE CONNECTION TO AIR RESERVOIR,4 314180
33
FITTING SPRING LOAD ACCUMULATOR CYLINDER,4 4121264 691315
36
FITTING RELAY VALVE,CONNECTION "20",LEFT
39
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
42
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
45
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
48
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
51
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
54
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034301781
57
HANDLETO 000 430 78 71
60
REPAIR KIT , Replaced By: A0014300760
60
REPAIR KIT , Replaced By: A0014308760
60
REPAIR KIT , Replaced By: A0034305381
60
REPAIR KIT EXTENSIBLE BRAKE VALVE
63
SHIM EXTENSIBLE BRAKE VALVE TO CAB,4 665938
66
SHIM EXTENSIBLE BRAKE VALVE TO CAB,4 3141804 665938
69
SHIM HAND BRAKE VALVE
72
SCREW , Replaced By: N304017006020
72
SCREW LICENSE PLATE TO BRACKET
75
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
75
WASHER COMPRESSED AIR LINE TO BRACKET
78
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
81
FITTING HYDRAULIC LINE TO BRACKET,K 130132
84
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
87
SEAL RING FUEL LINE TO FEED PUMP
90
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
93
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
96
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
99
SEAL RING FUEL LINE TO FEED PUMP
102
SPACER TUBE AT BRAKE VALVE, NOT USED
102
SPACER TUBE , Replaced By: A3124231453
105
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
108
GROMMET HAND BRAKE VALVE BLEEDING,4 665938
111
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
114
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
114
VALVE TWO-WAY VOSS
114
VALVE TWO-WAY
114
VALVE TWO-WAY
117
VALVE , Replaced By: A0004290782
117
VALVE , Replaced By: A0004291182
117
VALVE BODYTO 002 429 95 44
117
VALVE BODYTO 002 429 95 44
120
BALLTO 003 429 22 44
123
GASKETTO 003 429 22 44
126
SEAL RING LINE CONNECTION
129
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
129
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
132
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
135
HOLLOW SCREW HEATING CONNECTION
138
SEAL RING LINE CONNECTION
141
O-RING CHECK VALVE TO AIR RESERVOIR
141
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
144
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
144
THRUST RING CHECK VALVE TO AIR RESERVOIR
144
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
147
NUT CHECK VALVE TO AIR RESERVOIR
147
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
150
LOOM TIE LINE MOUNTING 280 MM
150
LOOM TIE LINE MOUNTING
153
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
156
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
999
BANJO UNION , Replaced By: N915052006013
999
BANJO UNION EXTENSIBLE BRAKE VALVE,CONNECTION: "20"
999
FITTING , Replaced By: A0009970171
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
