Поз.
Артикул
Описание

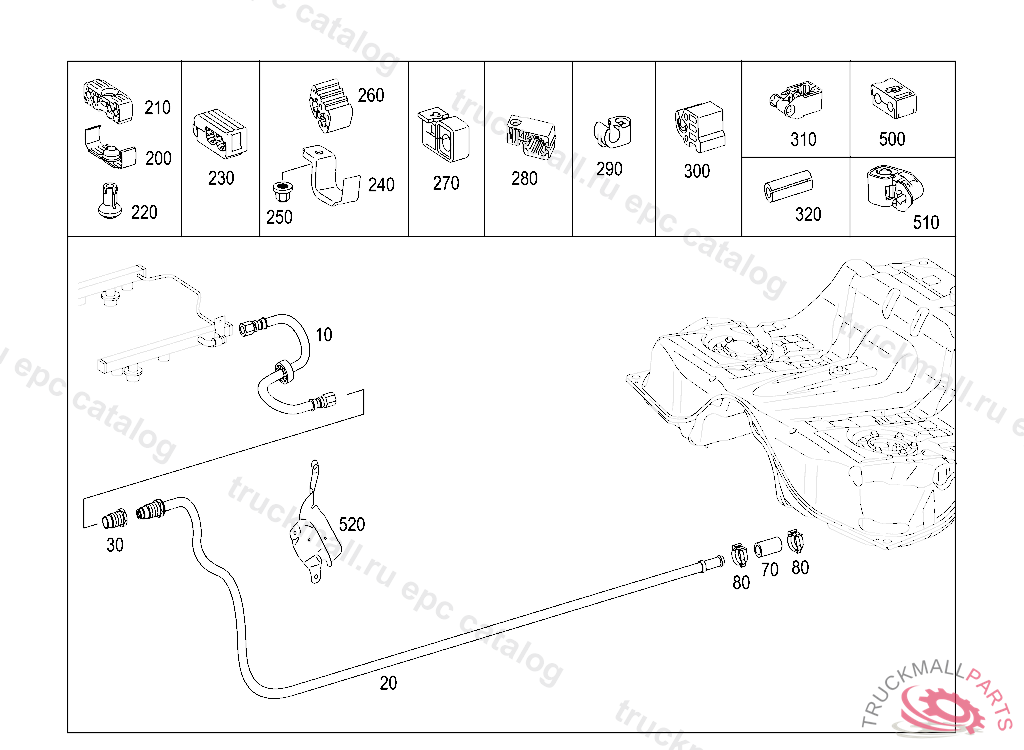

10
FUEL HOSE FEED
20
FUEL LINE FEED LINE, FROM ENGINE TO TANK, A 33384920100212 L 00636520100131
20
FUEL LINE FEED LINE, FROM ENGINE TO TANK, A 33385020100212 L 00636620100131
30
UNION SCREW ,B 688751
70
HOSE FROM TANK TO FEED LINE
80
HOSE CLAMP HOSE ATTACHMENT
200
CLAMP FUEL LINES TO MAIN FLOOR
210
RETAINING PART FUEL LINES
220
CLAMPING ELEMENT FLOOR BELOW REAR SEAT
230
LINE HOLDER FASTENING, RIGHT FRONT WHEEL BRAKELINEAT FIREWALL
240
FASTENING CLAMP FUEL LINE TO SIDE MEMBER
250
NUT COVERING TO CAB FIRE WALL
260
SPACER FUEL LINE TO SIDE MEMBER
270
LINE HOLDER FUEL LINE MOUNTING
280
BRACKET ATTACHMENT OF VENT LINE
290
LINE HOLDER5 MM
300
CLAMP FUEL LINE TO SIDE MEMBER,B 926099
310
LINE HOLDER VENT LINE MOUNTING TO RIGHT REAR WHEELHOUSE, A 02430720090731
320
HOSE INSULATING PLASTIC TUBE PURGE LINE
500
LINE HOLDER FUEL LINE
510
LINE HOLDER FUEL LINE MOUNTING
520
PROTECTIVE PLATE AT PARTITION PANEL, A 21174220080131
520
PROTECTIVE PLATE AT PARTITION PANEL
