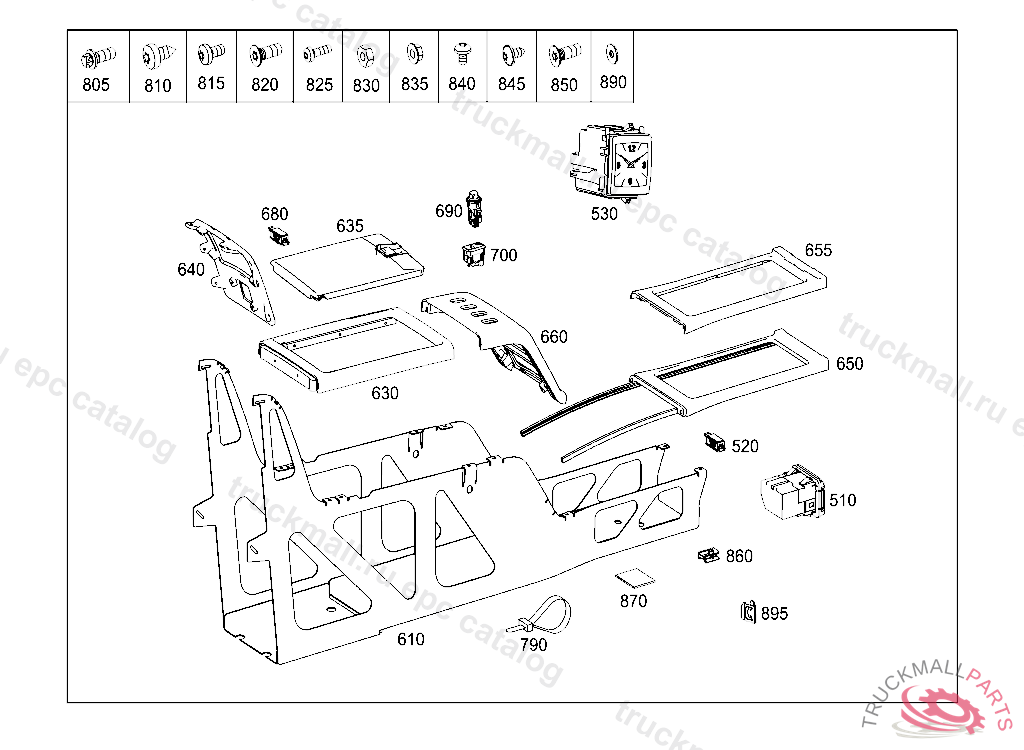

Поз.
Артикул
Описание
510
SOCKET-OUTLET CENTRAL CONSOLE REAR 115V
520
LAMP CENTRAL CONSOLE REAR LED
530
CLOCK IN INSTRUMENT PANEL CENTER
610
STOWAGE BOX BASIC CARRIER
630
COVER ARMREST
630
COVER ARMREST
630
COVER ARMREST
635
COVER FOR COOKER
640
COVER TOP
650
ORNAMENTAL FRAME
650
ORNAMENTAL FRAME
650
ORNAMENTAL FRAME
655
ORNAMENTAL FRAME
655
ORNAMENTAL FRAME
660
COVER
660
COVER
680
LAMP CENTRAL CONSOLE REAR LED
690
CIGAR LIGHTER , J 48100520010301801
700
PUSH-BUTTON SWITCHSIH
700
PUSH-BUTTON SWITCH REAR ENTERTAINMENT
700
PUSH-BUTTON SWITCH INTERCOM SYSTEM AT LEFT
700
PUSH-BUTTON SWITCH HIGH
700
PUSH-BUTTON SWITCH MONITOR
700
PUSH-BUTTON SWITCH RIGHT FOLDING SEAT
700
PUSH-BUTTON SWITCH DIMMING
700
PUSH-BUTTON SWITCH INTERCOM SYSTEM
790
CABLE TIE310X5MM
805
HEXALOBULAR BOLTM8X20
810
SHEET METAL SCREW BRACKET TO SUPPORT
810
TAPPING SCREW2.9X6.5
815
SCREW FUSE BOX TO SIDE MEMBER,5 097182
815
HEXALOBULAR BOLT LIGHT SWITCH M4X6
820
SCREW ATTACHMENT,RAIL M5X14
825
HEXALOBULAR BOLT OPERATING UNIT M3X10
830
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
835
NUT , Replaced By: N913023006001
835
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
835
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
840
BOLT RIGHT SEAT M5X8
845
TAPPING SCREW BRACKET TO SUPPORT
850
SCREWM4X10
860
NUT LOCK TO COVER
870
PAD , Replaced By: A0019832310
870
BASE , Replaced By: A0009838910
890
WASHER4MM
895
CLIP PANELLING TO PILLAR
999
CONSOLE STORAGE BOX
999
CONSOLE STORAGE BOX
999
CONSOLE STORAGE BOX
999
STORAGE TRAY
