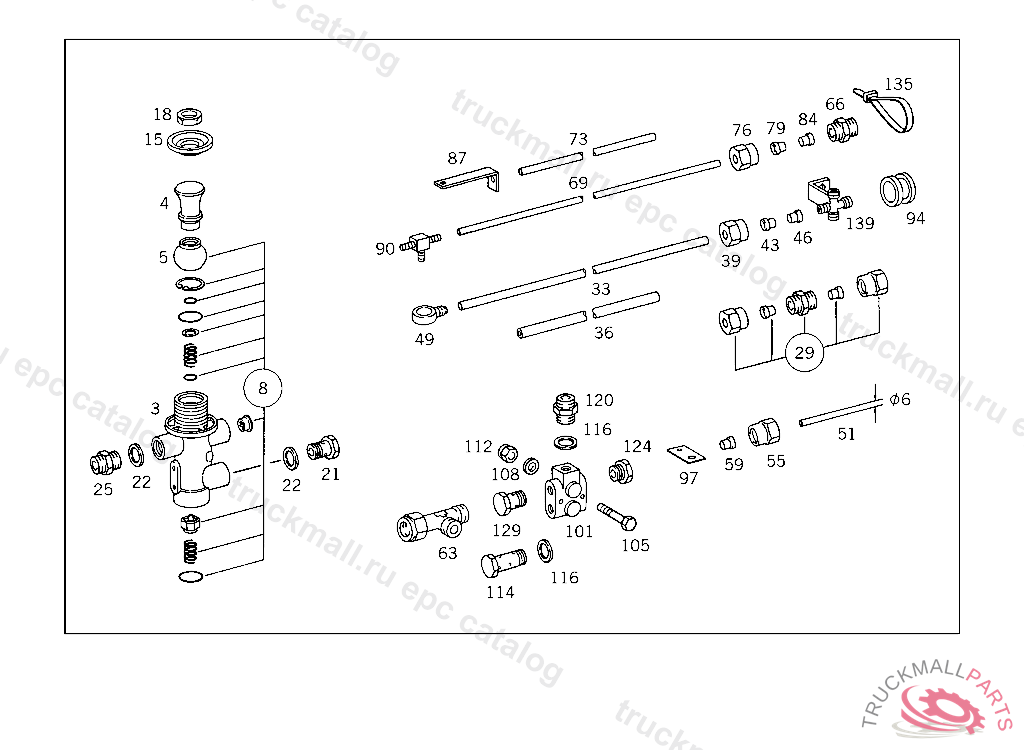

Поз.
Артикул
Описание
3
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
3
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342101
3
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
3
VALVE , Replaced By: A0004342301
3
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342301
4
HANDLETO 000 434 23 01
5
CUP 3/2-WAY VALVE WABCO
5
CUPTO 000 434 10 01
5
CUP , Replaced By: A0004340486
8
REPAIR KIT 3/2-WAY VALVE WABCO
15
SEAL RING VALVE TO CAB,4 278267
18
NUT SUCTION LINE TO OIL PUMP
21
HOLLOW SCREW HEATING CONNECTION
22
SEAL RING LINE CONNECTION
25
FITTING LINE CONNECTION, Replaced By: N000000006446
25
FITTING , Replaced By: A0019972572
29
TS DOUBLE FITTING SOLENOID VALVE
29
FITTING , Replaced By: A0029906071
29
FITTING , Replaced By: A0039979072
33
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
36
INSULATING HOSE RED, ORDER BY THE METER
39
UNION NUT LINE CONNECTION
43
GLAND LINE CONNECTION
46
SLEEVE LINE CONNECTION
46
SLEEVE , Replaced By: N915062006000
49
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
49
BANJO UNION , Replaced By: N915052006013
51
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
51
LINE , Replaced By: A0004296201
55
UNION NUT
59
SEAL CONE
59
GLAND , Replaced By: A0019901667
63
T-FITTING EXHAUST-BRAKE POWER CYLINDER
66
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
69
PLASTIC PIPE RISING PIPE 4X6 MM
69
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
73
INSULATING HOSE8X0,01 MM
76
UNION NUT
79
SEAL CONE
79
GLAND , Replaced By: A0019901667
84
SLEEVE LEAK LINE
84
BUSHING , Replaced By: N915062004000
87
ANGLE LINE MOUNTING
90
DISTRIBUTOR HOSE WIDTH, 6 MM
94
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
97
BRACKET LINE MOUNTING
101
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
105
SCREW APPARATUS PLATE M 6X45
105
SCREW , Replaced By: N304017006027
108
WASHER COMPRESSED AIR LINE TO BRACKET
108
WASHER , Replaced By: N009021006208
112
NUT PUMP TO BRACKET
112
NUT , Replaced By: N913004006001
114
HOLLOW SCREW LINE CONNECTION
116
SEAL RING LINE CONNECTION
124
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
124
SCREW PLUG , Replaced By: N000908012009
129
HOLLOW SCREW FUEL LINE TO FEED PUMP
129
HOLLOW SCREW , Replaced By: N915036010108
135
LOOM TIE LINE MOUNTING 280 MM
135
LOOM TIE LINE MOUNTING
139
BRACKET ,4 375135
999
STRAINERTO 000 434 21 01
999
BUSHINGTO 000 434 10 01
999
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
999
HOLLOW SCREW , Replaced By: N915047008100
999
BUSHING , Replaced By: N915062004000
999
SPRINGTO 000 434 21 01
999
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 427
999
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 428
999
T-FITTING EXHAUST BRAKE LINE CONNECTION
999
FITTING , Replaced By: N915059004000
999
LOOM TIE , Replaced By: A0019978390
999
LOOM TIE , Replaced By: A0019978490
999
LOOM TIE , Replaced By: A0019978490
999
REPAIR KIT 3/2-WAY VALVE BOSCH
999
LOOM TIE , Replaced By: A0019978490
999
LOOM TIE BRAKE LINE MOUNTING
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
999
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SPRING WASHER AT CAB FLOOR
999
HOSE LEAK LINE, ORDER BY THE METER
999
FITTING LINE CONNECTION TO FIRE WALL,5 726664
