Главная
›
Mercedes
›
TRUCK
›
L 1619
›
394.012
›

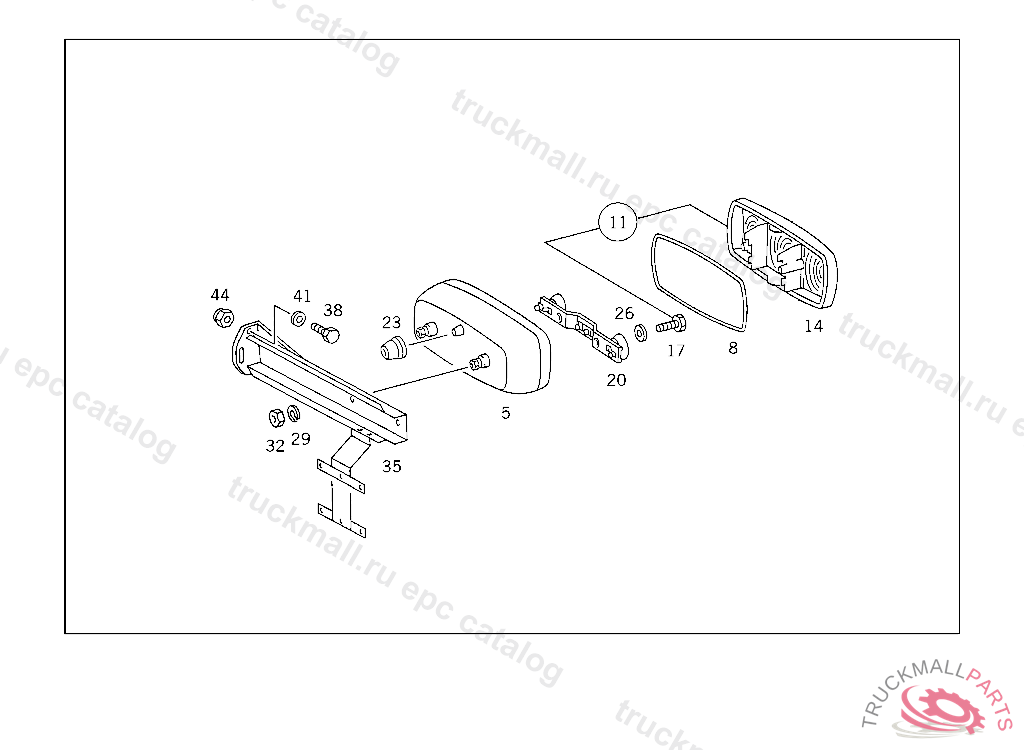

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›
540 TAIL LAMP
Mercedes N000127008203 -
L 1619 394.012
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 540 TAIL LAMP
Поз.
Артикул
Описание
5
A3515447203
TAIL LAMP RIGHT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
5
A3515447103
TAIL LAMP LEFT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
8
A0005447580
GASKETR & S,4 300928
11
A3515447090
LENS WITH SCREWS
14
A0015444590
LENS , Replaced By: A0015445990
17
A3515447070
STUD TAIL LAMP TO BRACKET
20
A3515447038
BRACKET
23
A0019971581
GROMMET
26
A0005440476
WASHER ,4 300928
26
A0019901940
WASHER ,4 300928
29
N000127008203
LOCK WASHER TAIL LAMP TO BRACKET
32
N000934008010
NUT , Replaced By: N304032008006
35
A3845207541
BRACKET RIGHT
35
A3925207041
BRACKET LEFT TAIL LAMP
38
N000961014100
SCREW BRACKET TO SIDE MEMBER
41
N000125015012
WASHER
44
N913004014004
NUT BRACKET TO BATTERY CASE
999
A3925207141
BRACKET LEFT TAIL LAMP, NOT USED
