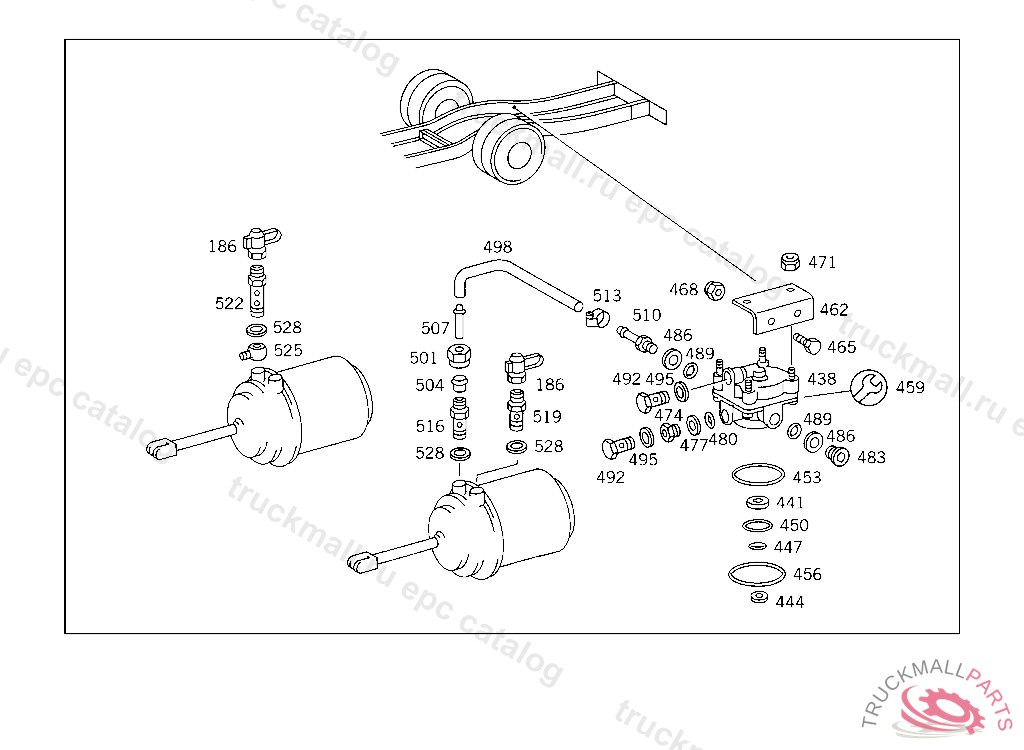

Поз.
Артикул
Описание
186
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
438
VALVE (RELAY VALVE),PARKING BRAKE WABCO,ZAN 493/89
438
VALVE (RELAY VALVE) WABCO
438
VALVE (RELAY VALVE) GRAU
438
VALVE (RELAY VALVE) BOSCH
438
VALVE (RELAY VALVE) KNORR
441
VALVE SEATGRAU
444
GASKET34X2X6 MM,GRAU
447
SEAL RING22.3X2.4 MM,GRAU
450
SEAL RING28X2 MM,GRAU
453
SEAL RINGTO 000 429 28 95,GRAU
456
SEAL RING86X2 MM,GRAU
459
REPAIR KITKNORR
459
REPAIR KITTO 002 429 92 44,ZAN 493/89
459
VALVEBOSCH
459
REPAIR KITWABCO
459
REPAIR KIT , Replaced By: A0004201071
459
REPAIR KIT , Replaced By: A0004301109
459
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
459
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
462
BRACKET RELAY VALVE,5 484806
465
SCREW , Replaced By: N304017010002
468
NUT , Replaced By: N910113010000
471
NUT , Replaced By: N913004008001
474
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
477
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
480
O-RING CHECK VALVE TO AIR RESERVOIR
483
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
486
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
489
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
492
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
495
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
498
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
501
UNION NUT LINE CONNECTION, Replaced By: N000000006239
504
GLAND , Replaced By: A0019901967
507
FITTING DIAPHRAGM CYLINDER,CONNECTION:
510
FITTING DIAPHRAGM CYLINDER,CONNECTION:
513
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
513
CLAMP HOSE TO FITTING AND TO OIL TANK
516
HOLLOW SCREW FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "1"
519
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
522
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
525
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
528
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
REPAIR KITTO 000 429 26 95,KNORR
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
PLUG TO PLUG THE BORES
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
