Поз.
Артикул
Описание

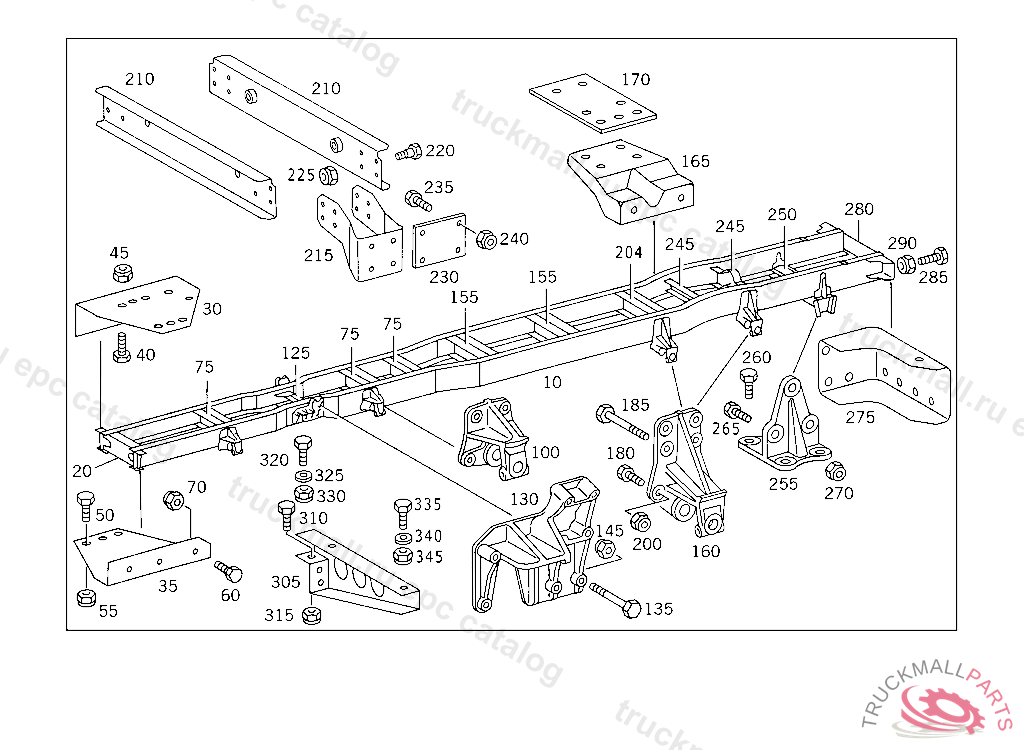

10
FRAME
20
CROSS MEMBER FRONT, 10/20 6 900240 50/60 5 332104
20
CROSS MEMBER FRONT, 10/20 6 900239 50/60 5 332103
30
GUSSET PLATE LEFT TOP, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE RIGHT TOP, 10/20 6 900239 50/60 5 332103
30
GUSSET PLATE RIGHT TOP, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE RIGHT TOP, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE LEFT TOP, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE LEFT TOP, 10/20 6 900239 50/60 5 332103
35
GUSSET PLATE LEFT BOTTOM, 10/20 6 900239 50/60 5 332103
35
GUSSET PLATE LEFT BOTTOM, 10/20 6 900240 50/60 5 332104
35
GUSSET PLATE RIGHT BOTTOM, 10/20 6 900239 50/60 5 332103
35
GUSSET PLATE RIGHT BOTTOM, 10/20 6 900240 50/60 5 332104
40
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
40
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
45
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
50
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
50
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
55
NUT BRACKET TO SIDE MEMBER
60
SCREW BRACKET TO LEFT SIDE MEMBER
70
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
75
CROSS MEMBERNO.2,NO.4
100
REAR SPRING BRACKET FRONT AND REAR
125
CROSS MEMBERNO.3
130
BEARING BRACKET LEFT SHOCK ABSORBER
130
BEARING BRACKET RIGHT SHOCK ABSORBER
135
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X100
135
SCREW STEERING SUPPORT TO FRAME M 14X50
135
SCREW ROD TO TRANSFER CASE M 14X65
155
CROSS MEMBERNO.5,NO.6,NO.7
160
REAR SPRING BRACKET FRONT AND REAR
165
STRUT REAR SPRING FRONT BRACKET
170
SHIM REAR SPRING FRONT BRACKET
180
SCREWM 16X16X24X42
185
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
200
NUT CONSOLE TO SUPPORT
204
CROSS MEMBERNO.8/NO.9
210
CROSS MEMBER
215
REINFORCEMENT
220
SCREWM 12X13X13X30
225
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
230
SHIM CROSS MEMBER TO SIDE MEMBERS
235
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
240
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
245
CROSS MEMBERNO.9
250
ENGINE CROSS MEMBERNO.10
255
BEARING BRACKET TRANSMISSION MOUNTING
260
SCREW BRACKET TO CAB CONSOLE,K 035197
265
SCREW BRACKET TO SIDE MEMBER
270
NUT BRACKET TO SIDE MEMBER
275
STRUT REAR LEFT AND RIGHT, 10/20 6 900239 50/60 5 332103
275
BRACKET LEFT REAR, 10/20 6 900240 50/60 5 332104
280
CROSS MEMBER REAR, 10/20 6 900240 50/60 5 332104
280
CROSS MEMBER REAR, 10/20 6 900239 50/60 5 332103
285
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
290
NUT BRACKET TO SIDE MEMBER
305
SUPPORT DRIVER'S SEAT PEDESTAL
310
SCREW , Replaced By: N308676012026
310
SCREW BRACKET TO LEFT SIDE MEMBER
315
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
320
SCREW , Replaced By: N308676012026
325
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
330
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
335
SCREW CONSOLE TO SIDE MEMBER
340
WASHER
345
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
BODY SUPPORT FRONT LEFT AND RIGHT, 10/20 6 900239 50/60 5 332103
