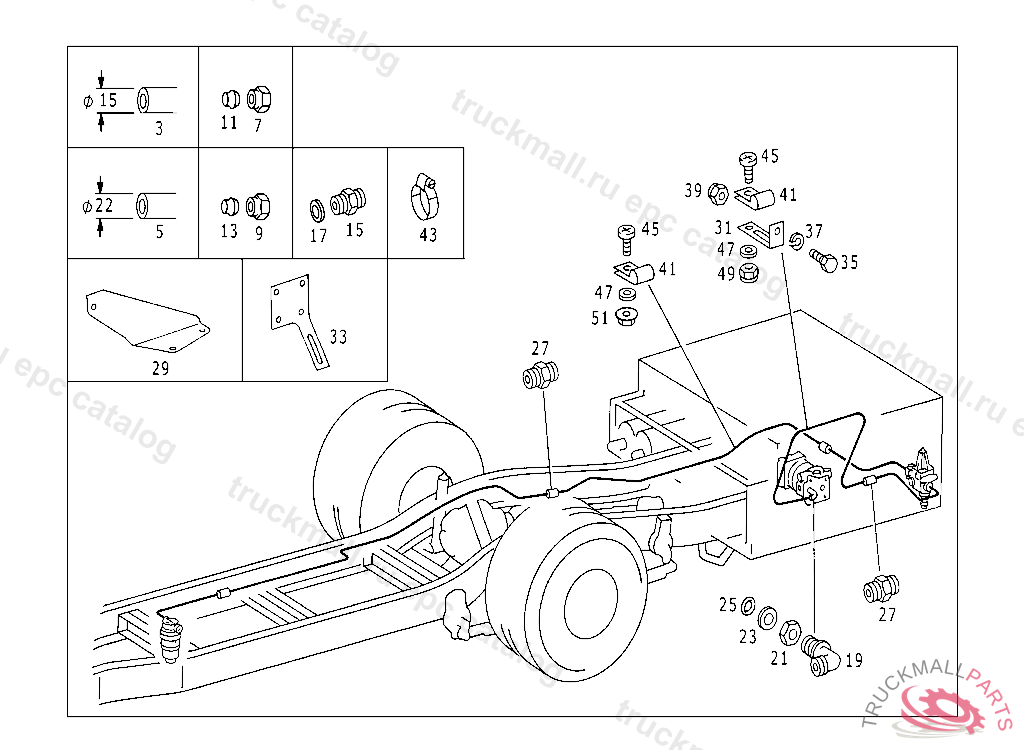

Поз.
Артикул
Описание
3
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
7
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
19
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
19
ELBOW FITTING , Replaced By: A0039901671
21
NUT SUCTION LINE TO OIL PUMP
23
THRUST RING SUCTION LINE TO OIL PUMP
25
SEAL RING LINE CONNECTION
27
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
31
BRACKET LINE MOUNTING
31
BRACKET , Replaced By: A3184280240
35
SCREW PIPE CLAMP
37
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
39
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
41
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
41
CLAMP DELIVERY AND SUCTION LINES TO STEERING
41
CLAMP LINE MOUNTING
41
CLAMP , Replaced By: A6739950001
43
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
45
SCREW CLAMP TO BRACKET
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
49
NUT PUMP TO BRACKET
999
REPAIR KITTO 001 430 18 81/78 81
