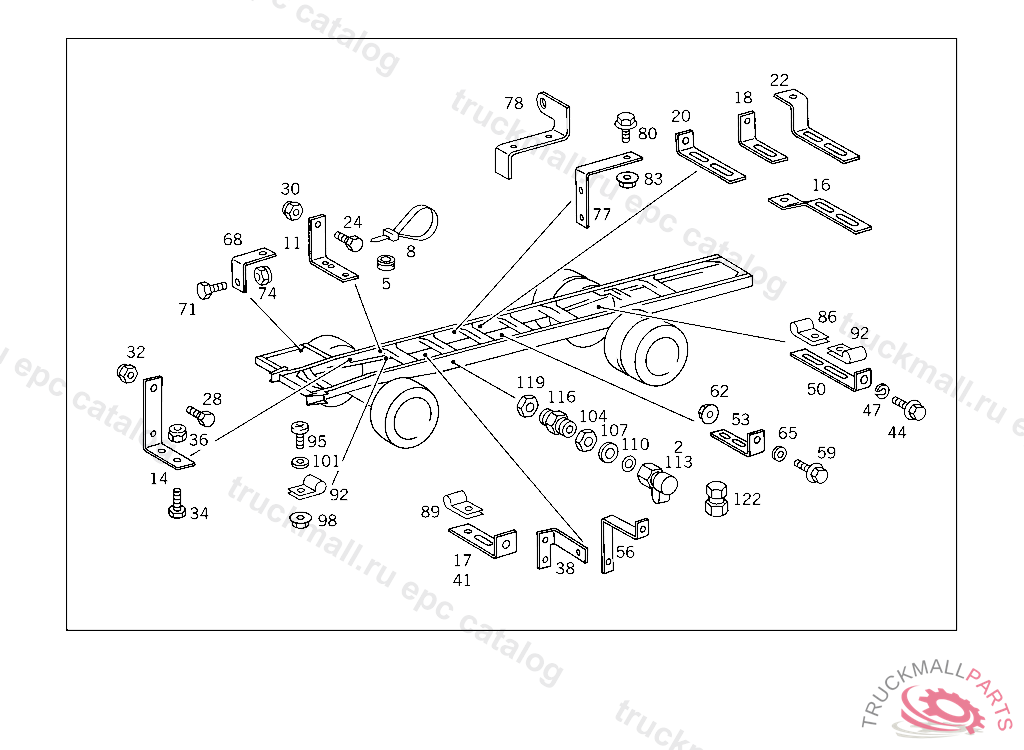

Поз.
Артикул
Описание
2
TEST CONNECTION
2
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
2
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
5
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
8
LOOM TIE LINE MOUNTING
8
LOOM TIE LINE MOUNTING
8
LOOM TIE LINE MOUNTING
8
LOOM TIE LINE MOUNTING 280 MM
11
BRACKET , Replaced By: A3525420440
11
BRACKET , Replaced By: A3525422840
14
BRACKET AT SIDE MEMBER,ZAN 212/88 N1,ZAN 1615/89
17
BRACKET , Replaced By: A3184280240
18
BRACKET AT SIDE MEMBER,ZAN 212/88 N1,ZAN 1615/89
20
BRACKET AT SIDE MEMBER,ZAN 212/88 N1,ZAN 1615/89
22
BRACKET AT SIDE MEMBER,ZAN 212/88 N1,ZAN 1615/89
24
SCREW , Replaced By: N304017006016
24
SCREW , Replaced By: N304017008027
28
SCREW , Replaced By: N304017008034
30
NUT , Replaced By: N913004006001
30
NUT PUMP TO BRACKET
32
NUT , Replaced By: N913004008001
34
SCREW , Replaced By: N304017008018
36
NUT , Replaced By: N913004008001
38
BRACKET AT LEFT SIDE MEMBER
41
BRACKET , Replaced By: A3184280240
44
SCREW GROUND STRAP TO ENGINE
44
SCREW GROUND STRAP TO ENGINE
47
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
50
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
50
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
53
BRACKET , Replaced By: A3464296040
53
BRACKET OIL LINE MOUNTING
56
BRACKET SIDE MEMBER
59
SCREW , Replaced By: N304017008021
59
SCREW , Replaced By: N910142008001
59
SCREW , Replaced By: N910143008002
59
SCREW , Replaced By: N910143008002
62
NUT , Replaced By: N913004008001
62
NUT BRACKET TO BRACKET
62
NUT BRACKET TO BRACKET
65
WASHER , Replaced By: N000125008443
68
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
71
SCREW , Replaced By: N304017008016
74
NUT , Replaced By: N913004008001
77
BRACKET , Replaced By: A4064261140
77
BRACKET AT CROSS MEMBER,ZAN 212/88 N1,ZAN 1615/89
77
BRACKET HOSE TO TRANSMISSION CASE
78
BRACKET AT CROSS MEMBER,ZAN 212/88 N1,ZAN 1615/89
80
SCREW , Replaced By: N304017008021
80
SCREW BRACKET TO SIDE MEMBER M 12X30
83
NUT , Replaced By: N913004008001
83
NUT STRAP TO SUPPORT
83
NUT STRAP TO SUPPORT
86
CLAMP , Replaced By: A6739950001
86
CLAMP DELIVERY AND SUCTION LINES TO STEERING
89
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
92
CLAMP , Replaced By: A3604300143
92
CLAMP , Replaced By: N916016008200
92
CLAMP ,K 147121, Replaced By: N000000000319
92
CLAMP 3/2-WAY SOLENOID VALVE
95
SCREW CONTROL UNIT
95
SCREW , Replaced By: N000000001146
95
SCREW CLAMP MOUNTING M 6X16
98
NUT , Replaced By: N913004006001
98
NUT AT FILTER BRACKET
101
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
104
NUT CHECK VALVE TO AIR RESERVOIR
107
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
110
O-RING CHECK VALVE TO AIR RESERVOIR
113
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
113
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
116
BULKHEAD FITTING , Replaced By: A0019973872
116
FITTING , Replaced By: A0009977172
116
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
119
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
122
TEST CONNECTION BULKHEAD FITTING
999
FITTING , Replaced By: A0019902771
