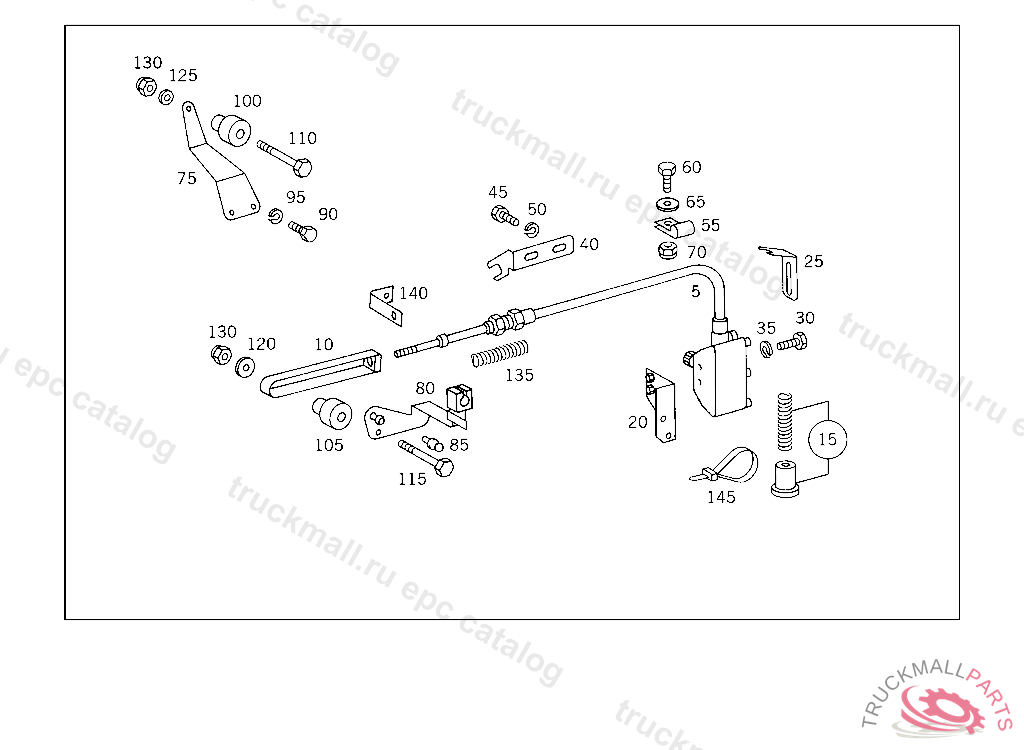

Поз.
Артикул
Описание
5
MODULATOR ,4 965736
5
MODULATOR ,4 965735
10
END PIECE MODULATOR TO INJECTION PUMP CONTROL LEVER,4 410548
10
END PIECE MODULATOR
15
SLEEVE CONVERSION KIT
20
BRACKET MODULATOR TO CASE,4 965735
25
BRACKET MODULATOR TO CASE,4 965735
30
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
40
BRACKET MODULATOR TO CASE,4 965736
45
SCREW OIL LINE TO CRANKCASE
50
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
55
CLAMP , Replaced By: N916016010211
60
SCREW , Replaced By: N304017006020
65
WASHER , Replaced By: N009021006208
70
NUT PUMP TO BRACKET
70
NUT , Replaced By: N913004006001
75
LEVER INJECTION PUMP CONTROL,4 965735
80
LEVER INJECTION PUMP CONTROL,4 965736
85
BALL PIVOT
90
SCREW COVER PLATE TO BRACKET
95
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
100
SPACER TUBE END PIECE TO LEVER,4 410548
105
SPACER TUBE MODULATOR TO INJECTION PUMP CONTROL LEVER,4 965736
110
SCREW CONNECTOR
115
SCREW , Replaced By: N304017006012
120
WASHER , Replaced By: N009021006208
125
WASHER , Replaced By: N000125010532
130
NUT PUMP TO BRACKET
130
NUT , Replaced By: N913004006001
135
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
140
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3833021540
145
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET ,4 965735
999
BRACKET RELEASE SPRING
