Поз.
Артикул
Описание

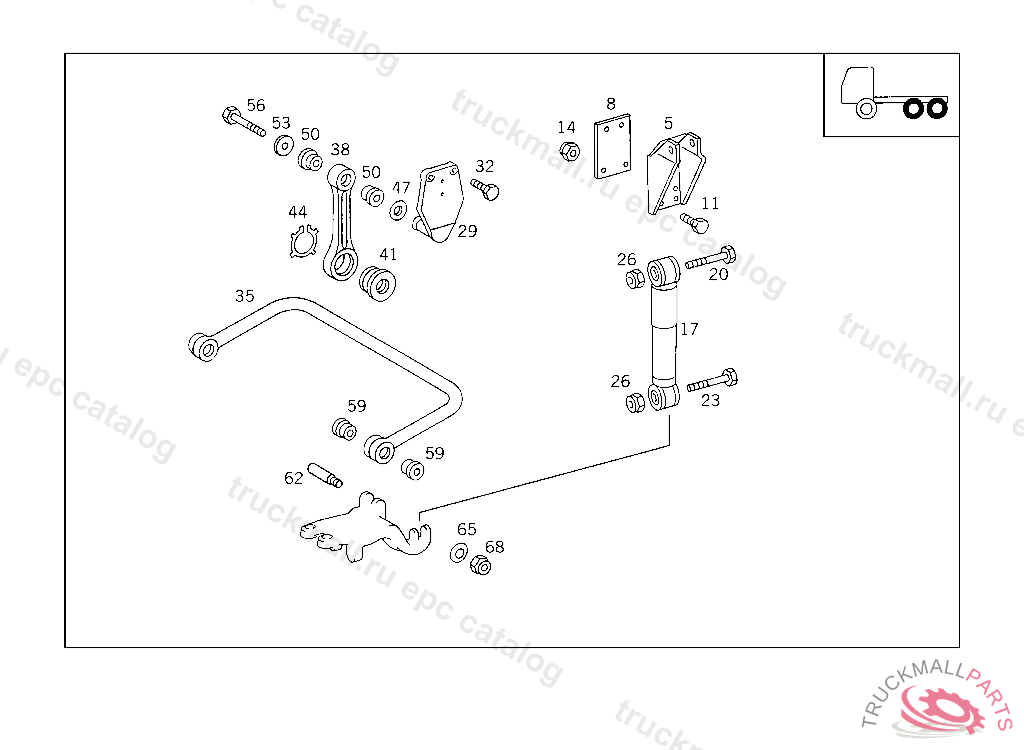

5
BRACKET SHOCK ABSORBER,TOP
8
SHIM BRACKET TO SIDE MEMBER
11
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
14
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
17
SHOCK ABSORBER REAR AXLES I AND II, 311 4450303 321 4453074 315,325 4431028 316,326 44260064 496612
17
SHOCK ABSORBER REAR AXLES I AND II, 311 4450303 321 4453074 315,325 4431028 316,326 44260064 496612
20
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
23
SCREW SHOCK ABSORBER TO TOP BRACKET
26
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
29
BEARING BRACKET TORSION BAR,REAR,5 910761
32
SCREW , Replaced By: N308676016020
32
SCREW BRACKET TO SUPPORT
35
TORSION BAR
38
SHACKLE STABILIZER,5 904660
41
RUBBER MOUNTING AT TORSION BAR
44
LOCK RING SHACKLE TO TORSION BAR,5 904660
47
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
50
BUSHING SHACKLE TO BEARING BRACKET,5 904660
53
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
56
59
BUSHING TORSION BAR TO BEARING BRACKET,5 184731
62
PIN TORSION BAR TO BEARING BRACKET
65
WASHER TORSION BAR TO BEARING BRACKET
68
NUT
