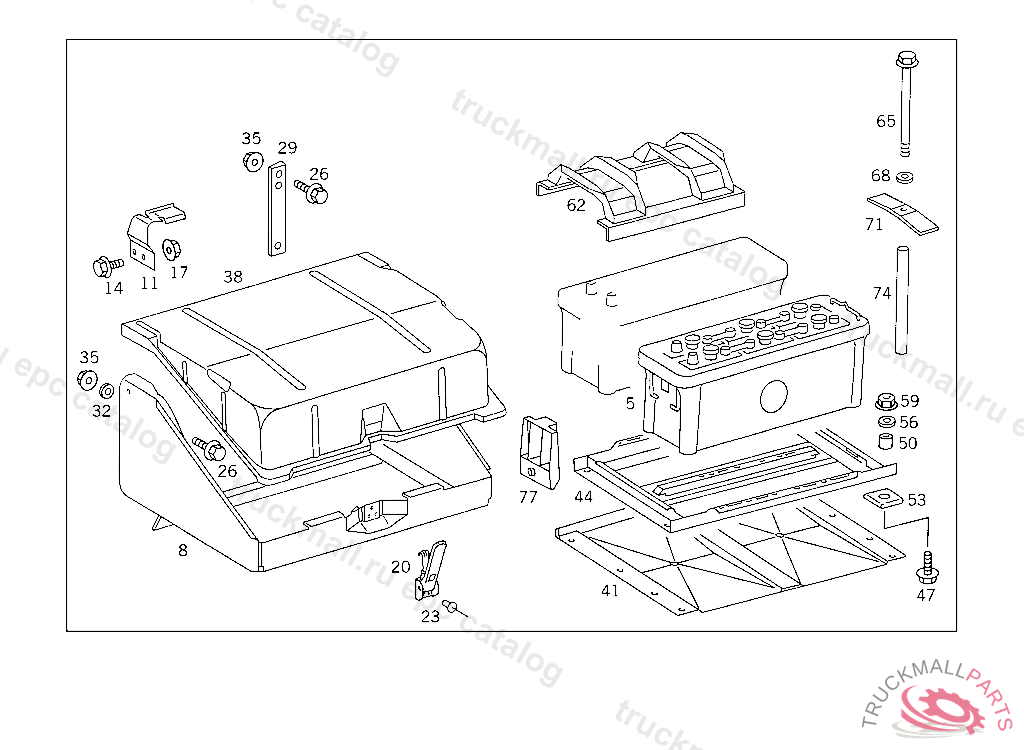

Поз.
Артикул
Описание
5
BATTERY12 V/118 AH
8
BATTERY SUPPORT APPARATUS
11
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
11
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
14
SCREW AT FILTER BRACKET
14
SCREW , Replaced By: N304017006020
17
NUT AT FILTER BRACKET
17
NUT , Replaced By: N913004006001
20
LOCKING HANDLE PROTECTIVE PLATE TO APPARATUS SUPPORT
20
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
23
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
29
SHIM FUEL TANK TO FRAME
29
SHIM APPARATUS SUPPORT TO FRAME
35
NUT PARTICLE FILTER M14
35
NUT , Replaced By: N910113014001
38
COVER BATTERY/APPARATUS SUPPORT
41
BATTERY CASE
44
RAIL. BATTERY BASE FRAME
47
SCREW STRUT TO FRAME, LEFT
47
SCREW BRACKET TO FRAME SIDE MEMBER
50
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
53
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
56
WASHER STRUT TO CROSS MEMBER
59
NUT EXHAUST PIPE TO SIDE MEMBER
59
NUT , Replaced By: N910113010000
62
MOUNTING FRAME BATTERY
65
SCREW BATTERY MOUNTING
65
SCREW BATTERY MOUNTING M 8X260X40
68
WASHER , Replaced By: N009021008213
71
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
74
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
77
STOP BATTERY MOUNTING
999
SHIM SUPPORT TO SIDE MEMBER
999
WASHER , Replaced By: N000125010532
999
SCREW , Replaced By: N308765014006
