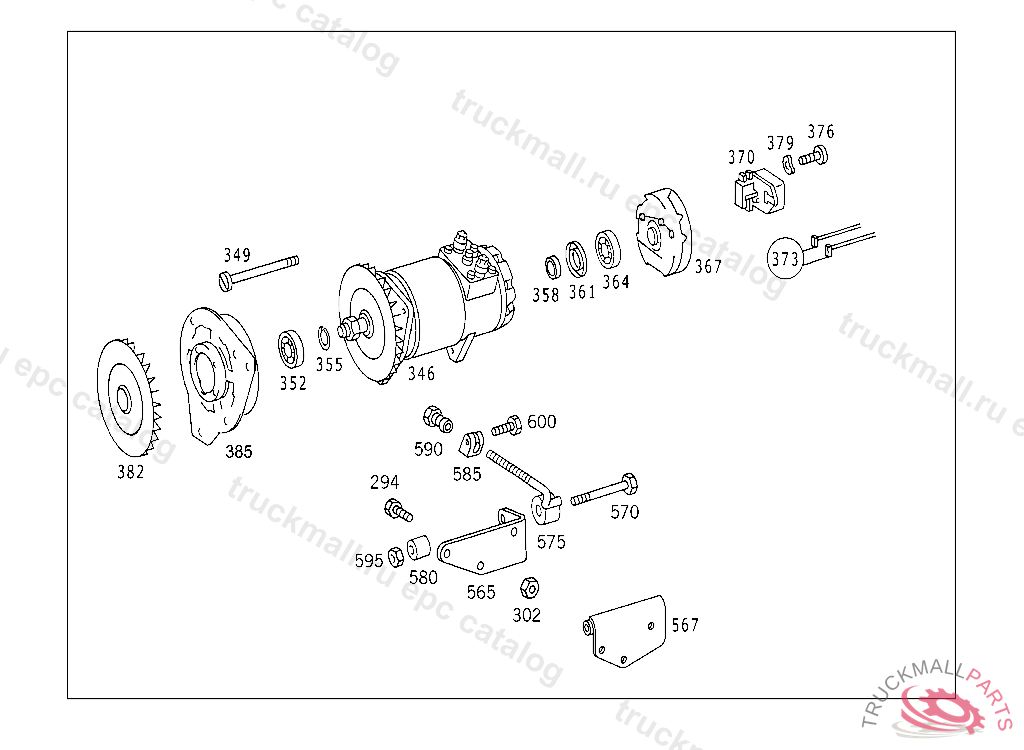

Поз.
Артикул
Описание
294
SCREW BRACKET TO CONSOLE
294
SCREW
294
SCREW BRACKET TO SIDE MEMBER
294
SCREW , Replaced By: N304017010043
302
NUT
346
ALTERNATOR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 048224, Replaced By: A0091542502
346
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
346
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
349
SCREW HOUSING
352
BALL BEARING
355
SNAP RING
358
SPACER RING
361
SEAL RING
364
CYLINDR. ROLLER BEARING SLIP RING SIDE
367
RECTIFIER
370
REGULATOR AND CUT-OUT
370
REGULATOR AND CUT-OUT
373
CARBON BRUSH SET
376
SCREW
376
SCREW FUSE BOX TO SIDE MEMBER,5 097182
376
SCREWR & S, M 4X8
376
SCREW , Replaced By: N000000001933
379
SPRING WASHER ALTERNATOR CONNECTION D+
382
FAN
385
BEARING CAP
565
BRACKET
565
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 040594, Replaced By: A4471550927
567
SUPPORT
570
SCREW BRACKET TO CONSOLE
570
SCREW , Replaced By: N000961012208
570
BOLT. SCREW SUPPORT TO ALTERNATOR
575
CLAMPING BOLT (CLAMPING BOLT)
580
BUSHING
580
BUSHING , NOT USED
580
BUSHING
585
CLAMPING PIECE TIGHTENER PULLEY
585
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
585
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
590
NUT TIGHTENER PULLEY TO LEVER
595
NUT STRAP TO SUPPORT
600
SCREW LEFT AND RIGHT CONSOLES TO CAB
999
SUPPORT REFRIGERANT COMPRESSOR, NOT USED
999
GASKET
999
V-BELT FROM TIGHTENER PULLEY TO FAN DRIVE 12X1250 MM,D 180260
999
BUSHING
999
BUSHING
999
PULLEY
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
GUIDE TUBE
999
PULLEY THREE-GROOVE
999
INTERMEDIATE PIECE PULLEY
999
SUPPORT ALTERNATOR
999
CLAMPING BOLT (CLAMPING BOLT)
999
COVER
999
GASKET
999
INTERMEDIATE PIECE , Replaced By: A4220350314, +006N000933008247
999
PULLEY TWO-GROOVE
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
PROTECTIVE PLATE
999
OIL FILLER NECK
999
OIL FILLER NECK
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
