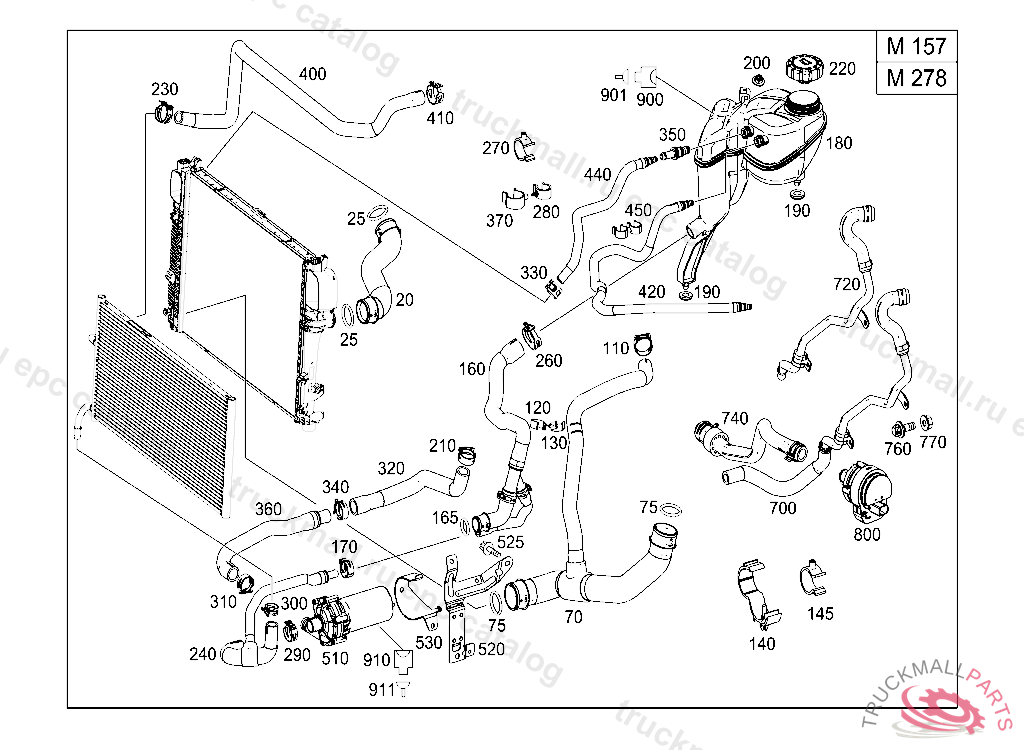

Поз.
Артикул
Описание
20
COOLANT HOSE TOP, AT RADIATOR
25
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
25
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
70
COOLANT HOSE TO RADIATOR BOTTOM
75
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
75
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
110
CLAMP25 MM
120
CLAMP HOSE TO HOSE
130
CLAMP HOSE TO HOSE 20 MM
140
BRACKET AT BRACKET
145
CLAMP HOSE TO HOSE 20 MM
160
COOLANT FILLING HOSE ON EXPANSION RESERVOIR
160
COOLANT FILLING HOSE ON EXPANSION RESERVOIR, A 03087220120629
165
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
170
HOSE CLAMP LINE MOUNTING
180
DASHPOT COOLING WATER EXPANSION TANK
190
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
200
NUT MOUNTING FRAME TO SUPPORT M6
210
CLAMP25 MM
220
CLOSING COVER
230
CLAMP HOSE ATTACHMENT 23/12 MM
240
COOLANT HOSE AT LOW-TEMPERATURE COOLER
260
SPRING HOSE CLAMP HOSE FASTENING,230301
270
CLAMP HOSE TO HOSE 20 MM
280
CLAMP6/14-15 MM
290
HOSE CLAMP HOSE ATTACHMENT 27 MM
300
CLAMP HOSE ATTACHMENT 23/12 MM
310
HOSE CLAMP HOSE ATTACHMENT 27 MM
320
COOLANT HOSE PUMP TO CHARGE-AIR INTERCOOLER
320
COOLANT HOSE WATER PUMP TO COMPEN. TANK, A 03087320120629
330
CLAMP14 MM
340
CLAMP ADVANCE ENGINE 27-30 MM
350
PLUG SOCKET BREATHER LINE
360
COOLANT HOSE PUMP TO CHARGE-AIR INTERCOOLER
370
HOSE BRACKET. LOOM TIE
400
COOLANT HOSE (CHARGING AIR INTERCOOLER)
410
CLAMP HOSE ATTACHMENT 23/12 MM
420
VENT LINE ENGINE TO EXPANSION TANK
440
BREATHER LINE BETWEEN EXPANSION RESERVOIR AND RADIATOR, A 02430720090731800
450
CLAMP14-16 MM
510
COOLANT PUMP
520
BRACKET AT BRACKET
525
SCREW LEVER TO ENGINE CONTROL SHAFT
530
BRACKET COOLING WATER PUMP
700
COOLANT PIPE CONNECTING POINT TO CONTAINER
720
HOSE ASSEMBLY COOLING WATER PIPE
760
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
770
NUT , Replaced By: N913023006001
900
PIN BUSHING HOUSING COOLANT LEVEL SWITCH 2-PIN COD.B,SLK2.8,S41
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
910
CLUTCH SWITCH, OIL LEVEL, LEVEL CONTROL 2-PIN MQS,S44
911
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
