29 PEDAL ASSEMBLY
›

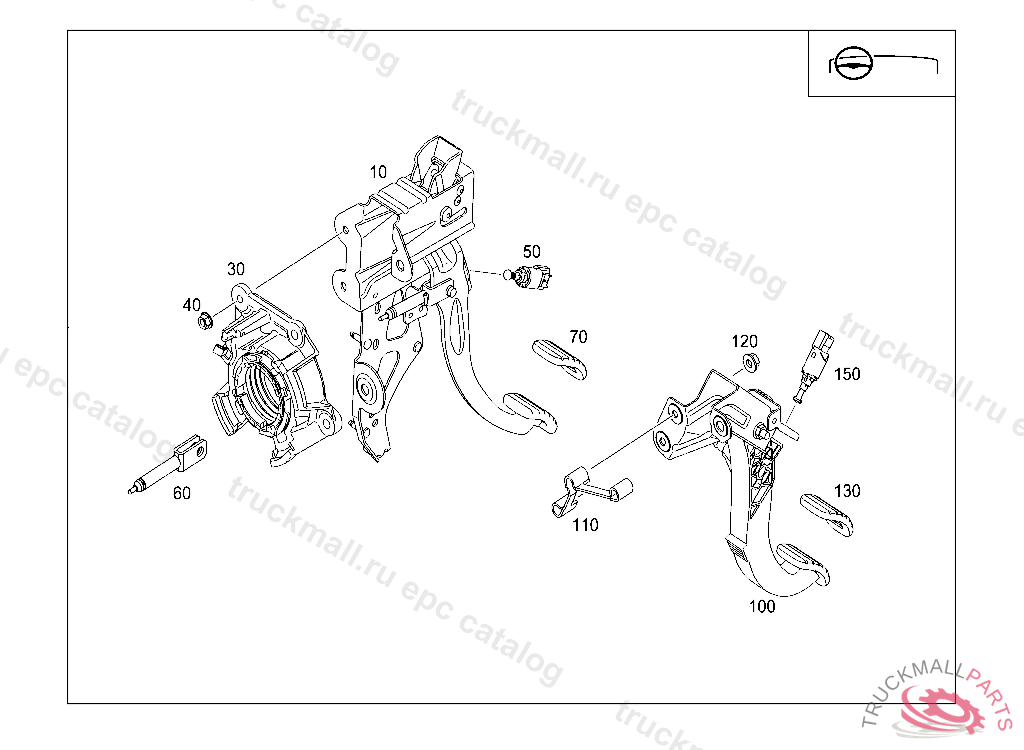

090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 1
Mercedes A4152910040 - ДЕРЖАТЕЛЬ
KASTENWAGEN 415.605
29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 1
Поз.
Артикул
Описание
10
A4152920301
BRAKE PEDAL
10
A4152920201
BRAKE PEDAL
30
A4152940001
BEARING BRACKET
40
A4159905050
HEXAGON NUT W COLLAR AT BEARING BRACKET
40
A4159902250
HEXAGON NUT W FLANGE AT BEARING BRACKET M8
40
A4159904850
HEXAGON NUT W COLLAR AT BEARING BRACKET
50
A4155450009
BRAKE LIGHT SWITCH
60
A4154260030
PLUNGER ROD TO PEDAL ASSEMBLY
60
A4154260130
PLUNGER ROD TO PEDAL ASSEMBLY
70
A4152920082
PEDAL COVER BRAKE PEDAL
100
A4152910100
CLUTCH PEDAL
100
A4152910101
CLUTCH PEDAL
100
A4152900200
CLUTCH PEDAL
110
A4152910200
BRACKET PEDAL ASSEMBLY
110
A4152910040
BRACKET PEDAL ASSEMBLY
120
A4159903850
HEXAGON NUT W FLANGE LEFT BOTTOM M8
130
A4152920082
PEDAL COVER BRAKE PEDAL
150
A4155450114
SWITCH, PRS.-CONTROLLED TO CLUTCH PEDAL
150
A4155450014
SWITCH, PRS.-CONTROLLED TO CLUTCH PEDAL
