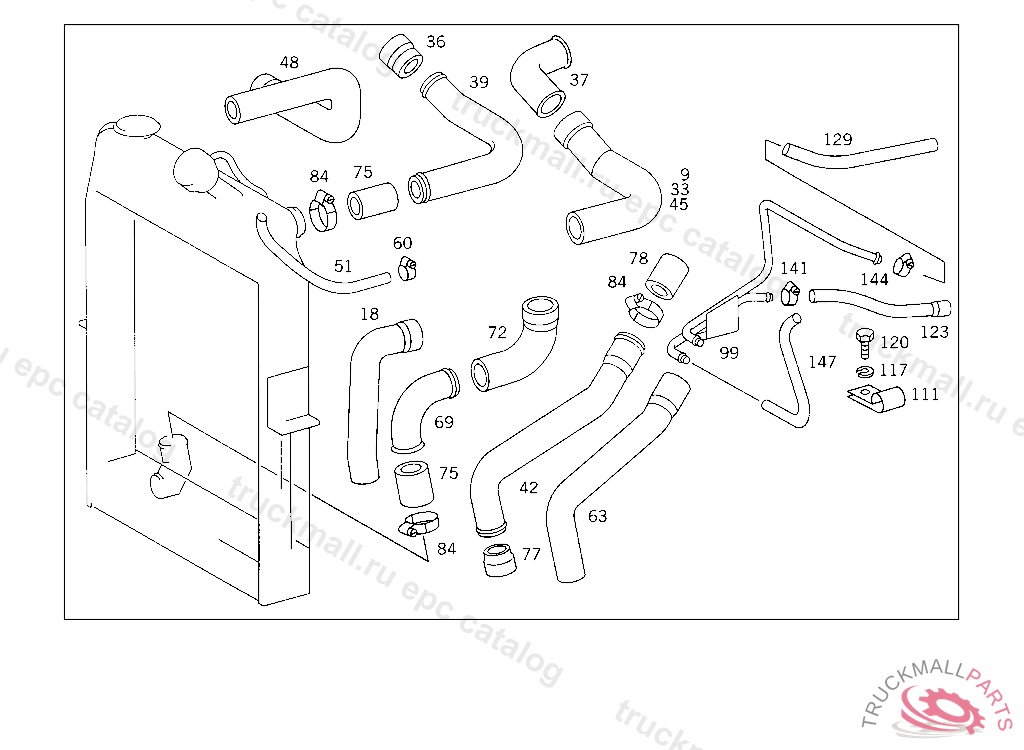

Поз.
Артикул
Описание
9
HOSE FROM ENGINE TO RADIATOR
9
HOSE (RUBBER PIPE ELBOW)
9
HOSE FROM RADIATOR TO ENGINE
18
HOSE FROM RADIATOR TO ENGINE
33
HOSE FROM ENGINE TO RADIATOR
33
HOSE FROM ENGINE TO RADIATOR
33
HOSE FROM ENGINE TO RADIATOR
33
HOSE FROM ENGINE TO RADIATOR
36
HOSE WATER PUMP
37
COOLING WATER PIPE FROM ENGINE TO RADIATOR
39
COOLING WATER PIPE FROM ENGINE TO RADIATOR
39
COOLING WATER PIPE FROM ENGINE TO RADIATOR
39
COOLING WATER PIPE FROM ENGINE TO RADIATOR
39
COOLING WATER PIPE FROM ENGINE TO RADIATOR
42
LINE FROM RADIATOR TO ENGINE
42
HOSE , Replaced By: A4045000289
42
LINE FROM RADIATOR TO ENGINE
42
HOSE FROM RADIATOR TO ENGINE
42
HOSE FROM RADIATOR TO ENGINE
42
COOLING WATER PIPE FROM RADIATOR TO ENGINE
45
HOSE FROM ENGINE TO RADIATOR
45
HOSE FROM ENGINE TO RADIATOR
48
HOSE FROM ENGINE TO RADIATOR
51
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
60
CLAMP25-40X13 MM
60
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
60
CLAMP HOSE TO FITTING AND TO OIL TANK
60
LOOM TIE , Replaced By: N000000000668
60
CLAMP , Replaced By: N000000000667
60
CLAMP , Replaced By: A0069970490
63
HOSE FROM RADIATOR TO THERMOSTAT
63
HOSE FROM RADIATOR TO ENGINE
63
HOSE FROM RADIATOR TO THERMOSTAT, FROM CHASSIS 809917 ALSO INSTALLED ON:798601,806497,809273,809448,809674
69
PIPE ELBOW FROM RADIATOR TO WATER PUMP, 415 5 014668 416 5 000515 417 4 972023
69
PIPE ELBOW
72
HOSE FROM RADIATOR OUTLET TO WATER PUMP
75
HOSE FROM RADIATOR TO WATER PUMP, 415 5 014668 416 5 000515 417 4 972023
75
HOSE REST TOW-ROD, ORDER BY THE METER
77
HOSE , Replaced By: A6595010382
78
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
84
LOOM TIE , Replaced By: A0069976090
84
CLAMP , Replaced By: N000000000673
84
CLAMP , Replaced By: N000000000674
84
CLAMP , Replaced By: A0069974490
84
CLAMP HOSE TO RETARDER 60-80X13 MM
84
CLAMP HOSE 70-90X13 MM
84
CLAMP W DRIVE A WASHER. CLAMP COVERING TO CAB
99
LINE
111
CLAMP FEED LINE TO THERMOSTAT
117
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
120
SCREW CLAMP MOUNTING M 6X16
120
SCREW , Replaced By: N914146006102
123
HOSE , Replaced By: A3635060235
123
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
129
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
141
CLAMP25-40X13 MM
141
LOOM TIE , Replaced By: N000000000668
141
CLAMP , Replaced By: A0069970490
144
LOOM TIE , Replaced By: N000000000668
144
CLAMP , Replaced By: A0069970490
144
CLAMP25-40X13 MM
147
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
CLAMP , Replaced By: N916016038201
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017020000
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017040000
999
LOOM TIE , Replaced By: N916017050000
999
LOOM TIE , Replaced By: N916017025000
999
CLAMP , Replaced By: N916016050201
999
LOOM TIE , Replaced By: N916017070000
999
LOOM TIE , Replaced By: N916017070000
999
FITTING , NOT FOR APPLICABLE TO GERMAN FEDERAL RAILWAY
999
LOOM TIE , Replaced By: N916017050000
999
SEAL RING , Replaced By: A0179971748
999
PIPE LINE , Replaced By: A3015010009
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3058321223
999
PIPE ELBOW , Replaced By: A3875010356
999
PIPE ELBOW , Replaced By: A3635010556
999
LINE , Replaced By: A4032002752
999
GASKET FLANGE TO PUMP
999
HOSE , Replaced By: A4045011782
999
HOSE , Replaced By: A4045010782
999
FLANGE , Replaced By: A4079975250
999
PIPE ELBOW EXHAUST GAS TURBOCHARGER, NOT USED
999
HOSE , Replaced By: A4045011682
999
HOSE , Replaced By: A4035016082
999
HOSE , Replaced By: A4045011382
999
HOSE , Replaced By: A4045011382
999
HOSE , Replaced By: A4045011682
999
HOSE , Replaced By: A4215010182
999
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4042003252
999
LINE FROM CHARGING AIR INTERCOOLER TO PIPE ELBOW, NOT USED
999
OUTLET , Replaced By: A4242000056, +001A3559970149, +001A4079975250, +002N000933010244, +002N912004010102
999
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE OM 424 001504, Replaced By: A4242000652
999
BREATHER PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4470100270
999
LINE FROM CHARGE AIR INTERCOOLER TO BREATHER FITTING, 442-536458 SEE SPECIAL VERSION 082950
999
BRACKET COOLING WATER LINE
999
HOSE
999
LINE
999
FLANGE OIL SEPARATING PIPE
999
SCREW FITTING , Replaced By: A4039971172
