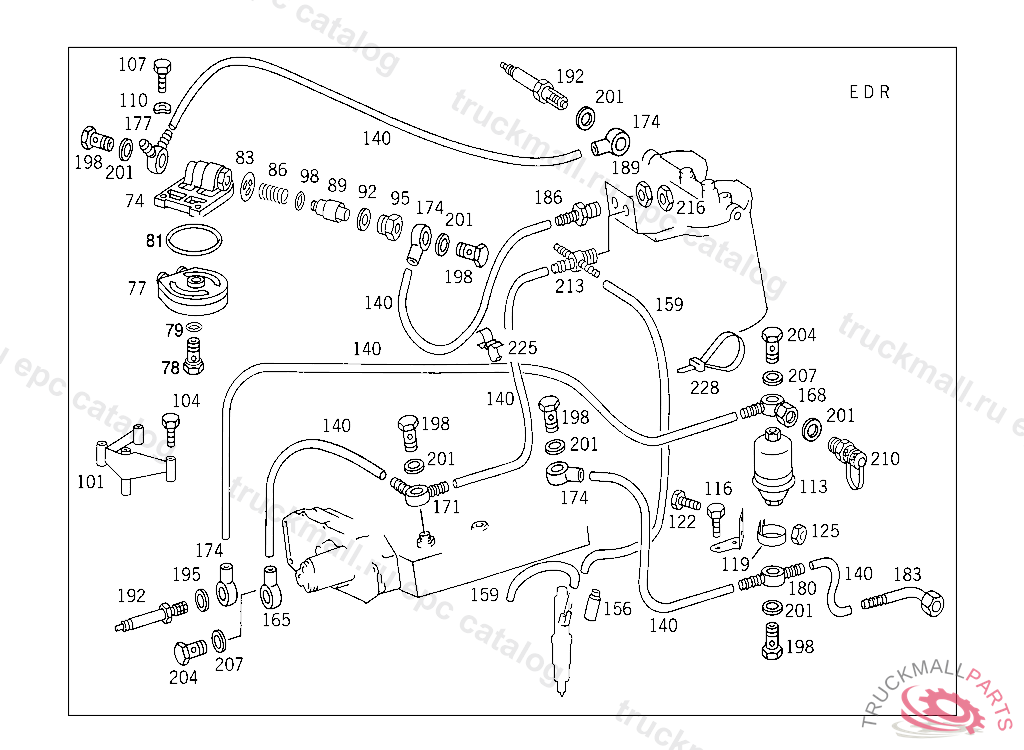

Поз.
Артикул
Описание
74
PREHEATER , Replaced By: A3660700079
74
PREHEATER , Replaced By: A3660780017, +001A0000700079
77
HEAT EXCHANGER
78
HOLLOW SCREW
79
SEAL RING
81
SEAL RING
83
WASHER
86
SPRING
89
THERMOSTAT
92
SEAL RING LINE TO OIL PUMP
95
SCREW
98
WASHER
101
BRACKET PREHEATER TO TIMING CASE COVER
104
SCREW VALVE TO BRACKET
104
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
104
SCREW VALVE TO BRACKET, Replaced By: N304014008002
104
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
107
SCREW , Replaced By: N304017008027
107
SCREW , Replaced By: N304017008067
107
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
107
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
110
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
110
SPRING WASHER , Replaced By: N000137008212
113
FILTER , Replaced By: A0000900652
113
FILTER PARTS KIT
116
SCREW CAB FLOOR COVERING M 6X25
119
CLAMP MOLDED HOSE
122
SCREW , Replaced By: N304017006016
122
SCREW PUMP TO BRACKET
125
NUT SPRING-LOADED PUSH ROD
140
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
156
HOSE LEAK LINE, ORDER BY THE METER
156
SCREENING LEAK CONNECTION SEALING AT NOZZLE HOLDER, 314 494961 352 851898 364 022454 366 063371, Replaced By: A0119977782, +002A4030780074
159
HOSE LEAK LINE, ORDER BY THE METER
165
BANJO UNION HOSE WIDTH, / I.D., 8/12 MM
168
BANJO UNION FROM FINE FILTER TO INJECTION PUMP CONTROL UNIT
171
BANJO UNION RETURN LINE TO INJECTION PUMP
174
BANJO UNION , Replaced By: N000000000363
174
BANJO UNION FEED
177
BANJO UNION FROM HEAT EXCHANGER TO FUEL FILTER
180
BANJO UNION LINE CONNECTION
183
ELBOW FITTING RETURN
186
FITTING FUEL LINE TO HEAT EXCHANGER
189
NUT BRACKET TO SIDE MEMBER
192
PREHEATER PLUG , Replaced By: A0001590202
192
PREHEATER PLUG FUEL LINE TO FILTER
195
SEAL RING INJECTION PUMP
198
HOLLOW SCREW FUEL LINE TO FEED PUMP
201
SEAL RING INJECTION PUMP
204
HOLLOW SCREW FUEL LINE TO FEED PUMP
207
SEAL RING
210
TEST CONNECTION
213
INTERMEDIATE PIECE RETURN LINE TO INJECTION PUMP
216
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
225
CLAMP
228
LOOM TIE LINE MOUNTING 280 MM
999
LINE CYLINDER NO.5,766143
999
LINE CYLINDER NO.8,766143
999
LINE CYLINDER NO.7,766143
999
LINE CYLINDER NO.6,766143
999
BRACKET
999
HOUSING
999
PREHEATER PLUG FUEL LINE TO INJECTION PUMP CONTROL UNIT
