Mercedes A0009913005 - Болт

R 320 CDI 4MATIC / R 350 CDI 4MATIC 251.125

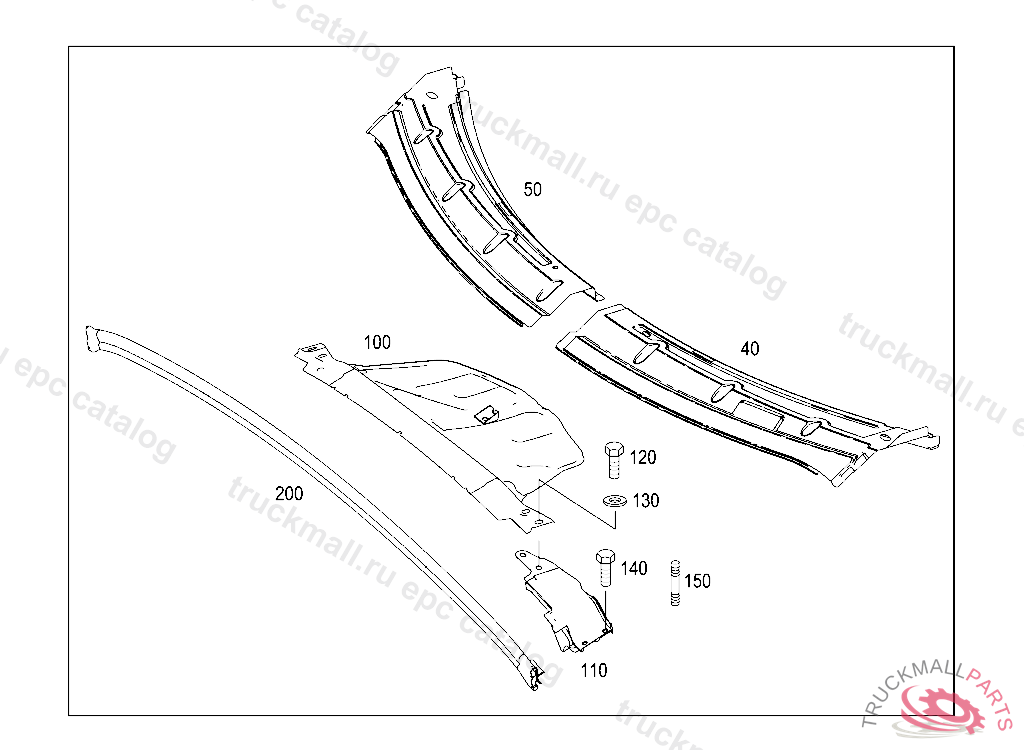

62 FRONT END, FRONT WALL - 045 FIRE WALL AND CONNECTION PARTS

Поз.
Артикул
Описание
40
A2516260755
CROSS MEMBER TOP LEFT
50
A2516260055
CROSS MEMBER TOP RIGHT
100
A2516201378
PARTITION PANEL TOP, A 13814520110929
100
A2516201478
PARTITION PANEL TOP, A 13814520110929
100
A2516200200
PARTITION TOP, A 16241120121203
110
A2516200307
COVER SPRING STRUT TOWER, LEFT
110
A2516200407
COVER STRUT TOWER RIGHT
120
N304017008023
SCREW CABLE HARNESS MOUNTING
130
N000125008445
WASHER PUMP TO CONSOLE
140
N000000003964
SCREW-AND-WASHER ASSEMBLY LEFT COVERING M6X17, A 26014720070403
150
A0009915205
COLLAR PIN MOUNTING PARTITION PANEL, A 12792120110216
150
A0009913005
PIN MOUNTING PARTITION PANEL, A 12792020110216
200
A2518870098
ENGINE HOOD SEAL ENGINE COMPARTMENT PARTITION PANEL, A 10483520090930800
200
A2518890198
SEAL ENGINE COMPARTMENT PARTITION PANEL, A 11496520100722801
