Поз.
Артикул
Описание

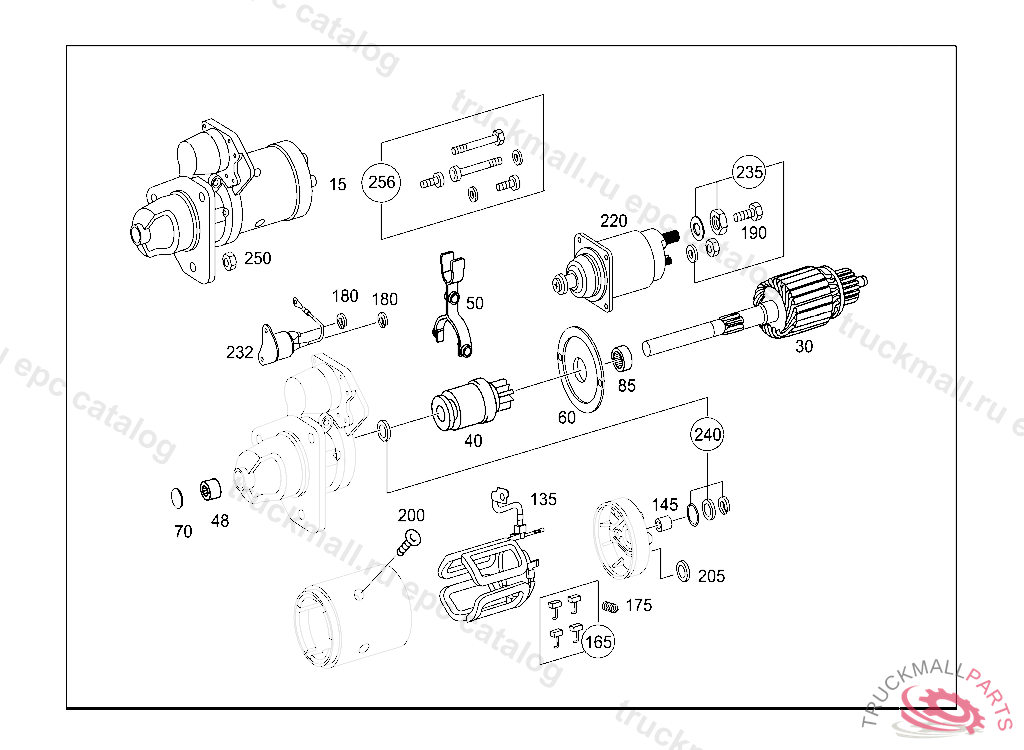

15
STARTER MOTOR24V, MITSUBISHI, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
15
STARTING MOTOR24V, MITSUBISHI, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0071510401
15
STARTING MOTOR24V, MITSUBISHI, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART EXHAUST STOCK OF OLD PARTS UP TO ENGINE 57007, Replaced By: A0061516901
15
STARTING MOTORBOSCH, 24V/6,2KW
30
ARMATURETO 457 151 03 01
40
GEARINGBOSCH
48
NEEDLE BEARINGBOSCH
50
CONTROL LEVERBOSCH
60
BEARINGTO 457 151 03 01
70
GASKETTO 457 151 03 01
85
NEEDLE BEARINGBOSCH
135
EXCITER COILTO 457 151 03 01
145
BUSHINGTO 004 151 58 01/003 151 87 01
165
CARBON BRUSH SETBOSCH
175
SPRINGTO 004 151 58 01
180
LOCK WASHERBOSCH
190
SCREWBOSCH
200
SCREWTO 004 151 58 01
205
WASHER EXHAUST MUFFLER TO STRAP
220
SOLENOID SWITCH ENGAGEMENT RELAY BOSCH
232
SOLENOID SWITCH STARTING MOTOR BOSCH
235
TERMINAL TERMINALS: B+, B-, D+, W
240
ARMATURE PARTS KIT TO 457 151 03 01
250
NUT BRACKET TO SIDE MEMBER M12X1.5
256
TS HEXAGON HEAD BOLT
