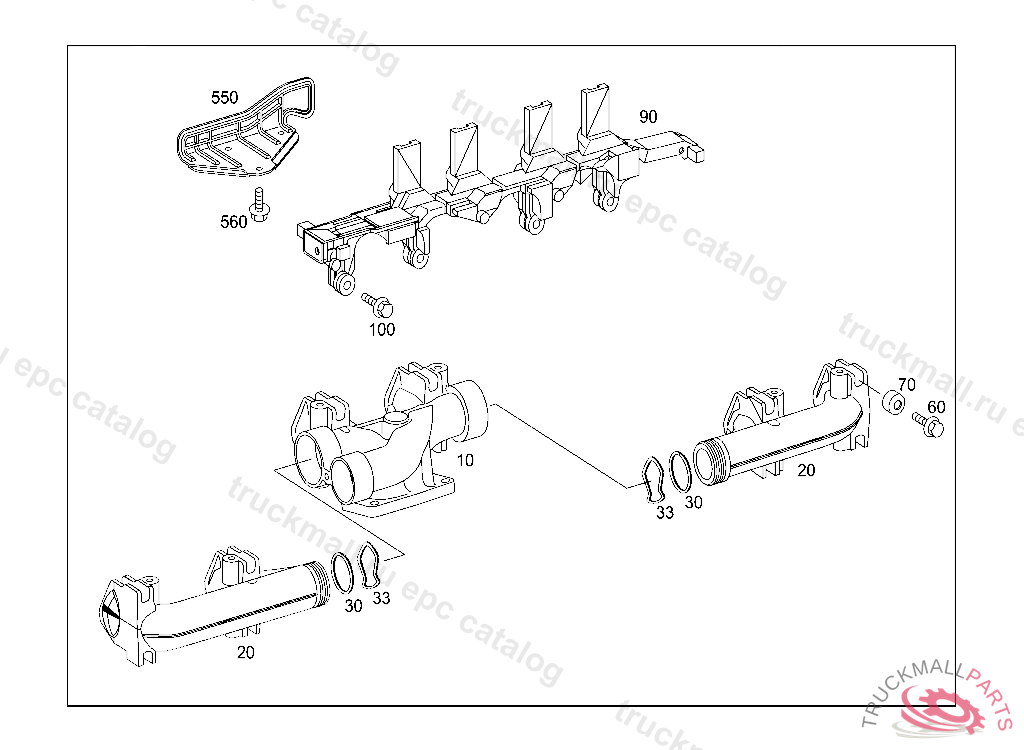

Поз.
Артикул
Описание
10
EXHAUST MANIFOLD
10
EXHAUST MANIFOLD , Replaced By: A4601420701
10
EXHAUST MANIFOLD , NOT USED
20
EXHAUST MANIFOLD
20
EXHAUST MANIFOLD , Replaced By: A4601420801
30
SEAL RING CONNECTION OF EXHAUST MANIFOLDS
30
SEAL RING CONNECTION OF EXHAUST PIPES WITH EACH OTHER
33
WASHER CONNECTION OF EXHAUST PIPES WITH EACH OTHER
60
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE
60
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
60
SCREW , Replaced By: A4579901301
60
SCREW , Replaced By: A4579902001
70
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD
70
SPACER TUBE EXHAUST MANIFOLD TO CYLINDER HEAD, Replaced By: A4601421253
70
SPACER TUBE EXHAUST MANIFOLD TO CYLINDER HEAD
90
BRACKET
100
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
100
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
550
SCREENING PLATE
560
SCREW , Replaced By: N000000000436
999
PROTECTIVE PLATE
999
BRACKET , NOT USED
999
SCREW PLUG FUEL TANK
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
