Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
290 GDT
›
461.365 TO CHASSIS 144225
›
31 FRAME
›

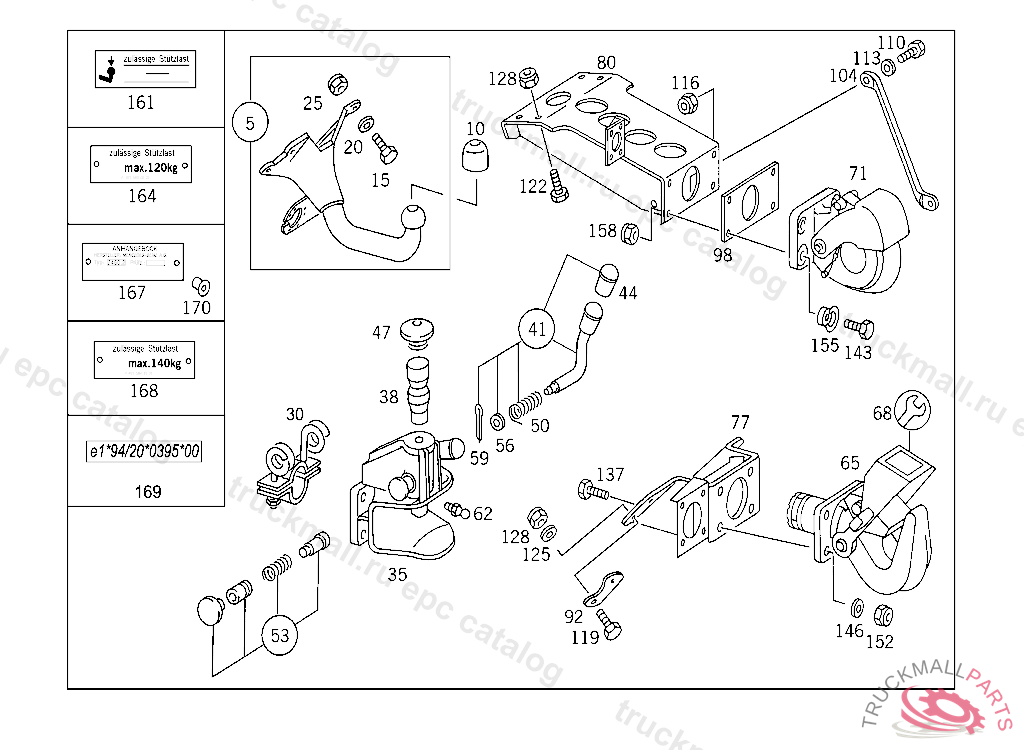

015 TRAILER COUPLING IL. 1
Mercedes N304017010036 - БОЛТ М10
290 GDT 461.365 TO CHASSIS 144225
31 FRAME - 015 TRAILER COUPLING IL. 1
Поз.
Артикул
Описание
35
B66848916
COUPLING MOUTH (MOUTH-TYPE COUPLING)
65
A4613100104
TRAILER COUPLING MAXIMUM DRAWBAR LOAD: 1235 KG
68
A0003100404
REPAIR KIT TRAILER COUPLING
77
A4613100209
BRACKET TRAILER COUPLING
92
A4603150821
PLATE
119
N000960014237
SCREW STEERING SUPPORT TO FRAME M 14X50
125
N000125015012
WASHER
125
N000433015001
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
128
N913004014002
NUT , Replaced By: N910113014001
128
N910113014001
NUT BRACKET TO SIDE MEMBER
137
N304017010036
SCREW BRACKET TO FRAME SIDE MEMBER
146
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
152
N913001010006
NUT COLD START SYSTEM TO BRACKET
164
A4615841321
GUIDE SIGN100 KG
167
A4635840037
PLATE TRAILER COUPLING
169
A4615848221
INFORMATION LABEL CHECK DIGIT
170
N910002002100
RIVET TYPE PLATE
