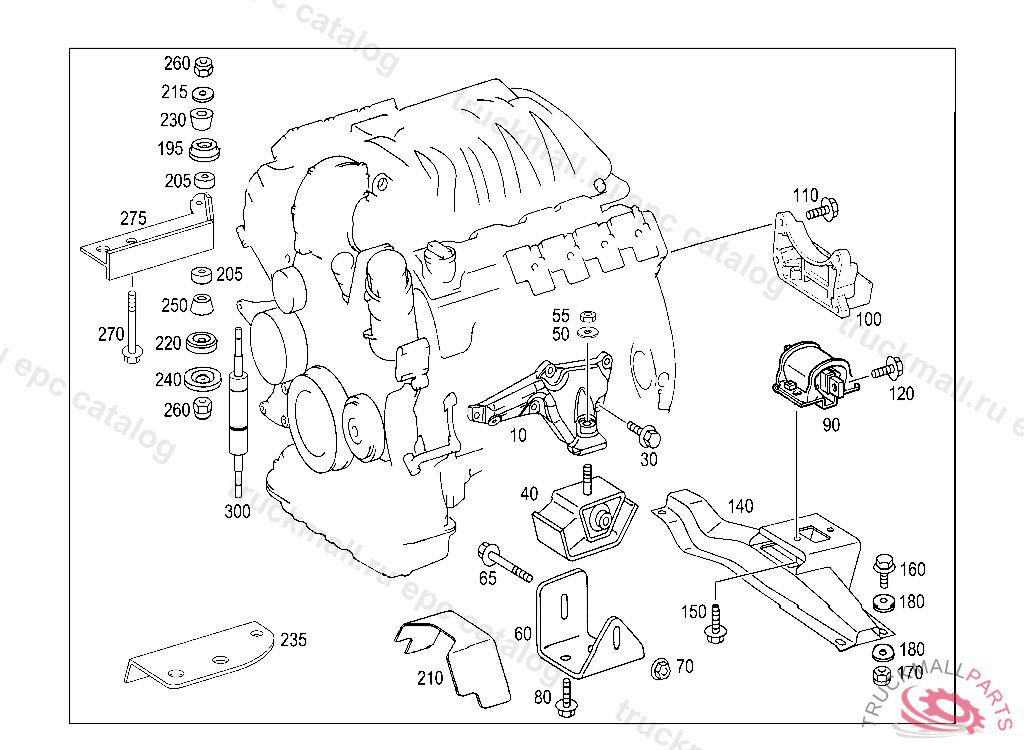

Поз.
Артикул
Описание
10
ENGINE SUPPORT LEFT
10
ENGINE SUPPORT RIGHT
30
HEXALOBULAR BOLT BRACKET TO BRACKET
30
SCREW CLAMP ON BRACKET
40
RUBBER MOUNTING ENGINE FRONT RIGHT MOUNTING, WHITE
50
WASHER
50
WASHER
55
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
60
BRACKET FRONT RUBBER MOUNTING
65
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
70
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
80
SCREW BRAKE ANCHOR TO STEERING KNUCKLE M10X25
90
ENGINE SUPPORT REAR
90
RUBBER MOUNTING ,A 396165
100
BRACKET , A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
110
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
120
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
140
SUPPORT ENGINE REAR MOUNTING
150
SCREW BRACKET TO SIDE MEMBER M8X20
160
SCREW BRACKET TO CROSS CONNECTION STRUT
170
HEXAGON NUT
180
WASHER ENGINE SUPPORT TO FRAME
195
RETAINER ENGINE SHOCK ABSORBER TO ENGINE SUPPORT, 083 000039 183 000380
205
RUBBER BUMPER TO UPPER LEFT ENGINE SUPPORT, X 20407720121031
215
WASHER ENGINE SHOCK ABSORBER TO ENGINE SUPPORT,A 515066
220
RETAINER , 000 096739 083 000219 102,103 077327 183 000380
230
RUBBER BUFFER , 083 000039 183 000380
235
BRACKET BOTTOM LEFT, X 20407720121031
240
RETAINER , 000 096739 083 000219 102,103 077327 183 000380
250
RUBBER BUFFER , 083 000039 183 000380
260
NUT HEATING PIPE TO BRACKET
270
BOLT CALIPER TO WHEEL BEARING M10 X 30, A 44988420030930803
275
BRACKET AT FRAME,RIGHT
300
SHOCK ABSORBER LEFT VIBRATION ABSORBER
