Поз.
Артикул
Описание

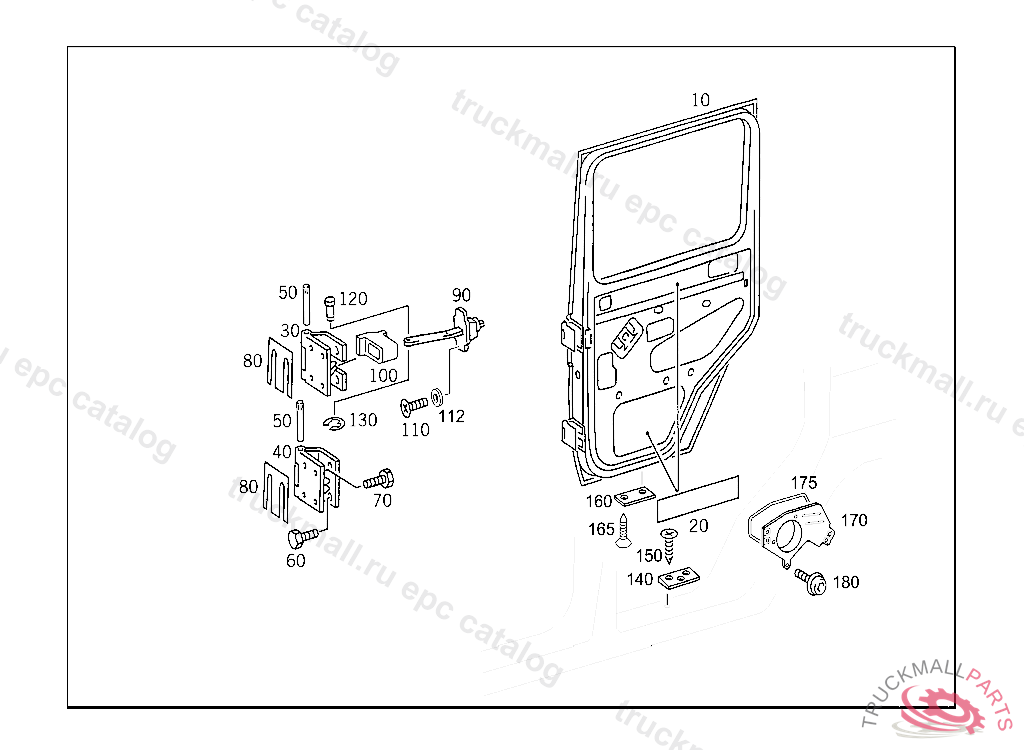

10
REAR DOOR LEFT REAR DOOR, X 19654020120119
10
REAR DOOR RIGHT REAR DOOR, X 19654020120119
10
DOOR SHELL RIGHT REAR DOOR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. X 18451720100319, Replaced By: A4637304405
10
DOOR SHELL LEFT REAR DOOR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. X 18451720100319, Replaced By: A4637304305
10
REAR DOOR RIGHT REAR DOOR, X 20407820121031
10
REAR DOOR LEFT REAR DOOR, X 19654120120119
20
SOUNDPROOFING ON TOP OF BODYWORK
20
SOUNDPROOFING LEFT
30
HINGE REAR BOTTOM RIGHT, X 19654120120119
30
HINGE REAR BOTTOM LEFT, X 20407820121031
30
HINGE RIGHT TOP
30
HINGE LEFT FRONT, TOP AND BOTTOM
40
HINGE FRONT BOTTOM RIGHT
40
HINGE REAR TOP, LEFT
50
HINGE PIN FRONT TOP LEFT
60
SCREW CLAMP TO BRACKET AND TO PIPE
70
SCREW BRACKET TO CROSS CONNECTION STRUT
80
ASSEMBLY PLATE RIGHT, Replaced By: A4607230197
80
PAD HINGE,LEFT, Replaced By: A4637250000
90
DOOR CHECK RIGHT REAR DOOR, X 19654020120119
90
DOOR CHECK RIGHT REAR DOOR
100
SEAL LEFT DOOR CHECK, X 19654020120119
100
SEALING FRAME RIGHT DOOR CHECK, X 19654120120119
110
SCREW SENSOR CABLE MOUNTING
110
HEXALOBULAR BOLT INTERIOR LOCKING MECHANISM M6X20
110
SCREW
110
SCREW FLANGE TO TRANSMISSION CASE COVER
110
BOLT DOOR CATCH TO DOOR RIGHT
112
WASHER COMPRESSED AIR LINE TO BRACKET
120
COLLAR PIN DOOR STOP TO CENTER PILLAR LEFT
120
PIN BRACKET TO FRONT PANEL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009915405
130
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
140
PLATE RIGHT FRONT DOOR,BOTTOM
150
TAPPING SCREW RIGHT 4,2X13, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000000005220
150
TAPPING SCREW4.2X16
160
RUN-ON PLATE RIGHT FRONT DOOR,BOTTOM
165
SCREW SWITCH TO INSTRUMENT PANEL
170
BRACKET DOOR CONTROL UNIT, RIGHT
170
BRACKET DOOR CONTROL UNIT, LEFT
175
SEAL BRACKET AT LEFT DOOR
180
SCREW , Replaced By: A1409842829
