Mercedes A0004607348 - Наконечник рулевой тяги

G 500 463.254 TO CHASSIS 144225

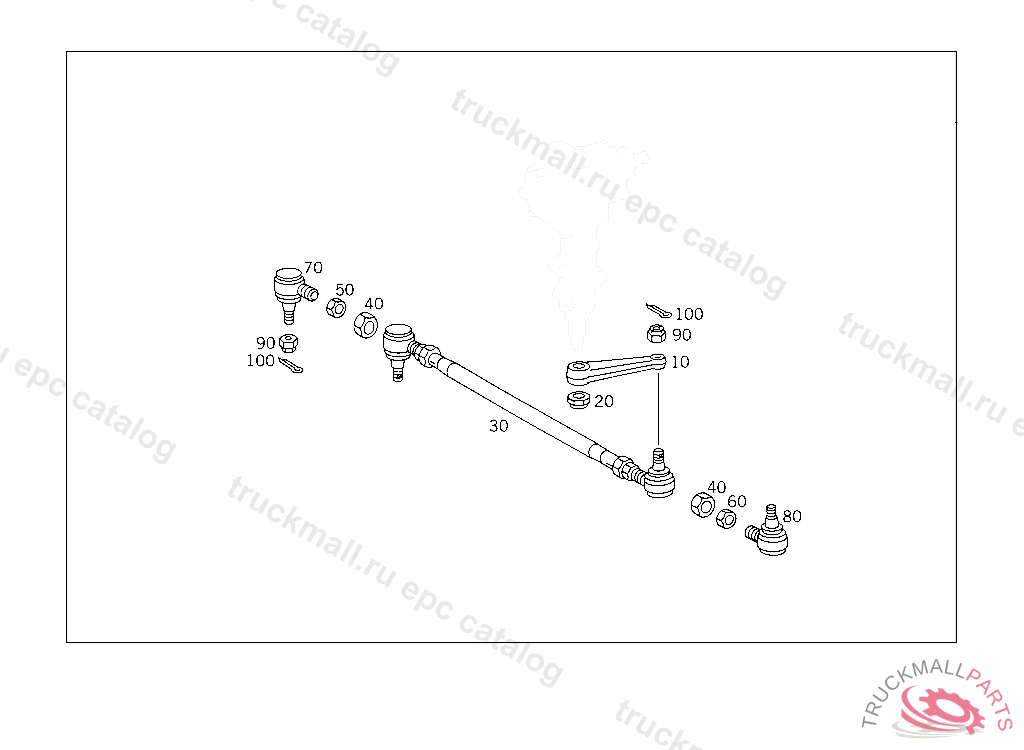

46 STEERING - 120 STEERING LINKAGE

Поз.
Артикул
Описание
10
A4604630201
PITMAN ARM ,007239
20
A0019907651
NUT DRAG LINK TO LEVER
30
A4634631115
DRAG LINK
40
A0004630617
CLAMPING PIECETO 463 460 01 05,463 460 02 05
50
N000439024206
NUT L.H. THREAD M 24X1.5 LH
60
N000439024200
NUT SHACKLE TO REAR-SPRING REAR BRACKET
70
A0024601948
BALL JOINTTO 463 463 00 15,463 463 04 15
70
A0004607348
DRAG LINK ENDTO 463 460 01 05,02 05,463 463 04 15, Replaced By: A0024601948
80
A0004607248
DRAG LINK ENDTO 463 463 04 15, Replaced By: A0024601648
80
A0024601648
BALL JOINTTO 463 463 04 15
90
N000979016007
NUT SHOCK ABSORBER TO CROSS MEMBER
100
N000094004065
COTTER PINROCKINGER TYP 260 G140
