Mercedes A1242920074 - Болт

G 500 463.254 TO CHASSIS 144225

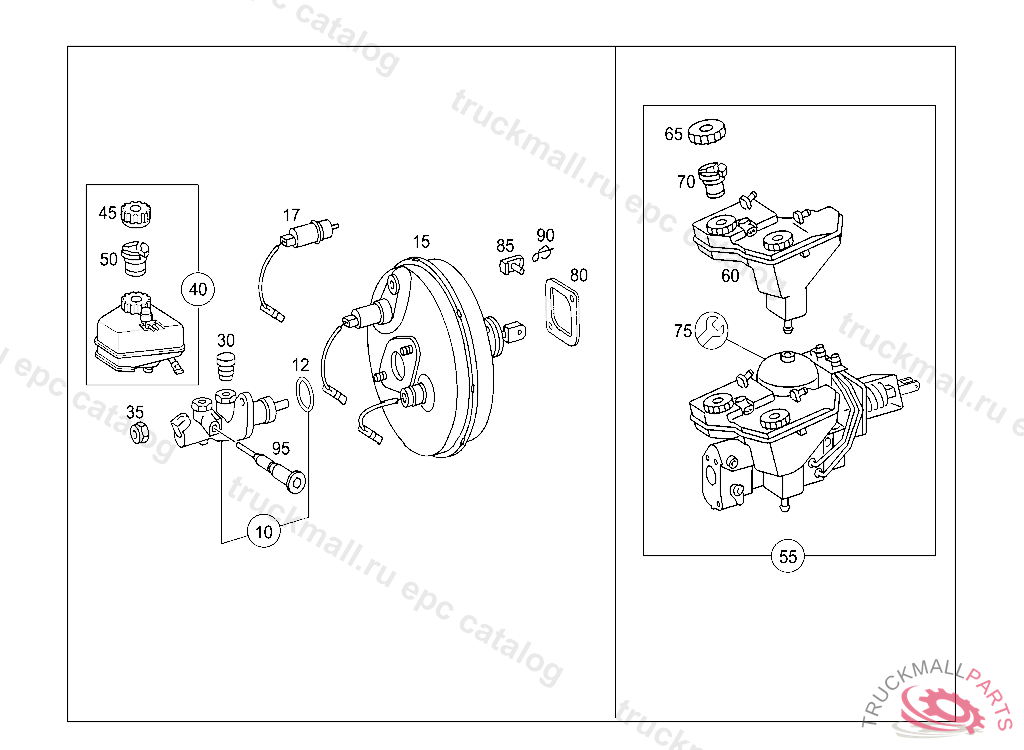

42 BRAKES - 060 BRAKE BOOSTER

Поз.
Артикул
Описание
10
A0064300101
BRAKE MASTER CYLINDER
12
A0014313360
SEAL RING
15
A0014300408
BRAKE BOOSTER , 127356
15
A0054300930
BRAKE BOOSTER ASSEMBLY PARTS KIT,F 187941 EXEPT FOR VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM F 187942 WITH CODE 809
17
A0015401517
SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS
30
A0004311550
BUSHING
35
N304032008006
NUT
40
A0004301102
RESERVOIR , A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057 ORDER WHEN USING CASE OR STRAINER
45
A2024300014
COVER
45
A0004307514
COVER , Replaced By: A2024300014
50
A0004314334
STRAINER
80
A0004312380
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
85
A1242920074
PIN BRAKE PEDAL TO BRAKE BOOSTER, B 843549
90
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
95
A0004312071
TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564
