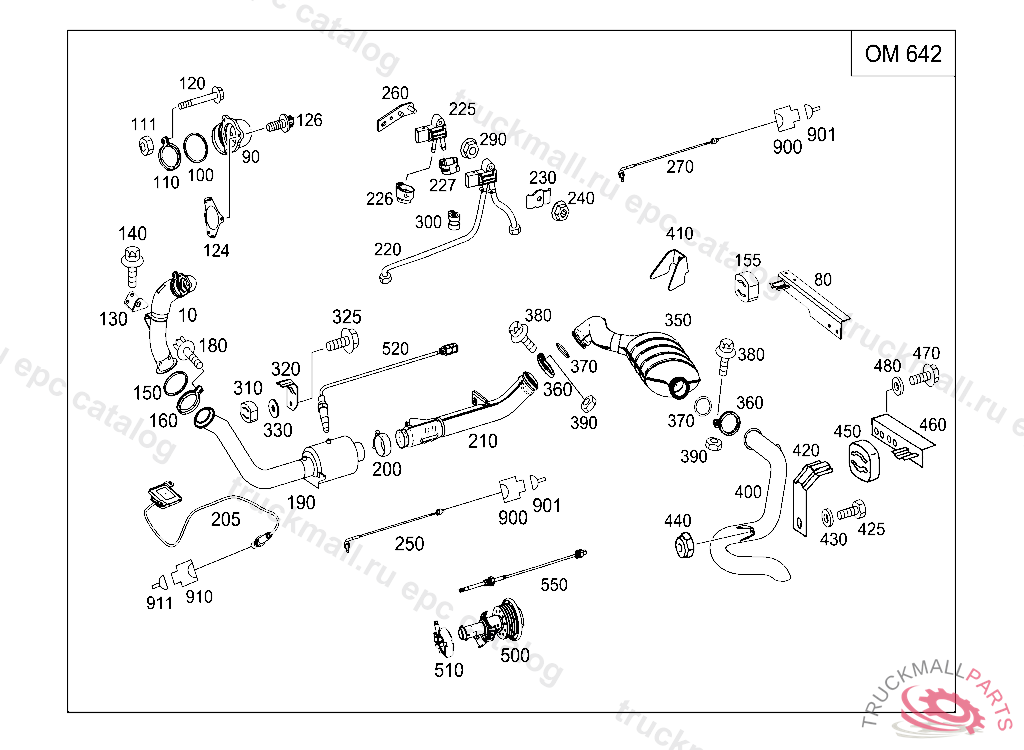

Поз.
Артикул
Описание
10
EXHAUST PIPE , X 20407720121031
80
BRACKET AT FRAME
90
PIPE TO TURBOCHARGER, A 48935820081029
100
SEAL RING CATALYTIC CONVERTER TO PARTICULATE FILTER
110
CLAMP CLAMP TO EXHAUST PIPE ABRACADEIRA TUBULAR
111
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
120
HEXALOBULAR BOLT CLAMP ON BRACKET M8X45
124
FLANGE GASKET FRONT
126
BOLT CATALYST TO BRACKET M8X20
130
BRACKET TO THREE-WAY CATALYTIC CONVERTER, X 19271120110531
140
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
150
SEAL RING CATALYTIC CONVERTER TO PARTICULATE FILTER
155
DAMPING PAD , Replaced By: A3814920082
160
CLAMP EXHAUST PIPE TO EXHAUST PIPE
180
HEXALOBULAR BOLT CLAMP ON BRACKET M8X45
190
EXHAUST SYSTEM CATALYST
200
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE 60 MM
205
NOX SENSOR LEFT, A 20130508, Replaced By: A0009057100
205
NOX SENSOR , J 20130507 V 00009220130628
210
EXHAUST PIPE CENTRAL MUFFLER
210
EXHAUST PIPE PARTICLE FILTER
220
PRESSURE LINE TO PARTICULATE FILTER, 20131220
225
PRESSURE SENSOR PARTICLE FILTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 97537120110713, Replaced By: A0061539528
226
LOOM TIE. CLIP
227
HOSE CLAMP HOSE ATTACHMENT
230
SHACKLE UPPER PART
240
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
250
TEMPERATURE SENSOR TEMPERATURE SENSOR, PARTICULATE FILTER, A 10785320091223
250
TEMPERATURE SENSOR UPSTREAM OF DIESEL PARTICULATE FILTER, A 00270120110729
260
BRACKET MOUNTING BRACKET FOR SENSOR
270
TEMPERATURE SENSOR EXHAUST GAS TEMPERATURE,RIGHT, A 57693120091208
290
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
300
CLAMP CABLE HARNESS MOUNTING
310
DAMPING PAD , Replaced By: A3814920082
320
BRACKET EXHAUST PIPE FRONT RIGHT ON FRAME
325
HEXAGON HEAD BOLT AT BRACKET M8X20
330
WASHER BRACKET TO CAB REAR PANEL
350
REDUCT. CATALYST CONV.
360
CLAMP EXHAUST PIPE TO EXHAUST PIPE
360
CLAMP EXHAUST LINE TO EXHAUST PIPE, FRONT
370
SEAL RING UPSTREAM OF PARTICULATE FILTER
380
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X35
390
HEXAGON NUT. NUT BRACKET TO FRAME
400
EXHAUST PIPE TO CENTER MUFFLER, X 20407820121031
410
BRACKET TO CENTER MUFFLER
420
BRACKET MAIN MUFFLER AT REAR FRAME, X 20094620120717
420
BRACKET EXHAUST LINE,REAR RIGHT AT FRAME
425
HEXAGON HEAD BOLT AT BRACKET M8X20
425
SCREW CLAMP TO BRACKET AND TO PIPE
430
WASHER BRACKET TO CAB REAR PANEL
430
WASHER BRACKET TO LEFT SIDE MEMBER
440
HEXAGON NUT SCREENING PLATE,5 163561
440
HEXAGON NUT. NUT BRACKET TO FRAME
450
DAMPING PAD , Replaced By: A3814920082
460
BRACKET REAR
470
SCREW CLAMP TO BRACKET AND TO PIPE
480
WASHER PUMP TO CONSOLE
480
WASHER EXHAUST MUFFLER TO STRAP
500
INJECTION NOZZLE ADDITIVE , Replaced By: A1644900513
500
INJECTION NOZZLE ADDITIVE
510
PROFILE CLAMP F EXHAUST INJECTION NOZZLE AT FRONT OF EXHAUST PIPE
520
OXYGEN SENSOR CATALYST,FRONT, A 09458520081001809
550
TEMPERATURE SENSOR UPSTREAM OF PARTICULATE FILTER, A 50672020090210
550
TEMPERATURE SENSOR
900
PLUG TEMPERATURE SENSOR CATALYST 2-PIN MLK1.2,B19
901
CONTACT PIN0.35 MM2 MLK1.2
910
CLUTCH NOX SENSOR CONTROL UNIT, RIGHT 5-PIN MLK1.2,N37/6
911
CONTACT BUSHING0.75-1.0 MM2 MLK1.2
911
CONTACT BUSHING DOOR LOCK TO REAR DOOR 0.22-0.5 MM2 MLK1.2,S49/4 S49/5
911
SEAL. GASKET YELLOW,V 215932
999
OXYGEN SENSOR CONTROL PROBE IN FRONT OF CATALYST
