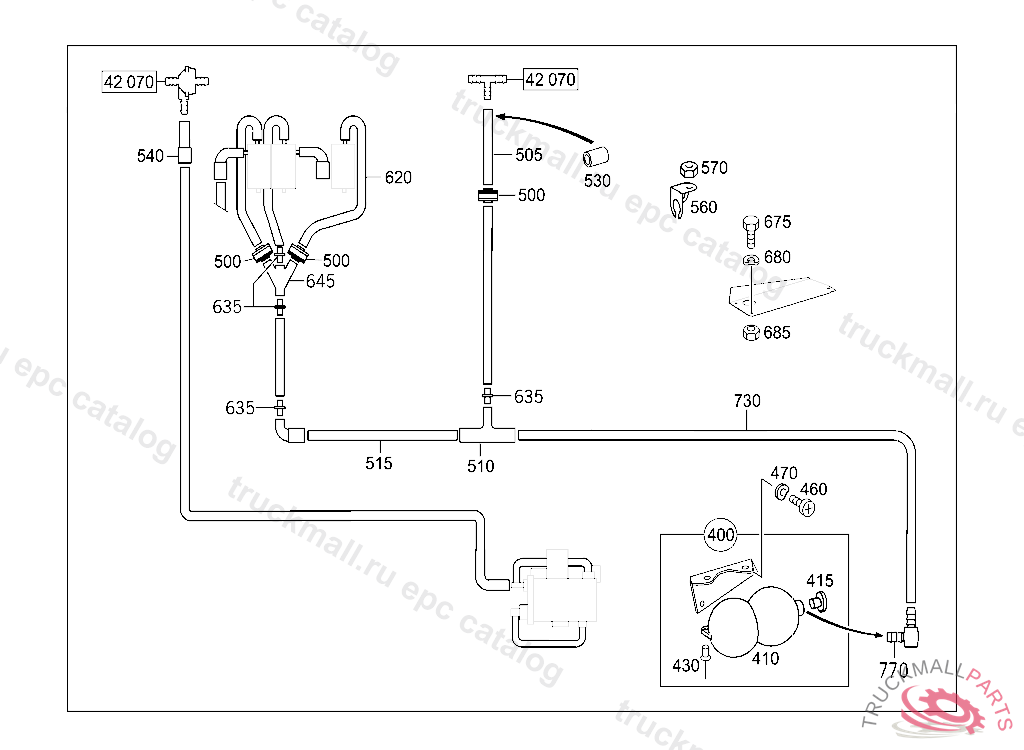

Поз.
Артикул
Описание
400
VACUUM-CONTAINER SUPPLY TANK
410
TANK LIGHT RANGE ADJUSTER
415
SEAL
430
RIVET
460
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
470
WASHER BOOT TO CAB FLOOR
500
VALVE BELOW INSTRUMENT PANEL
505
HOSE *** 30 MM
510
BRANCH-OFF FITTING
515
PLASTIC PIPE RISING PIPE 4X6 MM
530
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
540
HOSE VACUUM LINE
560
BRACKET VACUUM LINE TO VENTILATION CASE
570
NUT CLAMP TO BRACKET
620
HOSE *** 30 MM
635
DISTRIBUTOR CHANGE-OVER VALVE
645
BRANCH-OFF FITTING BETWEEN VACUUM LINE AND CONNECTION FOR ELEC.-PNEUM.DIRECTIONAL CONTROL VALVE
675
SCREW PUMP TO BRACKET
680
SPRING WASHER LICENSE PLATE TO BRACKET
685
NUT SPRING-LOADED PUSH ROD
730
PLASTIC PIPE RISING PIPE 4X6 MM
770
ELBOW FITTING BETWEEN DISTRIBUTOR FITTING AND VACUUM RESERVOIR
