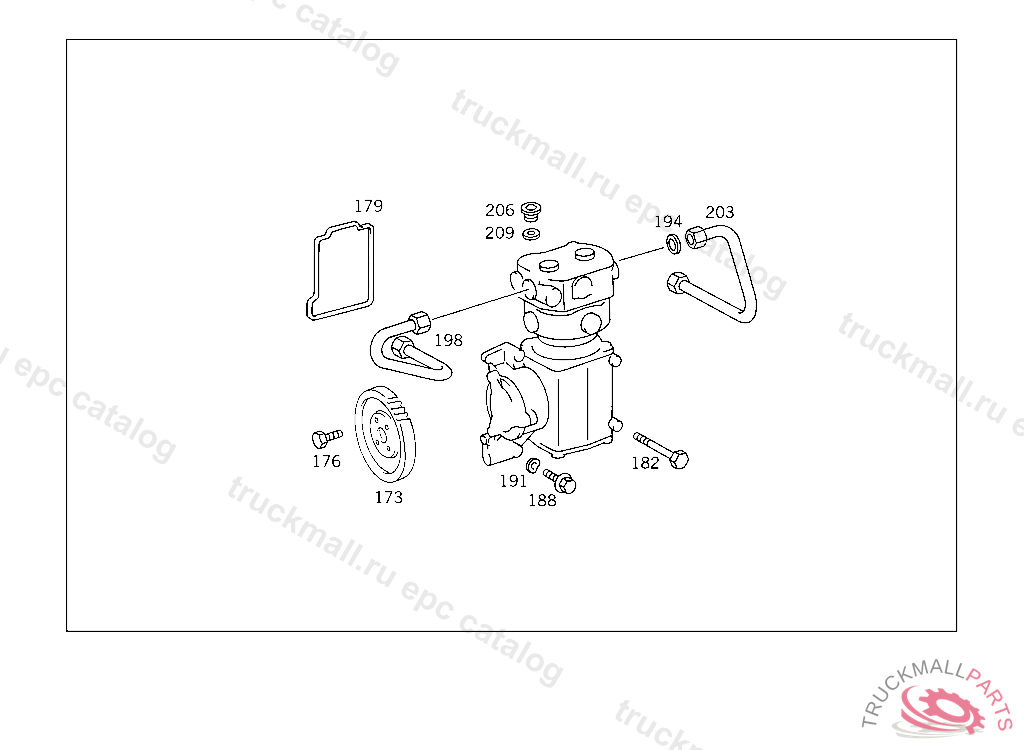

Поз.
Артикул
Описание
173
GEAR DRIVE GEAR ON CAMSHAFT
176
SCREW CROSS MEMBER TO SIDE MEMBERS
179
GASKET
182
SCREW CLUTCH TO FLYWHEEL,760271
182
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
188
SCREWM 8X28
191
SPRING WASHER STEERING SHAFT BEARING TO CAB
194
SEAL RINGTO 000 553 03 05,000 553 18 05,
198
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR
203
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
206
SCREW PLUGTO 376 131 74 01
209
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
999
CONNECTING ROD
