Mercedes
ENGINE
OM 447 LA
476.978
07 INJECTION PUMP
030 INJECTION PUMP IL. 1

Mercedes A0000744371 - Болт

OM 447 LA 476.978

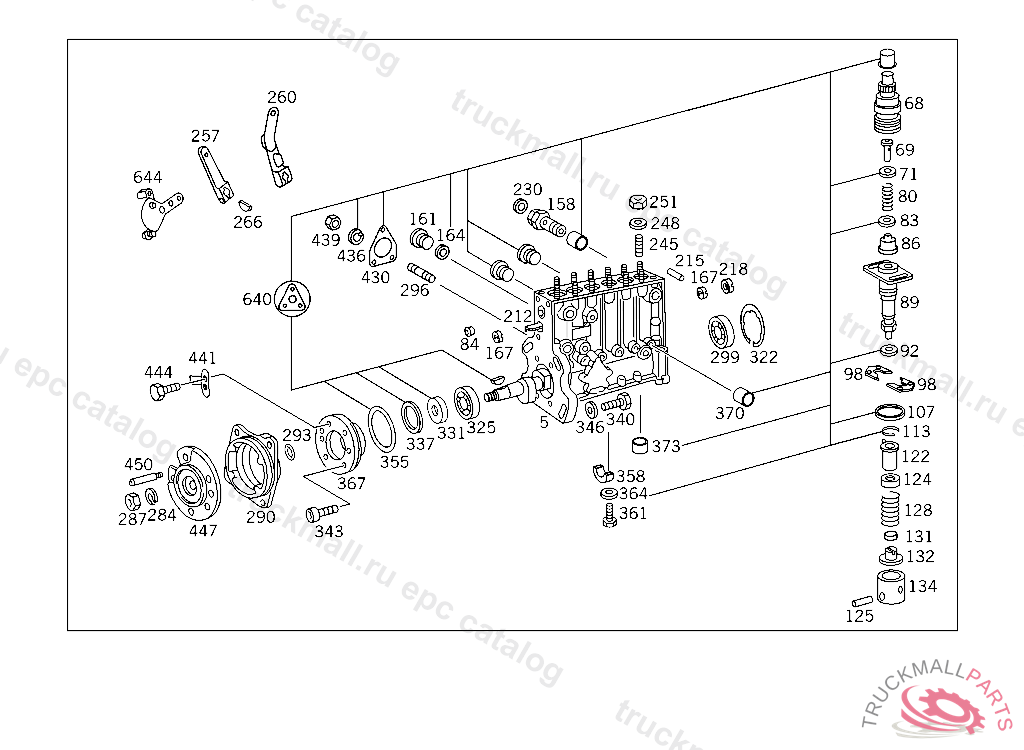

07 INJECTION PUMP - 030 INJECTION PUMP IL. 1

Поз.
Артикул
Описание
5
A0260746602
INJECTION PUMP
68
A0000783169
FITTING
69
A0000780529
ELEMENT
71
A0139979548
SEAL RING
80
A0010743293
SPRING
83
A0000744259
SEAL RING
84
A0000744371
SCREW
86
A0000749084
VALVE
89
A0010746122
PUMP ELEMENT
92
A0039976148
SEAL RING OIL LINES TO TRANSMISSION
98
A0000745876
WASHER0.50 MM
98
A0000745676
WASHER0.40 MM
98
A0000749376
WASHER2.50 MM
98
A0000748676
WASHER2.15 MM
98
A0000745276
WASHER AS REQUIRED 1.85 MM
98
A0000748476
WASHER2.05 MM
98
A0000748776
WASHER2.20 MM
98
A0000746476
WASHER0.80 MM
98
A0000748276
WASHER1.95 MM
98
A0000745076
WASHER1.75 MM
98
A0000748076
WASHER1.60 MM
98
A0000746976
WASHER1.05 MM
98
A0000747876
WASHER1.50 MM
98
A0000747376
WASHER1.25 MM
98
A0000746676
WASHER0.90 MM
98
A0000747676
WASHER1.40 MM
98
A0000749176
WASHER2.40 MM
98
A0000746276
WASHER0.70 MM
98
A0000747976
WASHER1.55 MM
98
A0000746376
WASHER0.75 MM
98
A0000746776
WASHER0.95 MM
98
A0000747576
WASHER1.35 MM
98
A0000745976
WASHER0.55 MM
98
A0000746076
WASHER0.60 MM
98
A0000748876
WASHER2.25 MM
98
A0000747776
WASHER1.45 MM
98
A0000748576
WASHER2.10 MM
98
A0000746576
WASHER0.85 MM
98
A0000746176
WASHER0.65 MM
98
A0000747476
WASHER1.30 MM
98
A0000749276
WASHER2.45 MM
98
A0000747276
WASHER1.20 MM
98
A0000748376
WASHER2.00 MM
98
A0000747176
WASHER1.15 MM
98
A0000749076
WASHER2.35 MM
98
A0000745176
WASHER1.80 MM
98
A0000745776
WASHER0.45 MM
98
A0000747076
WASHER1.10 MM
98
A0000744876
WASHER AS REQUIRED 1.65 MM
98
A0000746876
WASHER1.00 MM
98
A0000744976
WASHER AS REQUIRED 1.70 MM
98
A0000748176
WASHER1.90 MM
98
A0000748976
WASHER2.30 MM
107
A0199975048
SEAL RING
113
A0019947835
SNAP RING
122
A0000741432
SLEEVE
124
A0069936901
SPRING
125
A0000740729
TAPPET. PIVOT PIN
128
A0059939101
SPRING
134
A0000743029
TAPPET
158
A0000747684
VALVE ,295838/93
161
A0009971732
SCREW PLUG
164
A0049979740
SEAL RING
167
A0000743950
BUSHING
212
A0000741426
CONTROL RACK
215
A0009973310
PIN
218
A0009971216
THREADED CHUCK
245
A0019901105
STUD
248
A0009911425
WASHER , NOT USED
284
A0009905347
LOCK WASHER
287
A0000741372
NUT
296
A0009909505
STUD
299
A0099810301
CYLINDR. ROLLER BEARINGTO 024 074 01 02,025 074 93 02
325
A0109816201
CYLINDR. ROLLER BEARING
325
A0079812901
CYLINDR. ROLLER BEARING , Replaced By: A0109816201
331
A0149974747
SEAL RING
337
A0139979748
SEAL RING
340
A0010717271
SCREW
346
A0049902640
WASHER
355
A0149974448
SEAL RING
358
A0000741446
BEARING
361
A0010717371
SCREW
364
A0199974548
SEAL RING
370
A0000740937
COVER LATERAL, NOT USED
373
A0000740637
COVER BOTTOM
430
A0010742280
GASKET FUEL PUMP TO INJECTION PUMP, FROM ENGINE 399032 YEAR OF MANUFACTURE 1995
436
A0009906147
LOCK WASHER
439
N000934006000
NUT , Replaced By: N304032006004
640
A0000700602
REPAIR KIT INJECTION PUMP
644
A0000703421
LEVER PARTS KIT
