Главная
›
Mercedes
›
ENGINE
›
OM 501 LA
›
541.925
›
20 ENGINE COOLING SYSTEM
›
001 AIR CONDITIONER IL.12
Mercedes A9418300415 - ТРУБКА
OM 501 LA 541.925

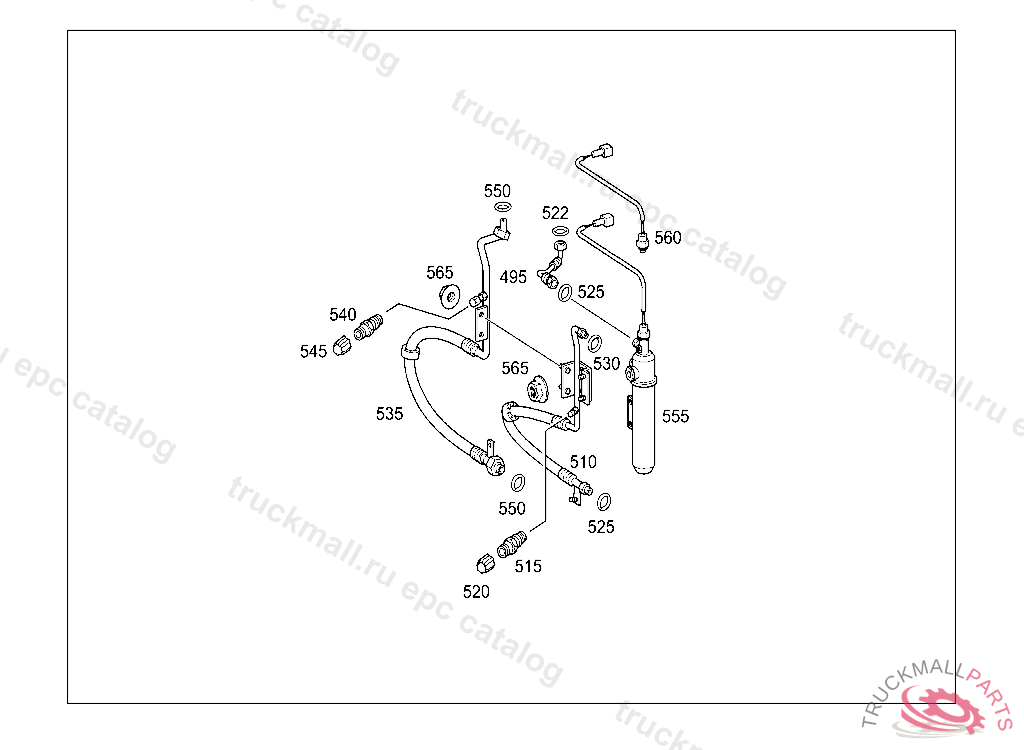

20 ENGINE COOLING SYSTEM - 001 AIR CONDITIONER IL.12
Поз.
Артикул
Описание
495
A9418300415
PIPE LINE DELIVERY LINE
510
A9418300215
PIPE LINE DELIVERY LINE
515
A0018306384
VALVE
520
A1409880035
CAP
522
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
525
A1409970745
SEAL RING FROM LIQUID TANK TO T-FITTING
530
A1409970945
O-RING HOSE TO EXPANSION VALVE 17X2
530
A1409970845
SEAL RING HOSE TO CONDENSER 14 MM
535
A9418300315
PIPE LINE SUCTION LINE
540
A0018302884
VALVE , NOT USED
545
A1409880135
CAP , NOT USED
550
A1409970845
SEAL RING HOSE TO CONDENSER 14 MM
555
A0008303083
TANK LIQUID TANK
555
A0008302683
TANK LIQUID TANK
555
A0008301783
TANK LIQUID TANK
555
A0008302483
TANK LIQUID TANK
560
A0068207110
SWITCH (PRESSURE SWITCH)
560
A0088207110
SWITCH (PRESSURE SWITCH)
560
A0068205810
SWITCH ,K 157608
565
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
