Поз.
Артикул
Описание

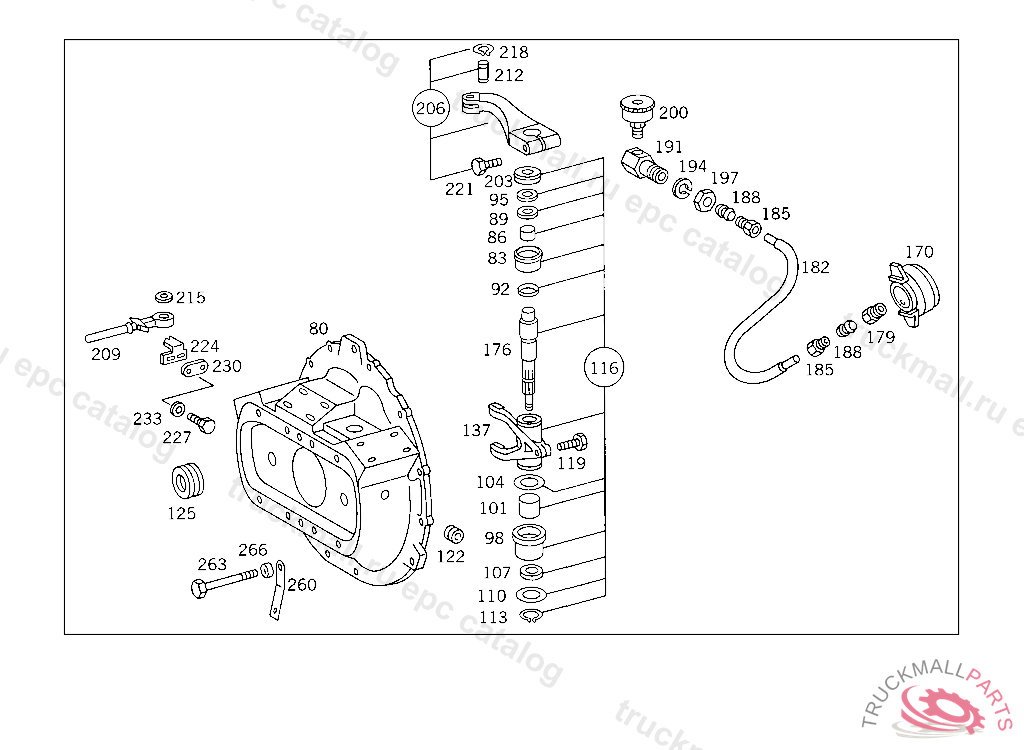

80
HOUSING BELL HOUSING WITH BUSHINGS
83
BUSHING RELEASE SHAFT,TOP
86
BUSHING RELEASE SHAFT,TOP 35X39 MM
89
SEAL RING RELEASE SHAFT,TOP
92
COVER PLATE RELEASE SHAFT,TOP
95
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
98
BUSHING RELEASE SHAFT,BOTTOM
101
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
104
WASHER AS REQUIRED 0.80 MM
104
WASHER AS REQUIRED 1.3 MM
104
WASHER AS REQUIRED 1.00 MM
104
WASHER AS REQUIRED 1.20 MM
107
SEAL RING BOTTOM
110
SPACER WASHER RELEASE SHAFT,BOTTOM
113
LOCK RING RELEASE SHAFT,BOTTOM
116
SHAFT (PARTS KIT),RELEASE SHAFT
119
SCREW RELEASE LEVER TO SHAFT
119
SCREW , Replaced By: N000933012102
119
SCREW , Replaced By: N304017012018
122
PLUG BELL HOUSING
125
PLUG BELL HOUSING
137
RELEASE LEVER CLUTCH ACTUATION
170
RELEASE BEARING CLUTCH ACTUATION
170
RELEASE BEARING CLUTCH ACTUATION
176
SPRING RELEASE BEARING TO RELEASE LEVER
179
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
182
HOSE RELEASE COLLAR LUBRICATION 220 MM
185
UNION SCREW RELEASE COLLAR LUBRICATION
188
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
191
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
194
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
197
NUT JOINT TO BRACKET
197
NUT , Replaced By: N308675014001
200
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
203
COVER RELEASE SHAFT,TOP
206
LEVER (PARTS KIT),CLUTCH ACTUATION
209
ROD END CLUTCH ACTUATION
212
PIN CLUTCH ACTUATION
215
SEAL RING CLUTCH ACTUATION
218
LOCK RINGTO 000 553 37 01,000 553 39 01,
221
SCREW PIPE ELBOW TO BRACKET M 10X50
221
SCREW , Replaced By: N304017010030
221
SCREW , Replaced By: N304017010053
224
POINTER CLUTCH LINING WEAR, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
227
SCREW BRACKET ON LOAD SENSOR
230
LOCK POINTER TO CLUTCH ACTUATION BRACKET, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
233
WASHER , Replaced By: N009021006208
233
WASHER COMPRESSED AIR LINE TO BRACKET
260
BRACKET , Replaced By: A3604923941
260
BRACKET EXHAUST PIPE
263
SCREW MOUNTING AND RAIL TO LEAF SPRING
266
SPACER RING BRACKET TO TRANSMISSION,5 215322
266
WASHER , Replaced By: A3094310051
