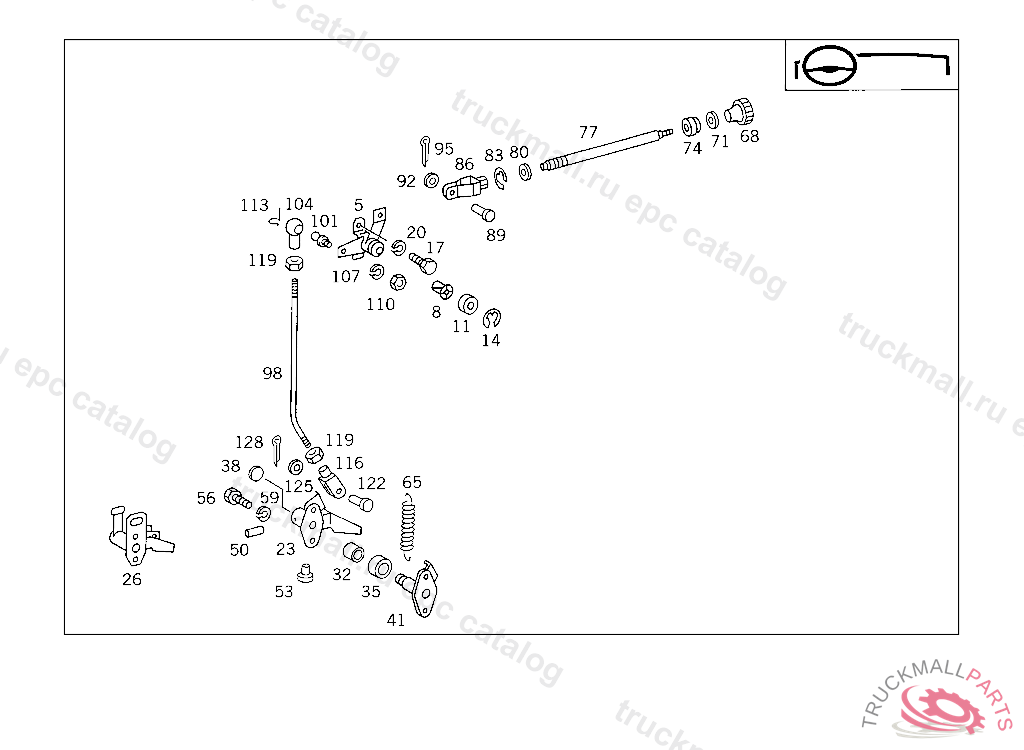

Поз.
Артикул
Описание
5
LEVER CONTROL
8
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
11
COVERING INTERMEDIATE BEARING
14
LOCK PLATE INTERMEDIATE BEARING
17
SCREW COVER PLATE TO COVER PLATE M 6 X 12
17
SCREW , Replaced By: N304017006018
20
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
23
LEVER (SHUT-OFF LEVER)
32
BUSHING ,950252
35
SEAL RING
38
EXPANSION PLUG
41
PIN
50
CYLINDRICAL PIN
53
GREASE NIPPLE
56
SCREW CLAMP TO BRACKET AND TO PIPE
59
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
SPRING RELEASE SPRING, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
68
KNOB , FROM CHASSIS: 023 009981 072 004629 073 001470
71
WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
74
DAMPING RING
77
SPINDLE ENGINE SHUT-OFF, FROM IDENT NO. 039910 EXCEPT FOR 301.225 WITH COUNTRY CODE 837 FROM IDENT NO. 039677 301.265 WITH COUNTRY CODE 837 FROM IDENT NO. 039677
80
WASHER PRECISION CONTROL
83
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
86
YOKE PRECISION CONTROL
89
PIN YOKE TO CONTROL LEVER
92
FITTED WASHER
92
WASHER , Replaced By: N000988008024
95
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
98
ROD FROM CONTROL LEVER TO SHUT-OFF LEVER
101
BALL STUD. BALL PIVOT ROD TO LEVER
104
BALL SOCKET ROD TO LEVER
107
LOCK WASHER BRACKET TO STEERING COLUMN END
110
NUT TACHOGRAPH TO BRACKET
113
CIRCLIP. SECURING CLIP CONTROL ROD
116
YOKE ROD TO LEVER
119
NUT TACHOGRAPH TO BRACKET
122
PIN YOKE TO SHUT-OFF LEVER,BOTTOM
125
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
125
WASHER FUSE
128
COTTER PIN CLAMP TO BATTERY CASE,PB004444
