Mercedes N304017008024 - БОЛТ М8

O 303 600.134

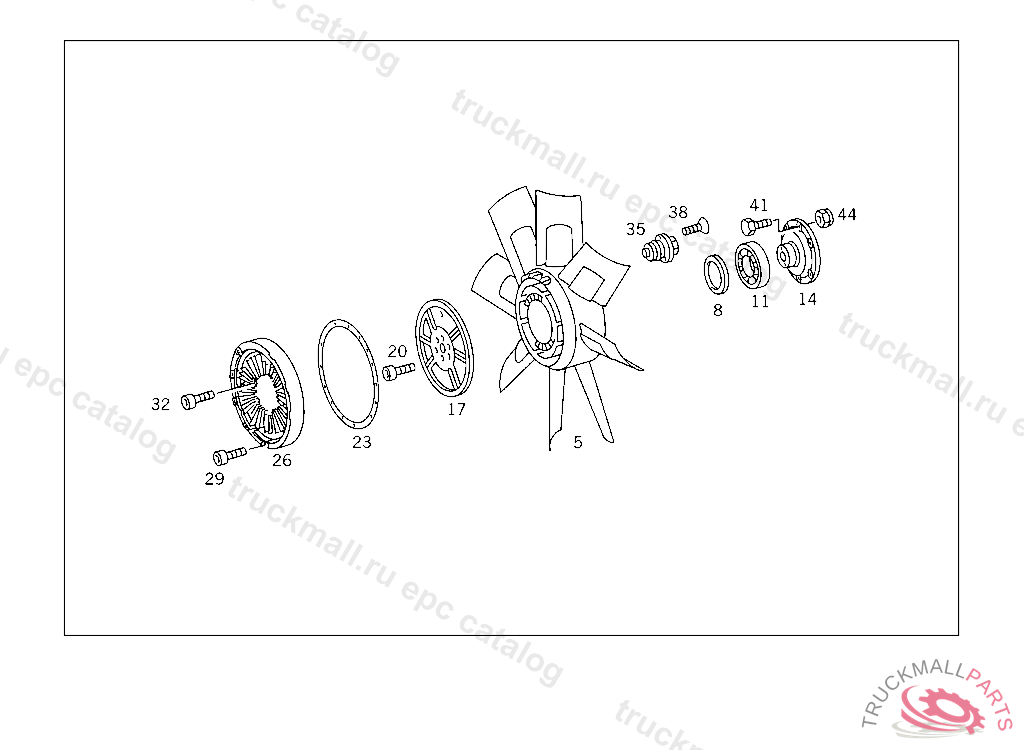

50 RADIATOR - 540 FAN DRIVE IL. 1

Поз.
Артикул
Описание
5
A0022056406
FAN WITH POWER SAVER FAN
5
A0022054406
FAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 064133, Replaced By: A0022056406
11
A0059814825
BALL BEARINGTO 002 205 19 06,63 06, TO BE ADAPTED DURING ASSEMBLY
17
A0002061228
PRIMARY CUP
26
A0002063503
COVERTO 002 205 44 06
41
N304017008024
SCREW BRACKET TO EXHAUST PIPE BRACKET
41
N000933008177
SCREW , Replaced By: N304017008024
44
N913004008005
NUT BRACKET TO SIDE MEMBER
999
A0002050073
LOCK AS REQUIRED 2.0 MM
999
A0002050173
LOCK AS REQUIRED 2.1 MM
999
A0002050273
LOCK AS REQUIRED 2.2 MM
999
A0002050373
LOCK AS REQUIRED 2.3 MM
999
A0005831835
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
