208/210 601.066

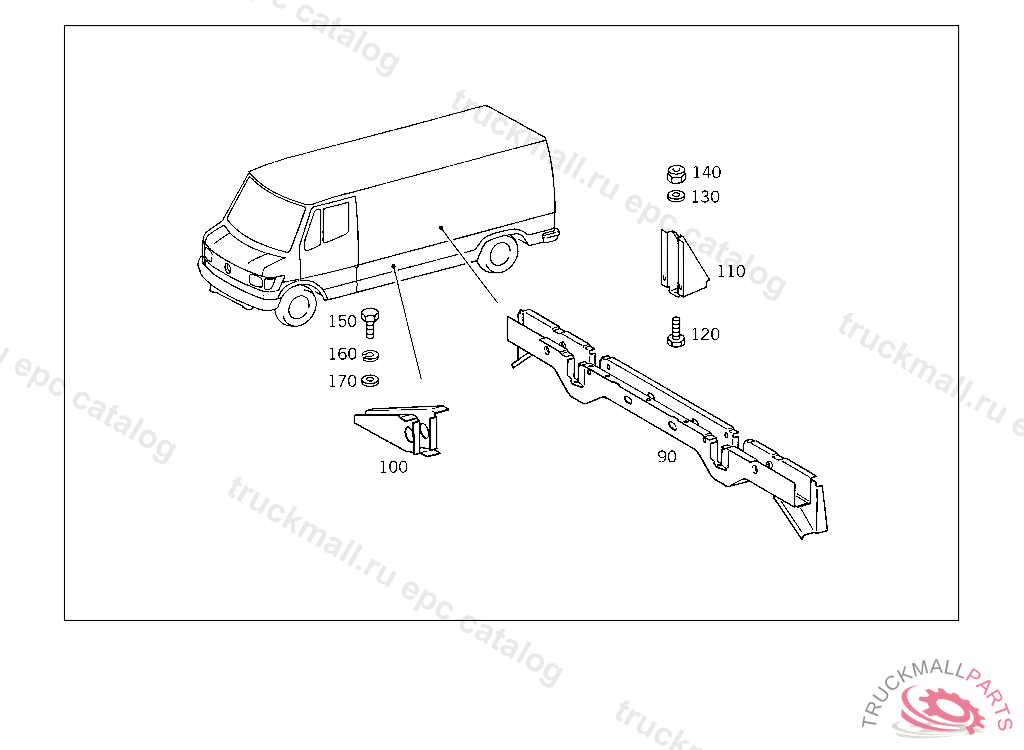

24 ENGINE SUSPENSION - 001 CHASSIS PARTS W/AUTO.TRANSMISSION IL.1

Поз.
Артикул
Описание
90
A6113102537
CROSS MEMBER
90
A6013102937
CROSS MEMBER , Replaced By: A6113102537
100
A6014700781
BRACKET FUEL SYSTEM,691934
110
A6014700281
BRACKET
120
N304017010002
SCREW BRACKET TO SIDE MEMBER
120
N000933010129
SCREW , Replaced By: N304017010002
130
N007349010003
WASHER , Replaced By: N007349010007
130
N007349010007
WASHER STRUT TO CROSS MEMBER
140
N913004010008
NUT , Replaced By: N910113010000
140
N910113010000
NUT STRAP TO BRACKET
150
N304017008033
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
160
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
170
A3129901940
WASHER
