Поз.
Артикул
Описание

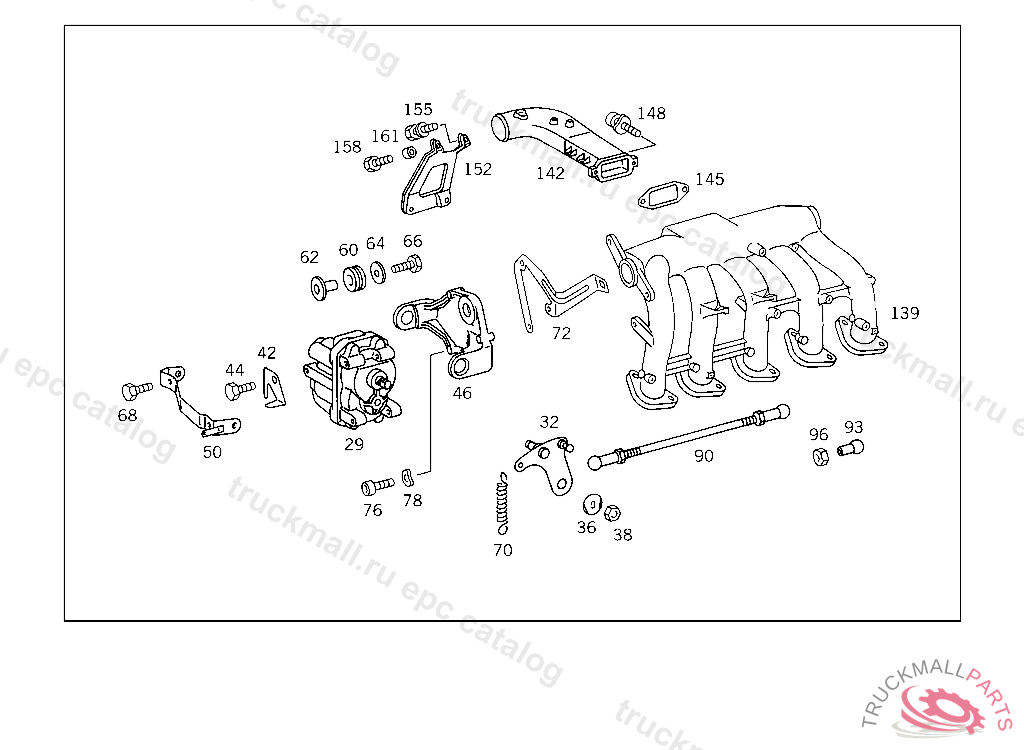

29
MOTOR FINAL CONTROL ELEMENT
32
LEVER
32
LEVER
36
LOCK
36
LOCK , Replaced By: A0009941310
38
NUT
38
NUT
42
STOP
44
SCREW FROM THERMOSTAT TO RADIATOR
44
SCREW BRACKET ON LOAD SENSOR
44
SCREW PUMP TO BRACKET
46
SUPPORT
50
BRACKET
60
GROMMET FINAL CONTROL ELEMENT TO BRACKET
62
SPACER ACTUATOR TO BRACKET, Replaced By: A0009923760
64
WASHER ACTUATOR TO BRACKET
66
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
66
SCREW BOX TO BODY
66
SCREW , Replaced By: N304017006012
68
SCREW FROM THERMOSTAT TO RADIATOR
68
SCREW PUMP TO BRACKET
68
SCREW BRACKET ON LOAD SENSOR
70
SPRING LEVER TO SUPPORT
70
SPRING ACCELERATOR PEDAL,B 838715,J 003393
72
BRACKET FINAL CONTROL ELEMENT TO INTAKE MANIFOLD
76
SCREW SPRING STOP
78
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
78
SPRING WASHER , Replaced By: N000137008212
90
ROD
90
ROD
93
BALL SOCKET
93
CONICAL CUPTO 102 070 09 75
93
BALL SOCKET , Replaced By: A0009918922
93
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
96
NUT , Replaced By: N304032005005
96
NUT IN CASE OF SUBSEQUENT INSTALLATION
139
INTAKE MANIFOLD
142
HOUSING MIXING CHAMBER
145
GASKET MIXER HOUSING TO INTAKE PIPE
148
COMBINATION BOLT COUPLER TO BRAKE CALIPER, A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
152
BRACKET
155
COMBINATION BOLT
155
COMBINATION BOLT , Replaced By: N304017006016
158
SCREW LICENSE PLATE TO BRACKET
161
SPACER TUBE BRACKET TO CYLINDER HEAD
999
BRACKET GUIDE TUBE BRACKET TO CYLINDER HEAD
999
LEVER (REVERSING LEVER)
999
INTAKE MANIFOLD
999
INTAKE MANIFOLD
999
INTAKE MANIFOLD
999
INTAKE MANIFOLD
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SCREW , Replaced By: N304017006016
