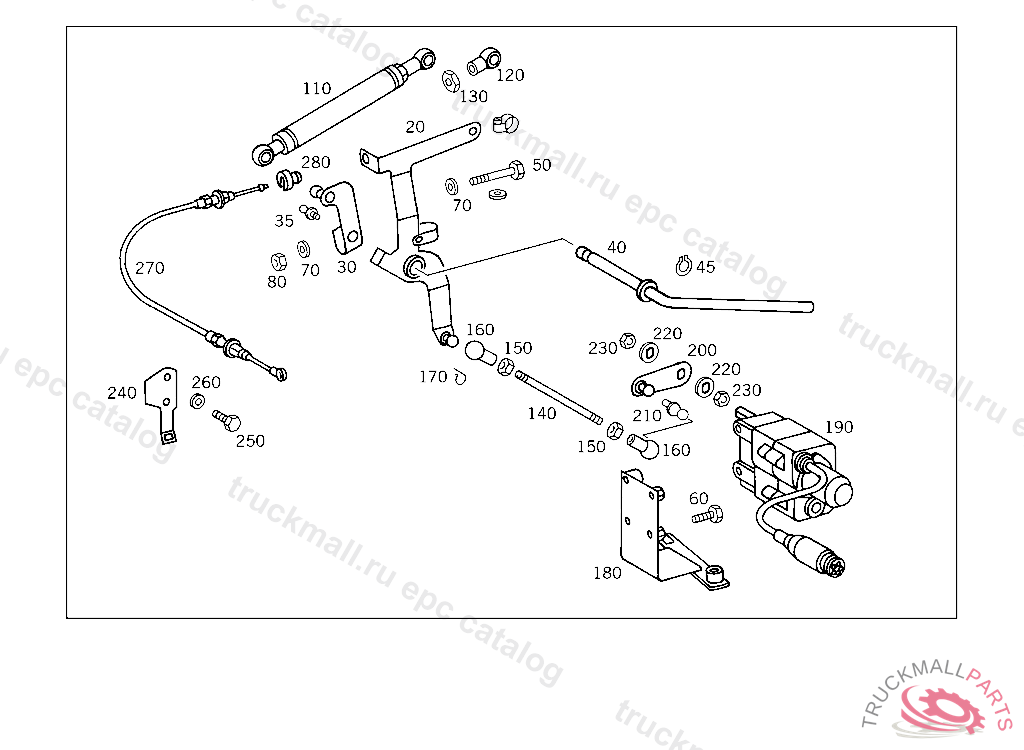

Поз.
Артикул
Описание
20
LEVER (DRAG LINK)
30
LEVER CONTROL
35
BALL STUD. BALL PIVOT TOP B10X4,5 MM
40
LEVER PEDAL
45
RETAINING RING CONTROL SHAFT TO CAB,5 188249
50
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
60
SCREW PUMP TO BRACKET
60
SCREW , Replaced By: N304017006016
70
WASHER SWITCH TO FIRE WALL
80
NUT , Replaced By: N913004006001
80
NUT PUMP TO BRACKET
110
ROD AT CONTROL LEVER
120
BALL SOCKET PUSH ROD, FROM IDENT NO. 556500 ALSO INSTALLED ON: 543411,543418,551588,551771,552021,552392,552551,552654,552687,552840,552846,553000,553005,553105, 553112,553264,553332,554081,554103,554213,554266,554270,554993,555186,555885,555992,556138,556169, 556181,556184,556187,556189,556194-556197,556215.
130
NUT BATTERY CABLE MOUNTING,5 193595
130
NUT BATTERY CABLE TO CABLE CONNECTOR,5 193595
140
PULL ROD , Replaced By: A1190702675
140
ROD AT CONTROL LEVER
150
NUT CLAMP TO BRACKET
160
END PIECE , Replaced By: A0009918822
170
SNAP RING. BALL SOCKET
180
BRACKET AT FIRE WALL
190
MOTOR AT FIRE WALL
200
LEVER
210
BALL STUD. BALL PIVOT TOP B10X4,5 MM
220
LOCK , Replaced By: A0009941310
230
NUT
240
BRACKET IGNITION COIL
250
SCREW LICENSE PLATE TO BRACKET
250
SCREW , Replaced By: N304017006020
260
WASHER SWITCH TO FIRE WALL
270
WIRE CABLE FROM CONTROL LEVER TO ENGINE
280
BUSHING CONTROL LEVER,B 892892
999
ACCELERATOR PEDAL (ACCELERATOR PEDAL CONTROL ROD)
999
LEVER (CONTROL LEVER), FROM IDENT NO. 941506 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE P 000001
999
ROD FROM CONTROL LEVER TO REVERSING LEVER
999
ROD
