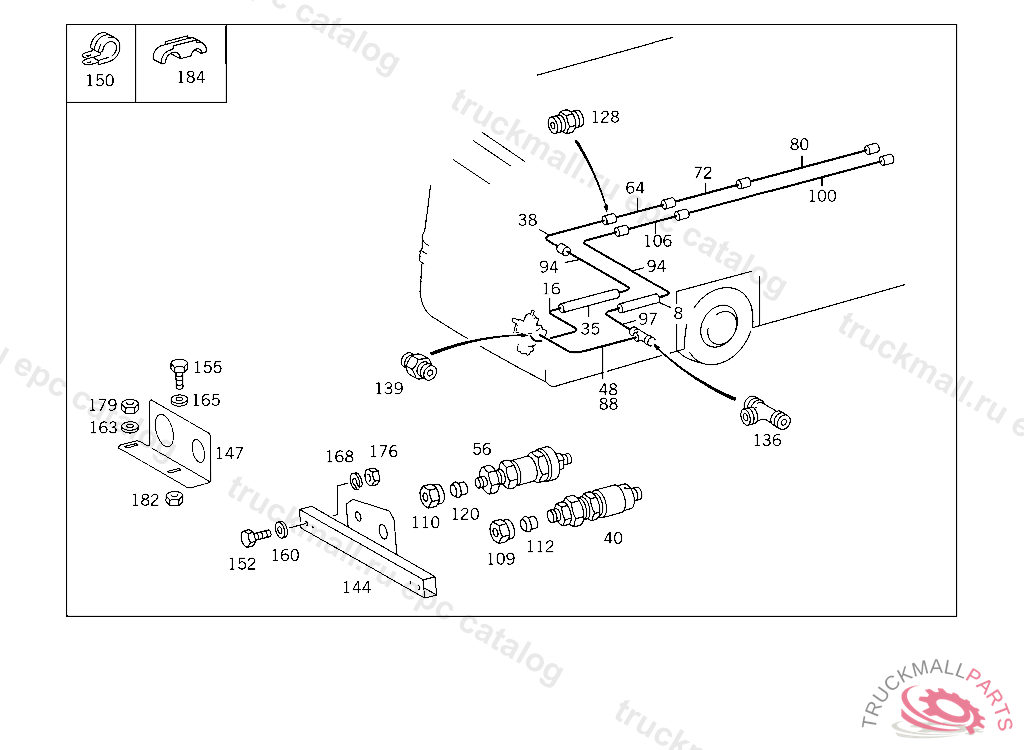

Поз.
Артикул
Описание
8
HOSE LOW PRESSURE
16
LINE FROM STEERING GEAR TO CONNECTOR I
16
LINE FROM STEERING TO OIL TANK
35
LINE LOW PRESSURE HOSE
38
LINE FROM CONNECTOR I TO CONNECTOR II
40
COUPLING PIPE LINE
48
HOSE HIGH PRESSURE
48
HOSE HIGH PRESSURE
56
COUPLING PIPE LINE
64
LINE FROM CONNECTOR IV TO CONNECTOR V
64
LINE FROM CONNECTOR IV TO CONNECTOR V
72
LINE FROM CONNECTOR TO T-FITTING
72
LINE FROM CONNECTOR TO T-FITTING
80
LINE FROM HIGH PRESSURE LINE TO COUPLING
80
LINE FROM HIGH PRESSURE LINE TO COUPLING
88
LINE FROM LINE COUPLING TO HYDRAULIC POWER STEERING
88
LINE FROM TEST CONNECTION TO STEERING GEAR,074189
88
LINE FROM TEST CONNECTION TO STEERING GEAR,074188
94
LINE FROM CONNECTION FITTING TO HOSE
94
LINE FROM CONNECTION FITTING TO HOSE
97
LINE TOWARDS TEST CONNECTION
100
LINE CONNECTION, V TO STEERING GEAR
106
LINE FROM LOW PRESSURE HOSE TO CONNECTOR XII
106
LINE FROM FITTING TO CONNECTOR "XII"
109
NUT LINE CONNECTION
109
UNION NUT LINE CONNECTION, Replaced By: N000000006243
110
UNION NUT LINE MOUNTING
110
UNION NUT LINE CONNECTION
112
GLAND , Replaced By: A0019901267
120
GLAND LINE CONNECTION
120
SEAL CONE LINE MOUNTING
120
GLAND , Replaced By: A0019901167
128
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
136
FITTING STEERING GEAR DELIVERY LINE,CIRCUIT II
139
FITTING AT STEERING GEAR
139
FITTING , Replaced By: A0019901770
144
BRACKET , Replaced By: A3574660540
144
BRACKET , Replaced By: A3574660640
144
BRACKET LINES TO BRACKET
147
BRACKET LINE TO SUBSTRUCTURE
150
CLAMP LINE MOUNTING
150
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
152
SCREW VALVE TO BRACKET
152
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
SCREW , Replaced By: N304017008016
155
SCREW CAB FLOOR COVERING M 6X25
160
WASHER EXHAUST MUFFLER TO STRAP
160
WASHER , Replaced By: N000125008443
163
WASHER , Replaced By: N009021008213
163
WASHER BRACKET TO LEFT SIDE MEMBER
165
WASHER COMPRESSED AIR LINE TO BRACKET
165
WASHER , Replaced By: N009021006208
168
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
176
NUT
179
NUT , Replaced By: N913004008001
182
NUT , Replaced By: N913004006001
182
NUT PUMP TO BRACKET
184
BRACKET LINE TO SUBSTRUCTURE
999
FITTING
999
GROMMET , Replaced By: A3579880227
999
LINE FROM STEERING GEAR TO CONNECTOR X,079427
999
LINE FROM TEST CONNECTION TO STEERING GEAR
999
LINE FROM CONNECTOR IX TO TEST CONNECTION,079428
999
LINE FROM CONNECTOR X TO CONNECTOR XI,079428
999
LINE FROM CONNECTOR XI TO CONNECTOR XII
999
LINE
999
LINE
999
LINE
999
LINE FROM STEERING GEAR TO CONNECTOR I 22 MM
999
LINE FROM HIGH PRESSURE LINE TO COUPLING
999
LINE
999
LINE
999
LINE FROM STEERING GEAR TO TEST CONNECTION,074188
