Mercedes N304017006016 - Винт M 6 X 16 8.8

O 405 GN 612.524

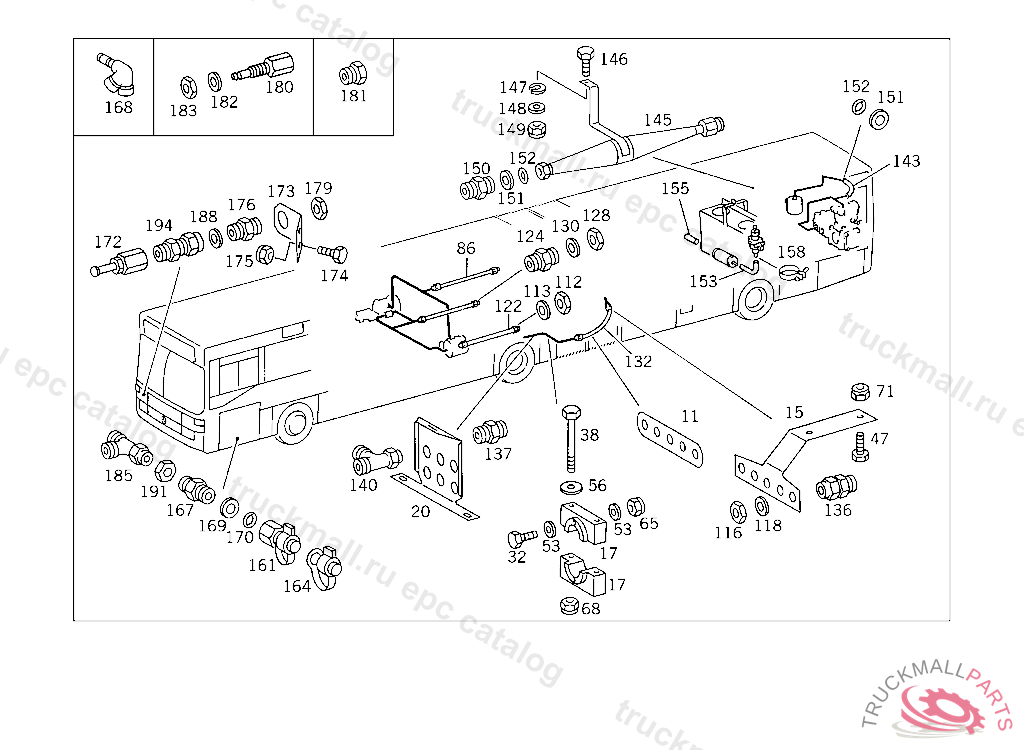

32 SPRINGS AND SUSPENSION - 001 TEST CONNECTIONS USED FOR PNEUMATIC SUSPENSION

Поз.
Артикул
Описание
47
N000933008154
SCREW , Replaced By: N304017008021
47
N304017008021
SCREW PIPE CLAMP
47
N000933008147
SCREW , Replaced By: N304017008021
56
N009021006205
WASHER , Replaced By: N009021006208
56
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
68
N913004006001
NUT PUMP TO BRACKET
68
N913004006002
NUT , Replaced By: N913004006001
71
N913004008004
NUT , Replaced By: N913004008001
86
A0004298735
BRAKE HOSE BETWEEN THE LINES
112
N080705022002
NUT INTERMEDIATE SPEED STOP
113
N000125023006
WASHER
116
N080705018002
NUT BRACKET TO SIDE MEMBER
118
N000125019009
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
124
A0019972772
FITTING HYDRAULIC LINE TO BRACKET,K 130132
128
N080705014002
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
130
N000125015019
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
130
N000125015013
WASHER , Replaced By: N000125015019
143
A0014290735
BRAKE HOSE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
145
A3574300170
MUFFLER AT AIR COMPRESSOR
146
N304017008021
SCREW PIPE CLAMP
146
N000933008147
SCREW , Replaced By: N304017008021
148
N009021008205
WASHER , Replaced By: N009021008213
148
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
148
N000000003250
WASHER BRACKET TO CAB REAR PANEL
149
N913004008004
NUT , Replaced By: N913004008001
150
N003902015002
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
161
A0004316131
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
161
A0004312031
TEST CONNECTION
161
A0004314831
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
161
A0004314531
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
164
A0009979486
PLUG
167
A0009977172
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
167
A0029978172
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
168
A0079970372
FITTING TEST CONNECTIONS
168
A0004297234
ADAPTER FITTING TEST CONNECTION
169
A0004290927
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
169
N007603016401
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
A0009971548
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
172
A0004310731
TEST CONNECTION
173
A3574290740
BRACKET TEST CONNECTION
174
N304017006016
SCREW PUMP TO BRACKET
174
N000933006183
SCREW , Replaced By: N304017006016
175
N913004006002
NUT , Replaced By: N913004006001
175
N913004006001
NUT PUMP TO BRACKET
176
A0069972272
FITTING AT BRACKET
179
N080705014002
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
180
A0029971289
COUPLING MUFFLER TO SUBSTRUCTURE
181
A0009973734
SCREW. UNION SCREW LINE CONNECTION
181
A0009970834
SCREW. UNION SCREW , Replaced By: A0009973734
181
A0009970934
SCREW. UNION SCREW LINE CONNECTION
182
N000125019009
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
183
N080705018002
NUT BRACKET TO SIDE MEMBER
185
A0019900170
T-FITTING EXHAUST-BRAKE POWER CYLINDER
188
N000125013008
WASHER
191
N080705012003
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
