Поз.
Артикул
Описание

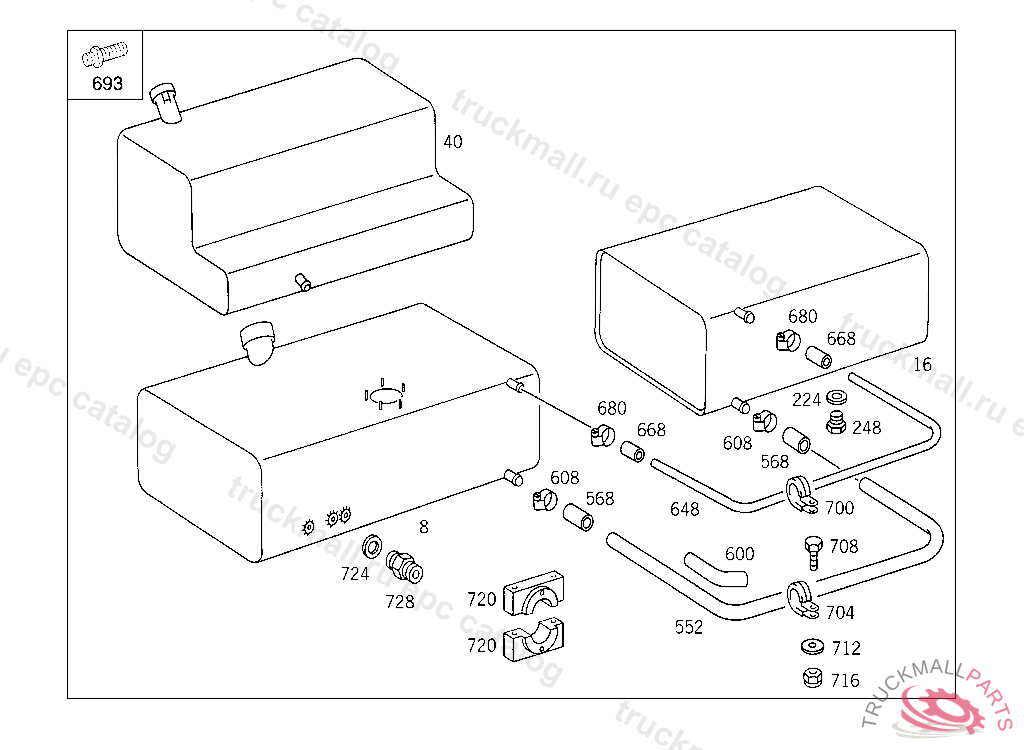

8
FUEL TANK220 L,050329
8
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 049579, Replaced By: A3574705501
8
FUEL TANK , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 046030, Replaced By: A3574704701
8
FUEL TANK220 L
8
FUEL TANK LESS SENDER UNIT 220 L
8
FUEL TANK228 L
16
FUEL TANK , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 046030, Replaced By: A3574704901
16
FUEL TANK LESS SENDER UNIT 114 L
16
FUEL TANK ADDITIONAL FUEL TANK 110 L
16
FUEL TANK ADDITIONAL FUEL TANK 76 L
40
FUEL TANK LESS SENDER UNIT 397 L
224
SEAL RING LINE CONNECTION
248
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
552
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 046030, Replaced By: A3574710323
552
LINE FROM FUEL TANK TO FUEL TANK
552
LINE FROM FUEL TANK TO FUEL TANK, FROM IDENT NO.064506 ALSO INSTALLED ON 060201,060256,060299,060322,060344,060552,064016.
568
HOSE FROM FUEL TANK TO FUEL TANK
568
HOSE CONNECTION OF FUEL TANKS
568
HOSE , Replaced By: A3574760926
568
HOSE , Replaced By: A3574760926
600
HOSE , Replaced By: A3564760026
600
HOSE PLASTIC PIPE
608
CLAMP BREATHER PIPE TO FUEL TANK
608
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
608
CLAMP25-40X13 MM
648
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 046030, Replaced By: A3574710223
648
LINE FROM FUEL TANK TO FUEL TANK
668
HOSE CONNECTION OF FUEL TANKS
680
CLAMP25-40X13 MM
680
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
693
FITTING CONNECTION OF FUEL LINES,039060 307.100035886 307.101
700
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
704
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
704
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
704
CLAMP SAFETY VALVE AT BRACKET
708
SCREW , Replaced By: N304017008034
708
SCREW BRACKET TO CROSS CONNECTION STRUT
708
SCREW SHUT-OFF VALVE TO BRACKET
712
WASHER BRACKET TO LEFT SIDE MEMBER
716
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
716
NUT , Replaced By: N913004008001
720
BRACKET AT SUPPORT
724
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
728
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
999
SENDER UNITTO 612 470 32 01
999
LINE FROM FUEL TANK TO FUEL TANK
999
FUEL TANK
999
FUEL TANK
999
FUEL TANK LESS SENDER UNIT 190 L,093523
999
HOSE
999
HOSE FROM FUEL TANK TO ADDITIONAL TANK
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
FUEL TANK
999
FUEL TANK
999
FUEL TANK (FUEL-OIL TANK),075828
999
FUEL TANK LESS SENDER UNIT 270 L,075828
999
FUEL TANK (FUEL-OIL TANK)
999
FUEL TANK265 L
999
FUEL TANK
999
FUEL TANK (FUEL-OIL TANK)
999
FILLER NECK
999
FUEL TANK
999
STRAP
999
FUEL TANK LESS SENDER UNIT 76 L
999
STRAP
999
INSULATION AERATION/DEAERATION
999
GASKETTO 612 470 22 01
999
GASKET EXTRACTION OPENING FOR FUEL OIL,075828
