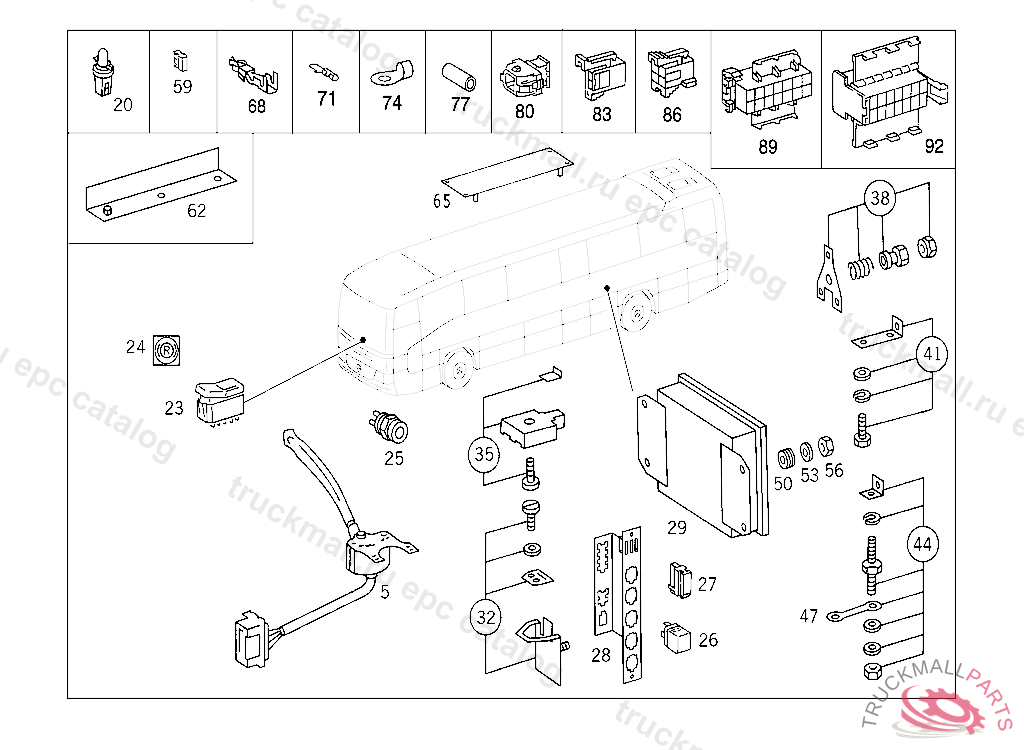

Поз.
Артикул
Описание
5
SWITCH (STEP SWITCH)
5
SWITCH , Replaced By: A0015403545
20
BULB24 V
23
SWITCH PERMANENT CURRENT CUTOFF
24
LENS ROCKER SWITCH
25
SWITCH RETARDER STAGE II 0.3 BAR
25
SWITCH RETARDER STAGE III
26
RELAY , Replaced By: A0035459605
26
RELAY ELECTRICAL COMPARTMENT G/K 1
26
RELAYA33, Replaced By: A0009822123
26
RELAY , Replaced By: A0035459605
27
DIODE ,K 182153
28
BRACKET MODULE "G"
29
RELAY BOX TELMA BRAKE
29
RELAY BOX TELMA BRAKE
32
BRACKET , Replaced By: A0005450463
35
BRACKET
38
CONTACT BREAKER POINT , Replaced By: A0005450463
38
CONTACT
41
CONTACT BREAKER POINT
44
CONTACT BREAKER POINT
47
LOCK
50
GROMMET FOR PASSAGE OF LINE
53
WASHER HANDLE TO FENDER
56
NUT BALL SOCKET TO ROD
59
FUSE MODULE 7.5 A
59
FUSE , Replaced By: N072581000303
62
BRACKET TELMA BRAKE
65
BRACKET TELMA BRAKE
68
CONTACT SPRING0,5 - 1,0 MM2
71
PLUG BIPOLAR 2,8 MM2
74
CABLE SHOE
74
CABLE SHOE. CABLE LUGH2.11/12, A4-2.5 TO 0045424420 / 4520
74
CABLE SHOE
74
CABLE SHOE BATTERY CABLE
74
CABLE SHOE
77
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
77
GROMMET1.75 MM
77
GROMMET
80
PLUG HOUSING BIPOLAR
83
PIN BUSHING HOUSING BIPOLAR
86
PIN BUSHING HOUSING 4-POLE
89
PLUG HOUSING 14-POLE
92
PIN BUSHING HOUSING 14-POLE
999
INSTRUMENT CLUSTER TELMA BRAKE
999
CABLE HARNESS , WHEN ORDERING CABLE HARNESSES STATE THE FOLLOWING: VEHICLE, IDENT. NO., INSTALLATION LOCATION/FUNCTION,AND/OR THE HARNESS NUMB ER ON THE HARNESS OR THE PART NUMBER
