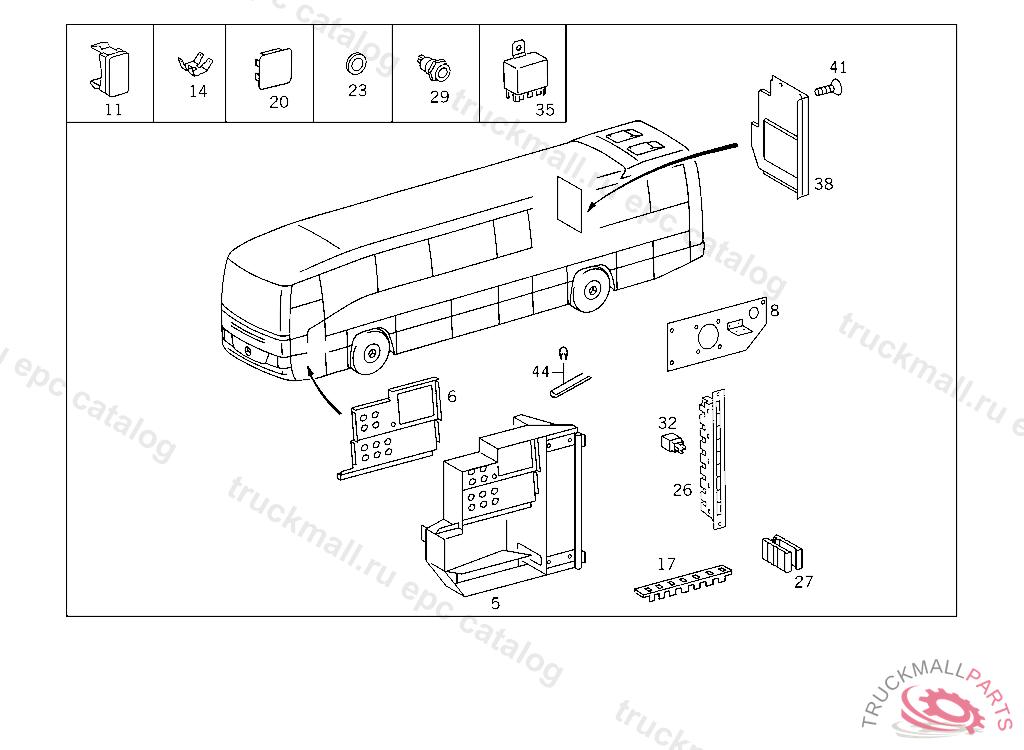

Mercedes A3568201012 - ZB ABDECKUNG E-FACH

O 404 614.435 FROM IDENT-NO. 069375

82 ELECTRICAL SYSTEM - 001

Поз.
Артикул
Описание
5
A3568200143
APPARATUS PANEL ELECTRICAL COMPARTMENT
6
A3568200343
APPARATUS PANEL
6
A3568201143
APPARATUS PANEL
8
A3568200911
PLATE
8
A3568200811
PLATE
11
A3575420090
BLIND CAP OPERATING UNIT
14
A0125451428
PLUG MULTIWAY CONNECTOR
14
A0265459928
PLUG , Replaced By: A0125451428
17
A0005480167
DIODE BOX'A61'
20
A3578270039
COVER TO PLUG THE FREE HOLES USED FOR RELAY
23
A0009873644
EXPANSION PLUG ,070362
26
A0015457201
FUSE BOX ELECTRICAL COMPARTMENT "A4",070362
26
A0015453601
FUSE BOX APPARATUS PLATE
26
A0015454701
FUSE BOX
27
A0005810554
PLIERS FUSE ELEMENT
29
A0015458526
PLUG SOCKET HAND LAMP
32
A0015455405
RELAY AT APPARATUS PLATE 50 A
35
A0008214847
RELAYK 473,080604
38
A3568201112
COVERING ELECTRICAL COMPARTMENT
38
A3568201012
COVERING ELECTRICAL COMPARTMENT
41
N000965006024
SCREW ELECTRICAL COMPARTMENT COVERING M 6X20
44
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
A3568200915
ELECTRIC CABLE , WHEN ORDERING CABLE HARNESSES STATE THE FOLLOWING: VEHICLE, IDENT. NO., INSTALLATION LOCATION/FUNCTION,AND/OR THE HARNESS NUMB ER ON THE HARNESS OR THE PART NUMBER
