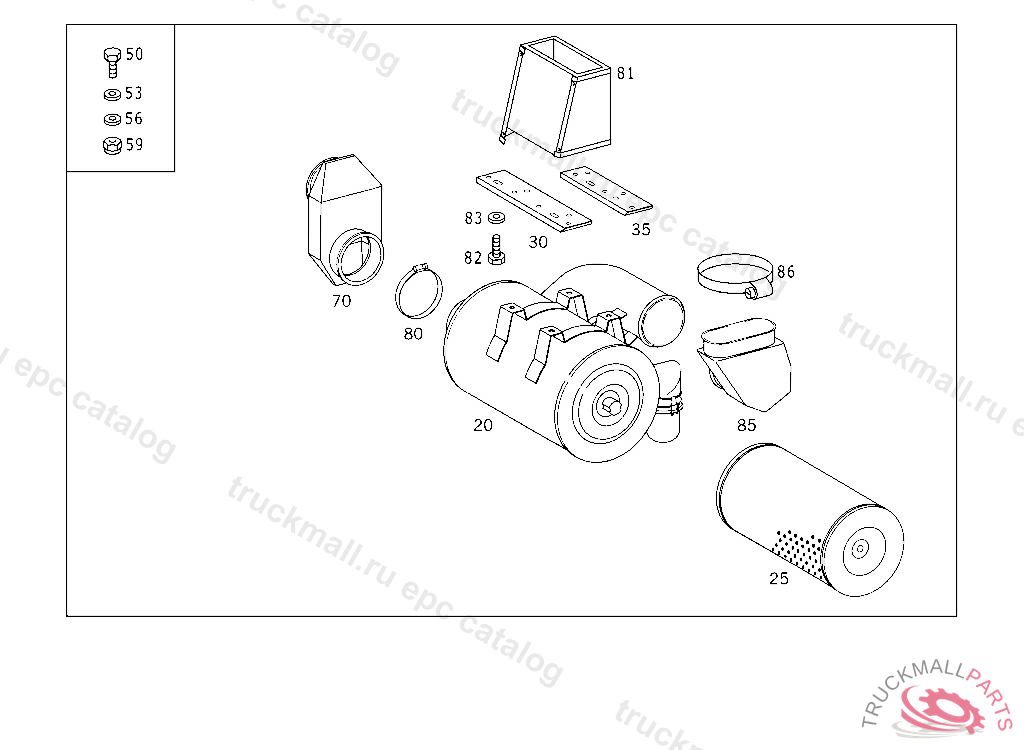

Поз.
Артикул
Описание
20
AIR CLEANER
25
FILTER ELEMENT
30
SUPPORT FRONT
35
SUPPORT REAR
50
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SCREW , Replaced By: N304017008016
53
WASHER EXHAUST MUFFLER TO STRAP
53
WASHER , Replaced By: N000125008443
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
NUT , Replaced By: N913004008001
70
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE INTAKE PIPE
70
AIR INTAKE PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6005280008
80
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
80
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
80
CLAMP , Replaced By: N000000000678
81
COVERING AIR INTAKE PIPE
82
SCREW PUMP TO BRACKET
83
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
85
HOSE AIR CLEANER AND AIR INTAKE PIPE
85
HOSE AIR CLEANER AND AIR INTAKE PIPE
85
HOSE AIR CLEANER AND AIR INTAKE PIPE
86
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
86
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017006016
999
SCREW , Replaced By: N304017008018
999
FILLER CAP , Replaced By: A3094700005
999
HOSE , Replaced By: A3025280082
999
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE INTAKE PIPE
999
AIR INTAKE PIPE , Replaced By: A3005280208
999
AIR INTAKE PIPE , Replaced By: A3005280108
999
HOSE
999
STAY RIGHT BOTTOM
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER , Replaced By: A0110947002
999
LOOM TIE , Replaced By: N916017160000
999
LOOM TIE
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
999
RECEPTACLE , Replaced By: A0005831835
