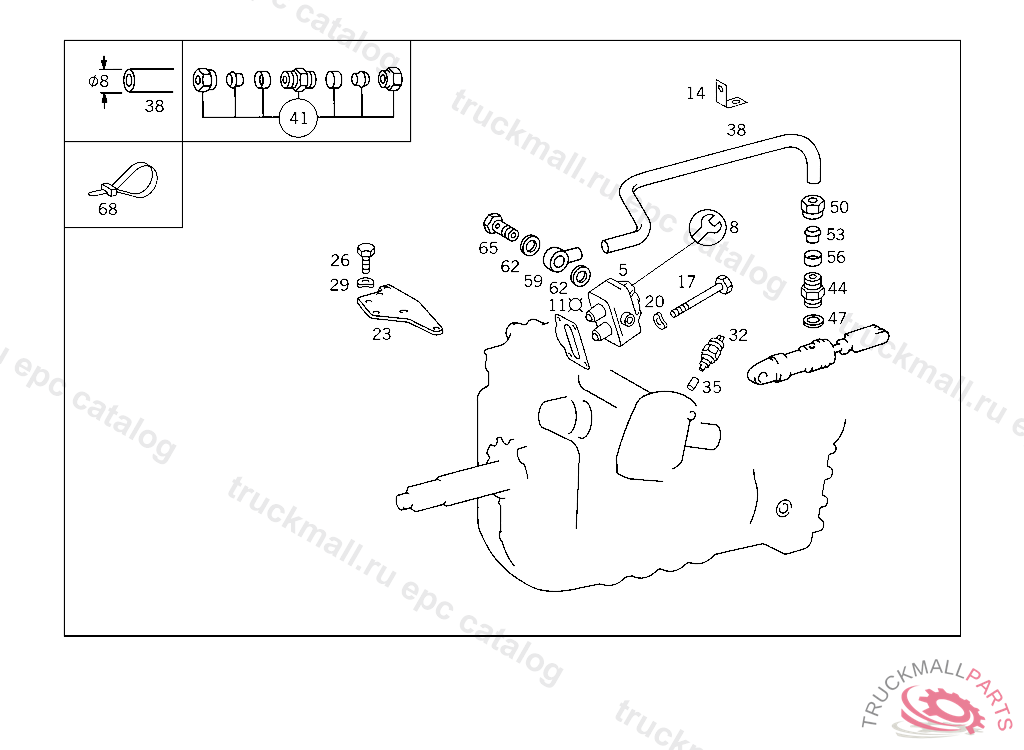

Поз.
Артикул
Описание
5
VALVE , Replaced By: A0012608457
5
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0012603557
5
VALVE , Replaced By: A0012603557
5
VALVE , Replaced By: A0012604757
8
REPAIR KIT 3/2-WAY VALVE TO 000 260 54 57
11
GASKET , Replaced By: A3852680380
11
GASKET VALVE TO BEARING COVER INTERLOCK
14
BRACKET HOSE LINE TO TIMING CASE
17
SCREW VALVE TO COVER M 8X55,TO 000 260 54 57
17
SCREW VALVE TO COVER M 8X65,TO 000 260 58 57,001 260 35 57
20
SPRING WASHER , Replaced By: N000137008212
23
BRACKET TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE,021342
26
SCREW LINE MOUNTING M 8X45
26
SCREW , NOT USED
29
SPRING WASHER , Replaced By: N000137008212
32
SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 360728, Replaced By: A0005457909
32
SWITCH , Replaced By: A0005459009
35
PIN STARTING LOCK
35
PIN , Replaced By: A3852682974
38
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
41
FITTING (PARTS KIT),LINE RUPTURE
41
FITTING , Replaced By: A0029905971
44
FITTING LINE CONNECTION, Replaced By: N000000006446
47
SEAL RING LINE CONNECTION
50
UNION NUT LINE CONNECTION
53
GLAND LINE CONNECTION
56
SLEEVE LINE CONNECTION
59
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
59
BANJO UNION , Replaced By: N915052006013
62
SEAL RING
62
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
65
HOLLOW SCREW HEATING CONNECTION
68
LOOM TIE LINE MOUNTING 280 MM
