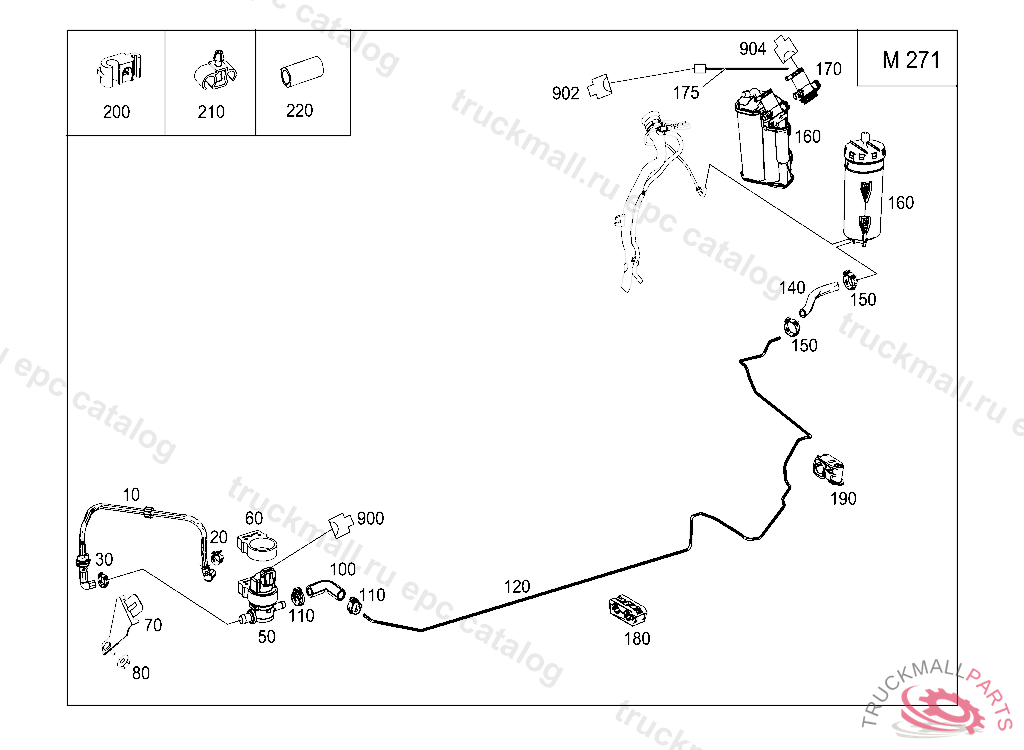

Поз.
Артикул
Описание
10
PURGE LINE ENGINE TO REGENERATION VALVE
20
SPRING HOSE CLAMP PURGE LINE TO INTAKE MANIFOLD
30
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
50
PURGE VALVE
50
PURGE VALVE , Replaced By: A0004708593
50
PURGE VALVE
60
BRACKET REGENERATION VALVE
70
BRACKET PURGE VALVE TO LONGITUDINAL MEMBER
80
NUT , Replaced By: N913023006001
100
LINE PURGE VALVE TO PURGE LINE
110
HOSE CLAMP FUEL LINE TO FUEL FILTER
120
PURGE LINE
120
PURGE LINE
120
PURGE LINE , L 11590120100626
120
PURGE LINE , L 11590220100626
140
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, FROM MODEL YEAR '98
140
HOSE PURGE LINE TO ACTIVATED CHARCOALFILTER
150
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
160
ACTIVATED CHARCOAL FILTER
160
ACTIVATED CHARCOAL FILTER
160
ACTIVATED CHARCOAL FILTER , A 87779820051031806 E 02000020070101806
170
SHUT-OFF VALVE
170
VALVE SHUTOFF VALVE ACTIVATED-CARBON FILTER, A 12562420080115 F 14570720080115 R 01906320080115
170
VALVE SHUT-OFF VALVE
175
WIRING HARNESS SHUTOFF VALVE ADAPTER LINE TO A 000 470 71 93
180
LINE HOLDER FUEL LINE TO FIREWALL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0049958277
190
LINE HOLDER FUEL LINE MOUNTING
200
LINE HOLDER FUEL LINE MOUNTING
200
LINE HOLDER FUEL LINE MOUNTING, Replaced By: A0029951677
210
BRACKET FUEL LINE MOUNTING
220
HOSE FROM FEED LINE TO FILTER 240 MM
900
HOUSING SHUTOFF VALVE ACTIVATED-CARBON FILTER 2-PIN SLK2.8,Y58/1
902
PLUG HOUSING BRAKE LINING WEAR INDICATOR
904
CONNECTOR HOUSING SHUTOFF VALVE ACTIVATED-CARBON FILTER 2-PIN 0.40,Y58/4
